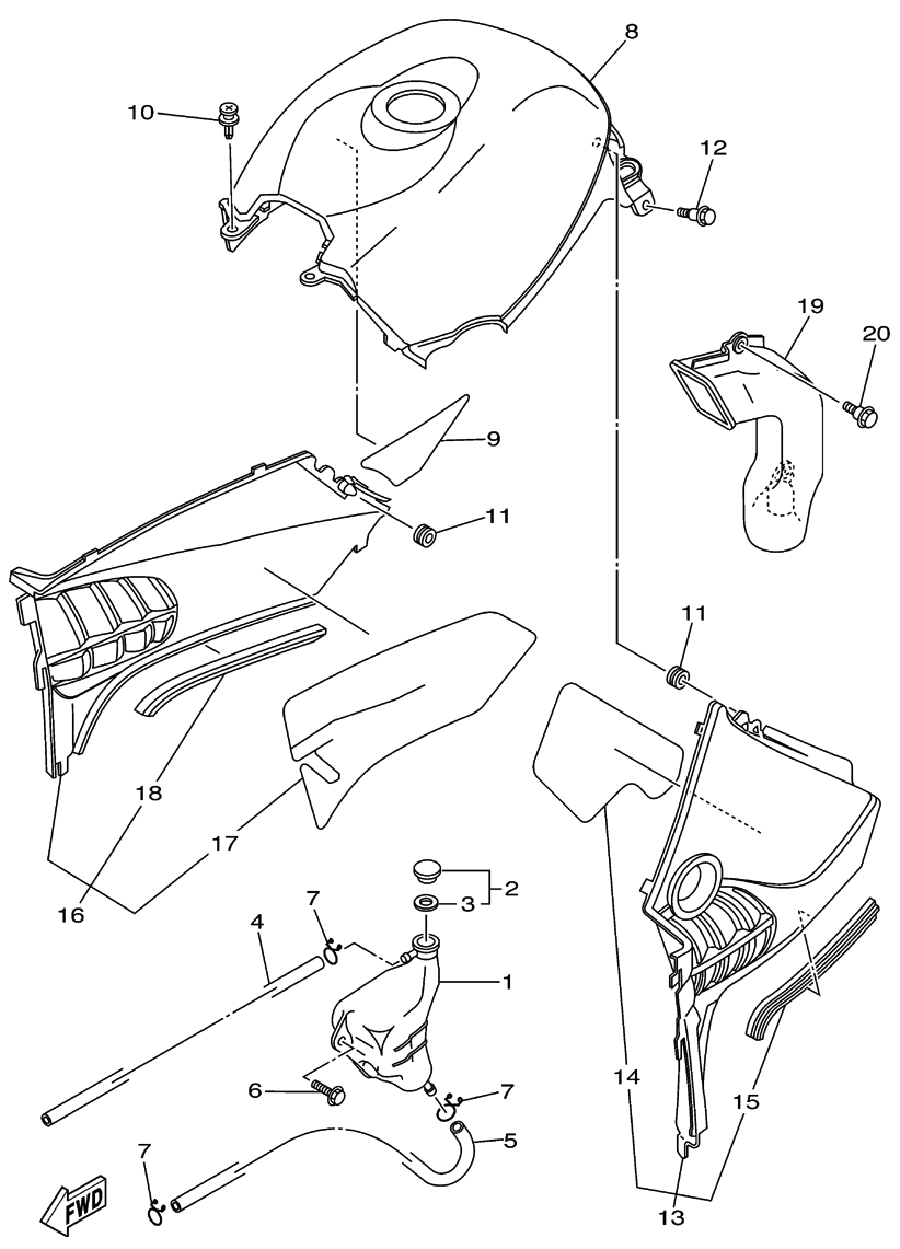

SIDE COVER для Yamaha GRIZZLY 660 4x4 DUCKS UNLIMITED EDITION YFM66FAHDV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21AA-21815-00-00 CAPCAP
-
31AA-21874-00-00 ...GASKET...GASKET
-
490445-096F4-00 HOSE (L870)HOSE (L870)
-
590445-09635-00 HOSE (L910)HOSE (L910)
-
690119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
85KM-2171A-H0-00 COVER, TOPCOVER, TOP
-
95KM-2174M-10-00 CLOTH, PROTECTORCLOTH, PROTECTOR
-
1090269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
1190480-13567-00 GROMMETGROMMET
-
1290109-063F1-00 BOLTBOLT
-
135KM-21710-10-00 SIDE COVER ASSY. 1SIDE COVER ASSY. 1
-
145KM-2174A-20-00 ...INSULATOR, SIDE COVER...INSULATOR, SIDE COVER
-
155KM-2171L-00-00 ...MOLE, SIDE COVER 1...MOLE, SIDE COVER 1
-
165KM-21720-10-00 SIDE COVER ASSY. 2SIDE COVER ASSY. 2
-
175KM-2174T-20-00 ...INSULATOR, SIDE COVER 2...INSULATOR, SIDE COVER 2
-
185KM-2171L-00-00 ...MOLE, SIDE COVER 1...MOLE, SIDE COVER 1
-
195KM-21557-00-00 DUCT, AIRDUCT, AIR
-
2090109-063F1-00 BOLTBOLT
