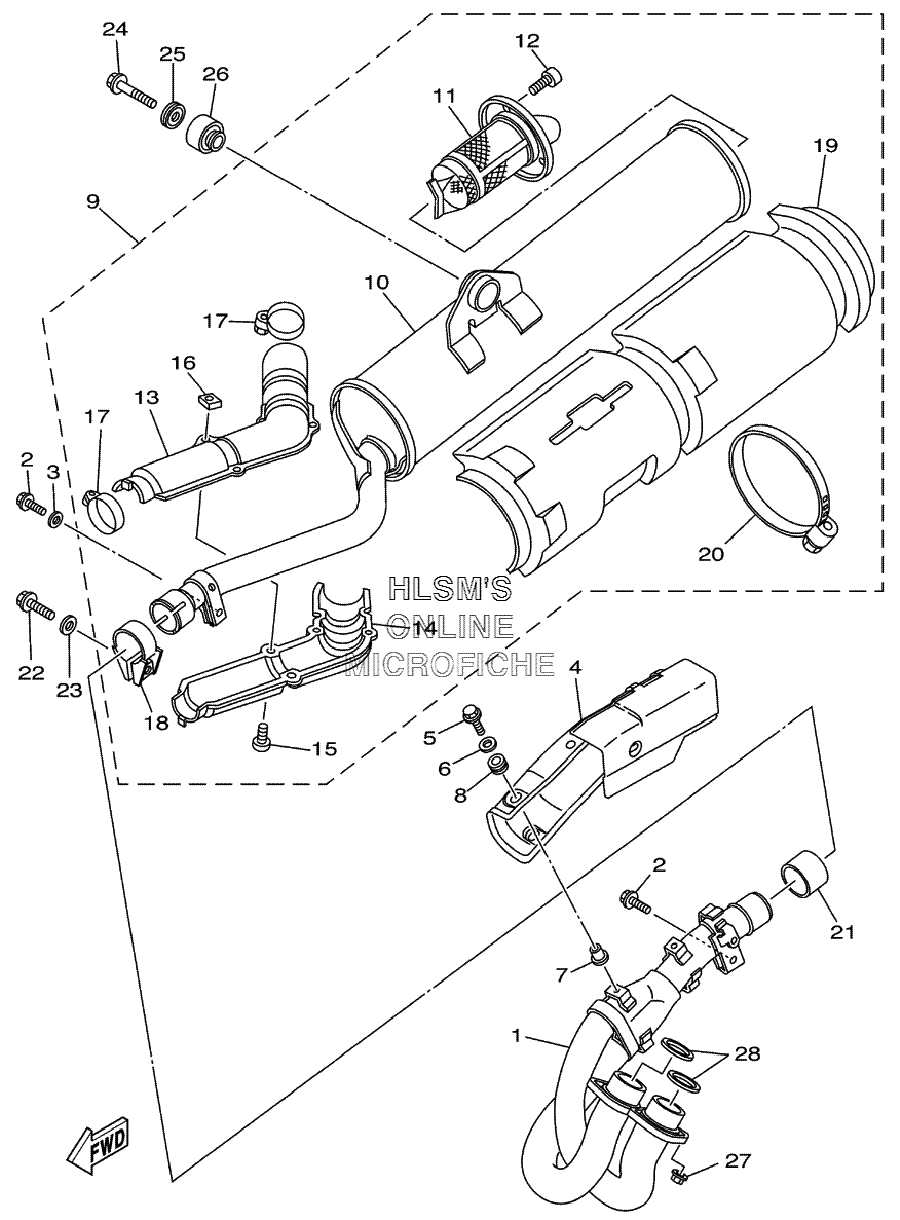

EXHAUST для Yamaha GRIZZLY 660 4x4 YFM66FAV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-14611-10-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
295817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
390201-06778-00 WASHER, PLATEWASHER, PLATE
-
45KM-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
595827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
690201-06778-00 WASHER, PLATEWASHER, PLATE
-
790387-061V4-00 COLLARCOLLAR
-
890480-01009-00 GROMMETGROMMET
-
95KM-14711-10-00 MUFFLER 1MUFFLER 1
-
105KM-14721-00-00 ...MUFFLER 1...MUFFLER 1
-
115KM-14752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
1291380-06010-00 ...BOLT...BOLT
-
135KM-14718-10-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
145KM-14728-10-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
1598507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1690173-06015-00 ...NUT, SQUARE...NUT, SQUARE
-
1790450-32008-00 ...HOSE CLAMP ASSY....HOSE CLAMP ASSY.
-
185KM-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
195KM-14738-00-00 ...PROTECTER, MUFFLER 3...PROTECTER, MUFFLER 3
-
205KM-14788-00-00 ...BAND, SILENCER...BAND, SILENCER
-
213YF-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
2295817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-086J0-00 WASHER, PLATEWASHER, PLATE
-
2495807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
2590209-08249-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
265KM-27414-01-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
2790179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
283YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
