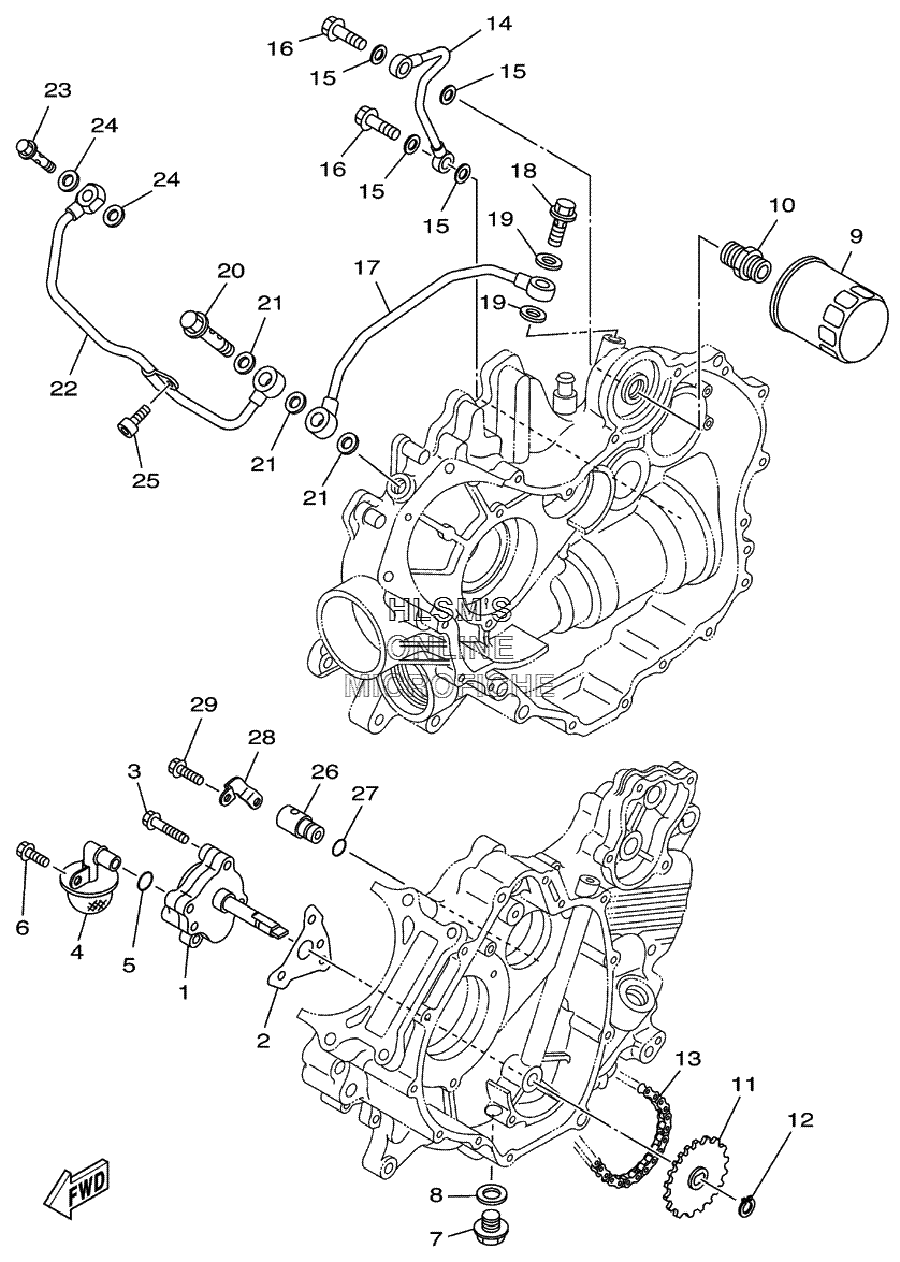

OIL PUMP для Yamaha GRIZZLY 660 4x4 YFM66FAV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-13300-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
25KM-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
395027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-13410-00-00 STRAINER HOUSING ASSY.STRAINER HOUSING ASSY.
-
593210-14579-00 O-RINGO-RING
-
695027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
790340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
8214-11198-01-00 GASKETGASKET
-
95GH-13440-00-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
1090401-20145-00 BOLT, UNIONBOLT, UNION
-
115KM-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1299009-11400-00 CIRCLIPCIRCLIP
-
1394581-94070-00 CHAIN (DID25SD DHA)CHAIN (DID25SD DHA)
-
143AJ-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1590430-08204-00 GASKETGASKET
-
1690401-08004-00 BOLT, UNIONBOLT, UNION
-
175KM-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
1890401-14118-00 BOLT, UNIONBOLT, UNION
-
1990430-14043-00 GASKETGASKET
-
205KM-12858-00-00 BOLT, UNIONBOLT, UNION
-
2190430-14043-00 GASKETGASKET
-
225KM-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
2390401-10159-00 BOLT, UNIONBOLT, UNION
-
2490430-10188-00 GASKETGASKET
-
2591317-06012-00 BOLTBOLT
-
265KM-13490-00-00 RELIEF VALVE ASSY.RELIEF VALVE ASSY.
-
2793210-10096-00 O-RINGO-RING
-
285KM-1319K-00-00 PLATEPLATE
-
2995027-06012-00 BOLT, FLANGEBOLT, FLANGE
