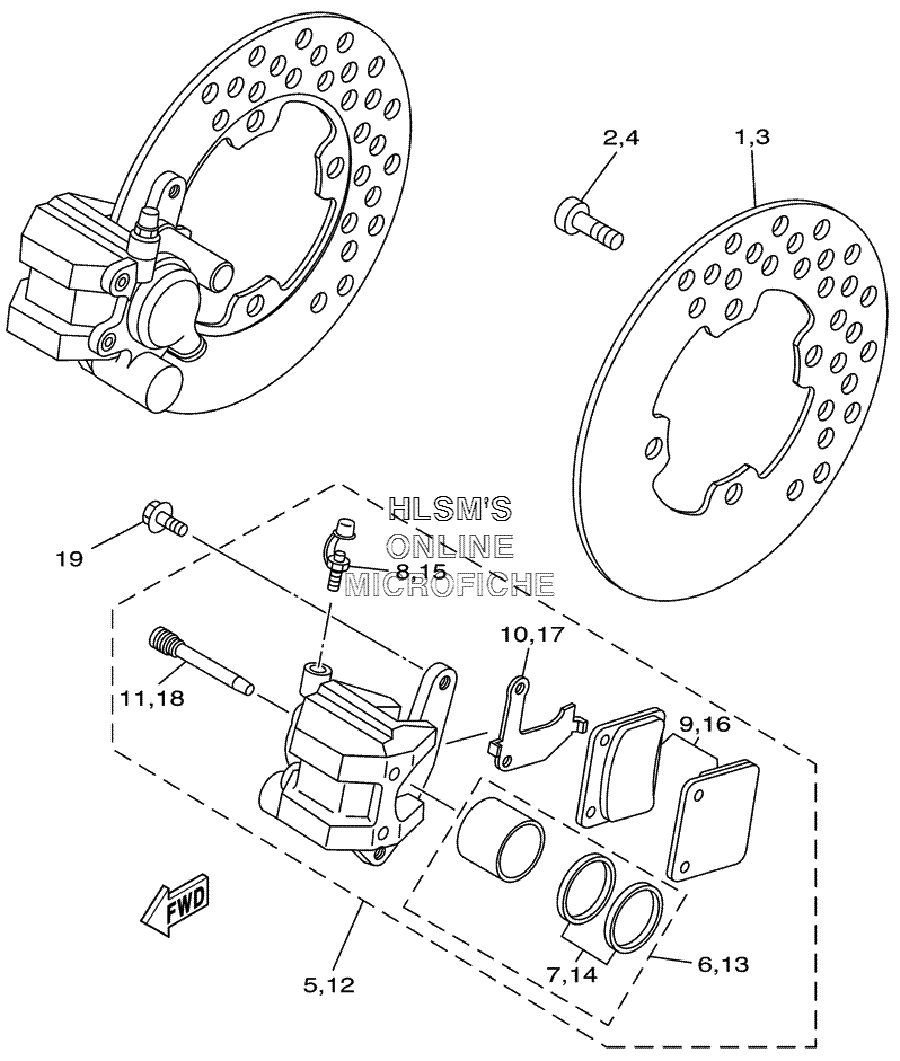

BRAKE - FRONT CALIPER для Yamaha KODIAK 400 4WD YFM4FAV - 2006 года выпуска
-
№АртикулНазвание
-
15ND-F582T-00-00 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
290149-08268-00 SCREWSCREW
-
35ND-F582T-00-00 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
490149-08268-00 SCREWSCREW
-
53GD-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
63GD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
73GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
93GD-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
103GD-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
113GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
123GD-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
133GD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
143GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
151UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
163GD-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
173GD-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
183GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
1990105-08520-00 BOLT, WASHER BASEDBOLT, WASHER BASED
