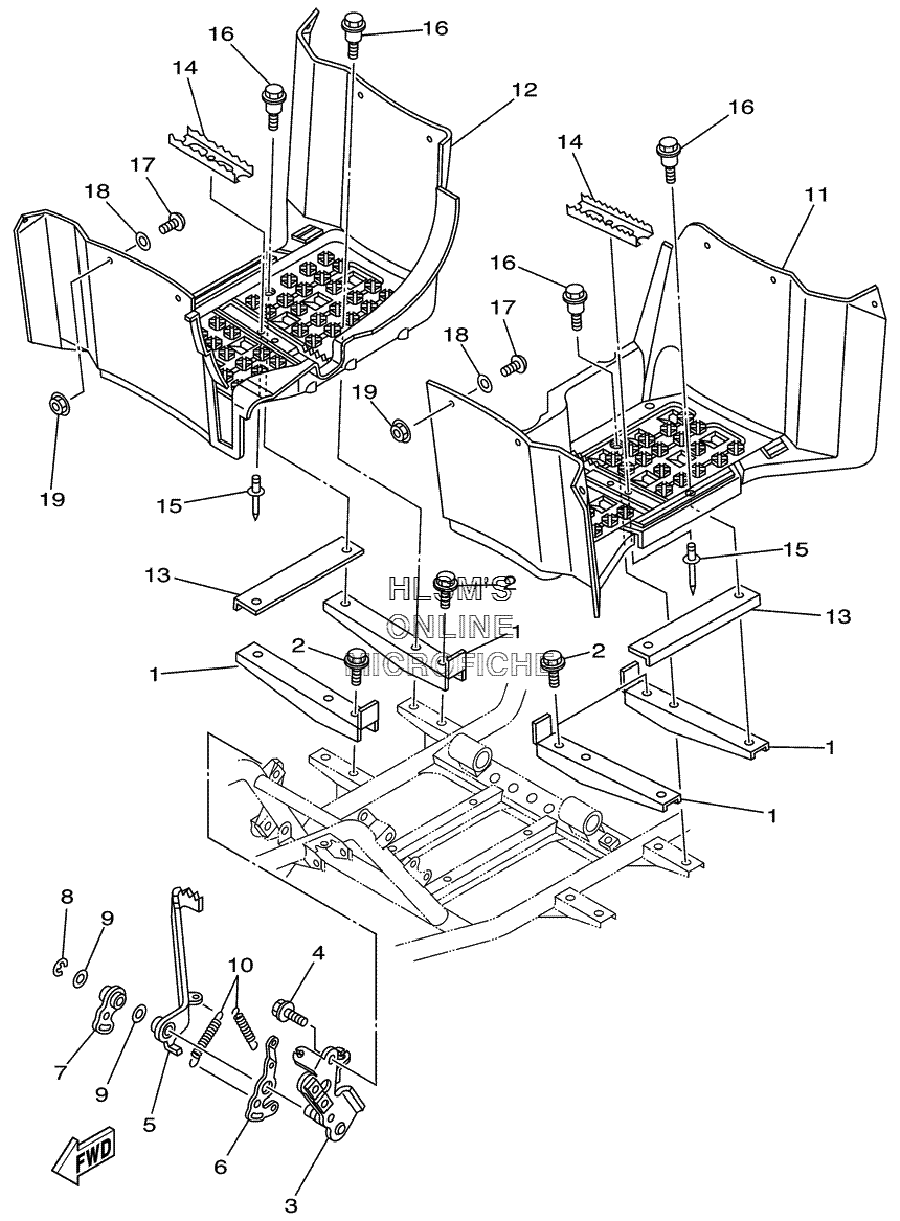

FOOTREST W/ BRAKE PEDAL для Yamaha KODIAK 400 4WD YFM4FAV - 2006 года выпуска
-
№АртикулНазвание
-
15ND-F7471-01-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
29581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35ND-F7412-10-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
49581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
55ND-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
65ND-F7252-10-00 LEVER, BRAKE PEDALLEVER, BRAKE PEDAL
-
75ND-F7254-10-00 HOOKHOOK
-
893430-10015-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
990201-144J2-00 WASHER, PLATEWASHER, PLATE
-
1090506-12441-00 SPRING, TENSIONSPRING, TENSION
-
115ND-F7453-01-00 COVER 1COVER 1
-
125ND-F7463-01-00 COVER 2COVER 2
-
135ND-F7445-00-00 PLATE 1PLATE 1
-
145UH-F741A-00-00 ARM 1ARM 1
-
1590267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1690109-06072-00 BOLTBOLT
-
1790149-05299-00 SCREWSCREW
-
1890201-05029-00 WASHER, PLATEWASHER, PLATE
-
1995707-05300-00 NUT, FLANGENUT, FLANGE
