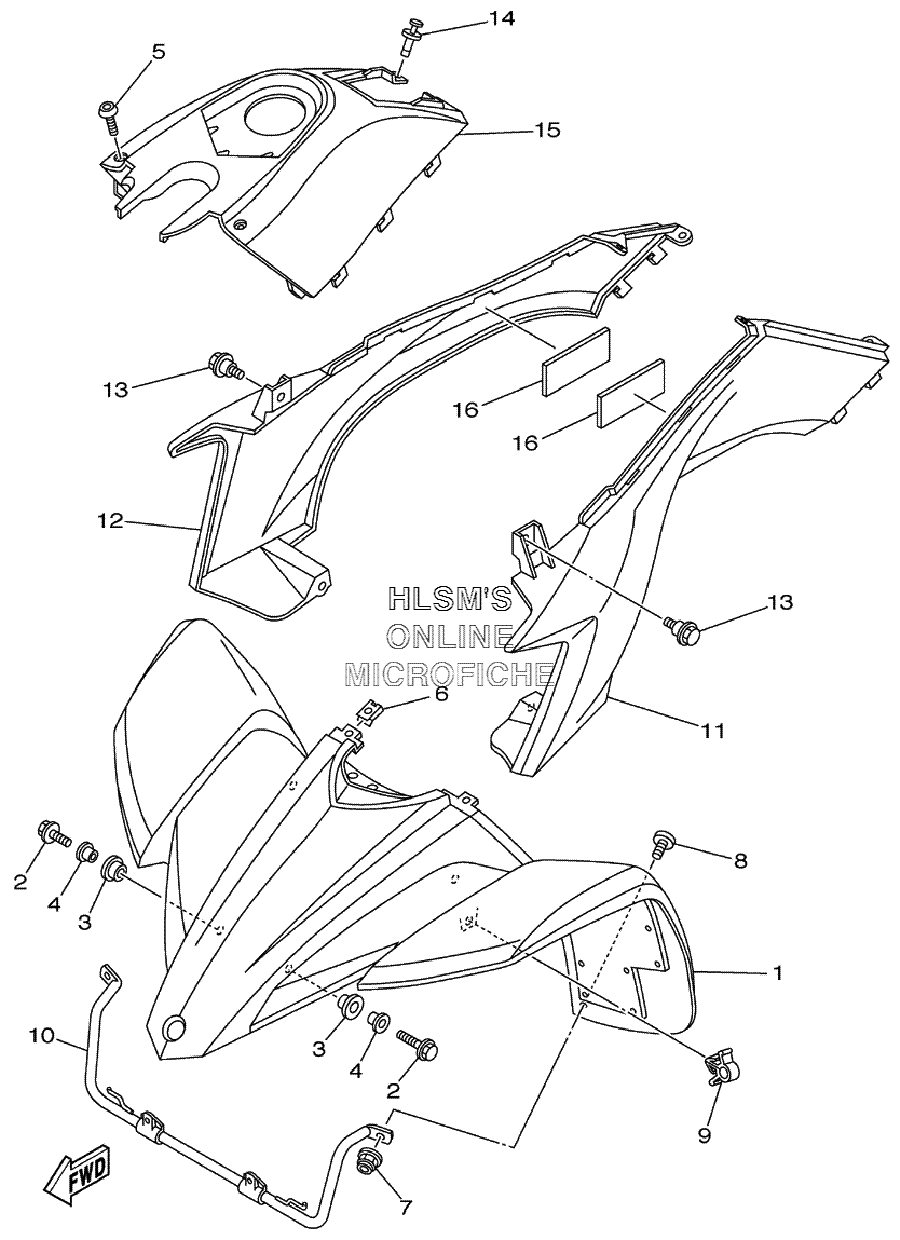

FENDER - FRONT для Yamaha YFZ450 SPECIAL EDITION YFZ450SPV - 2006 года выпуска
-
№АртикулНазвание
-
15TG-W2151-40-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
390480-15006-00 GROMMETGROMMET
-
490387-062L2-00 COLLARCOLLAR
-
590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690183-05008-00 NUT, SPRINGNUT, SPRING
-
795607-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990464-48174-00 CLAMPCLAMP
-
105TG-21513-10-00 STAY, FENDER 1STAY, FENDER 1
-
115TG-21711-30-00 COVER, SIDE 1COVER, SIDE 1
-
125TG-21721-30-00 COVER, SIDE 2COVER, SIDE 2
-
1390109-063F1-00 BOLTBOLT
-
1490269-06002-00 RIVETRIVET
-
155TG-2171A-40-00 COVER, TOPCOVER, TOP
-
165TG-21541-00-00 DAMPER 1DAMPER 1
