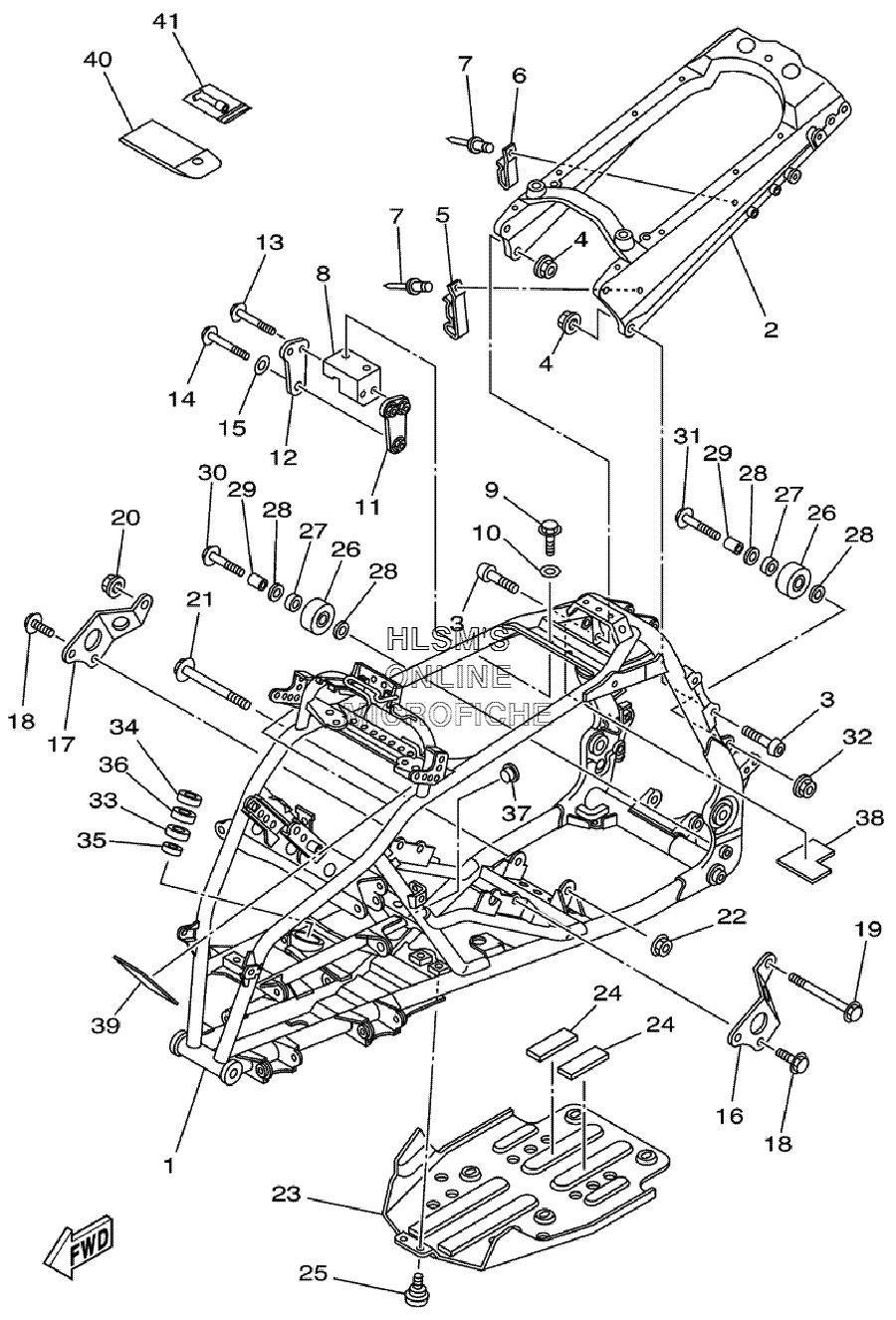

FRAME для Yamaha YFZ450 SPECIAL EDITION YFZ450SPV - 2006 года выпуска
-
№АртикулНазвание
-
15TG-21101-49-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
25TG-21190-09-00 REAR FRAME COMP. (SILVER)REAR FRAME COMP. (SILVER)
-
392017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590462-12003-00 CLAMPCLAMP
-
690462-12005-00 CLAMPCLAMP
-
790267-48088-00 RIVET, BLINDRIVET, BLIND
-
85TG-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
995812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08053-00 WASHER, PLATEWASHER, PLATE
-
115TG-21318-10-00 STAY, ENGINE 5STAY, ENGINE 5
-
125TG-21314-10-00 STAY, ENGINE 5STAY, ENGINE 5
-
1395812-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-10036-00 WASHER, PLATEWASHER, PLATE
-
165TG-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
175TG-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1895817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1995812-10165-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190105-10148-00 BOLT, FLANGEBOLT, FLANGE
-
2290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
235TG-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2441R-21717-00-00 DAMPERDAMPER
-
2590109-066G1-00 BOLTBOLT
-
265TG-22178-00-00 TENSIONERTENSIONER
-
2793300-60804-00 BEARINGBEARING
-
2890201-08043-00 WASHER, PLATEWASHER, PLATE
-
2990387-086N4-00 COLLARCOLLAR
-
3095022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
3190105-08112-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3393306-20352-00 BEARINGBEARING
-
3493102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
3593102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
365GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
3790338-18122-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
385TG-25897-00-00 DAMPERDAMPER
-
395TG-84163-00-00 DAMPERDAMPER
-
405TG-28100-10-00 TOOL KITTOOL KIT
-
411NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
