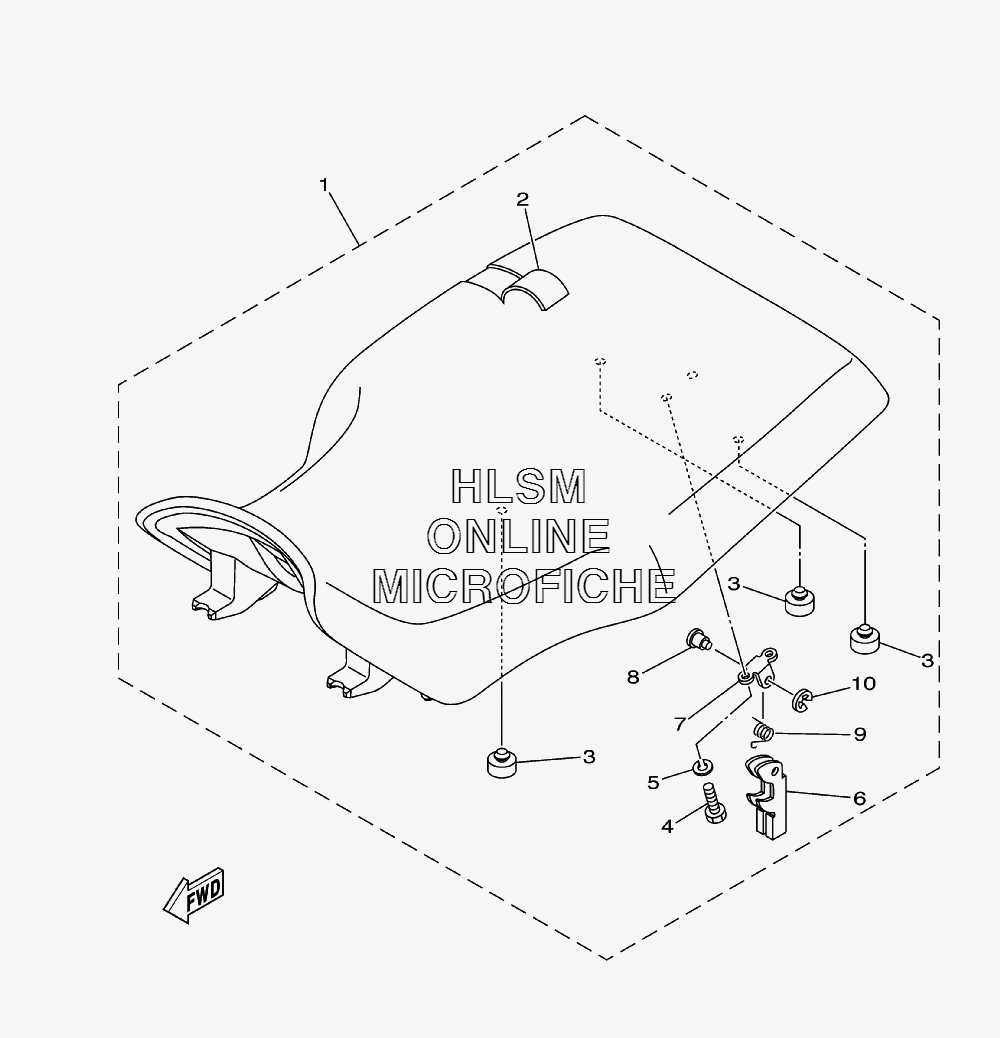

SEAT для Yamaha GRIZZLY 125 - 2007 года выпуска
-
№АртикулНазвание
-
11C5-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21C5-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
497007-06012-00 ...BOLT...BOLT
-
592907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
629U-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
84K0-24774-01-00 ...PIN...PIN
-
990508-20779-00 ...SPRING, TORSION...SPRING, TORSION
-
1099001-04600-00 ...CIRCLIP...CIRCLIP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- • SEAT
- SHIFT CAM W/ FORK
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
