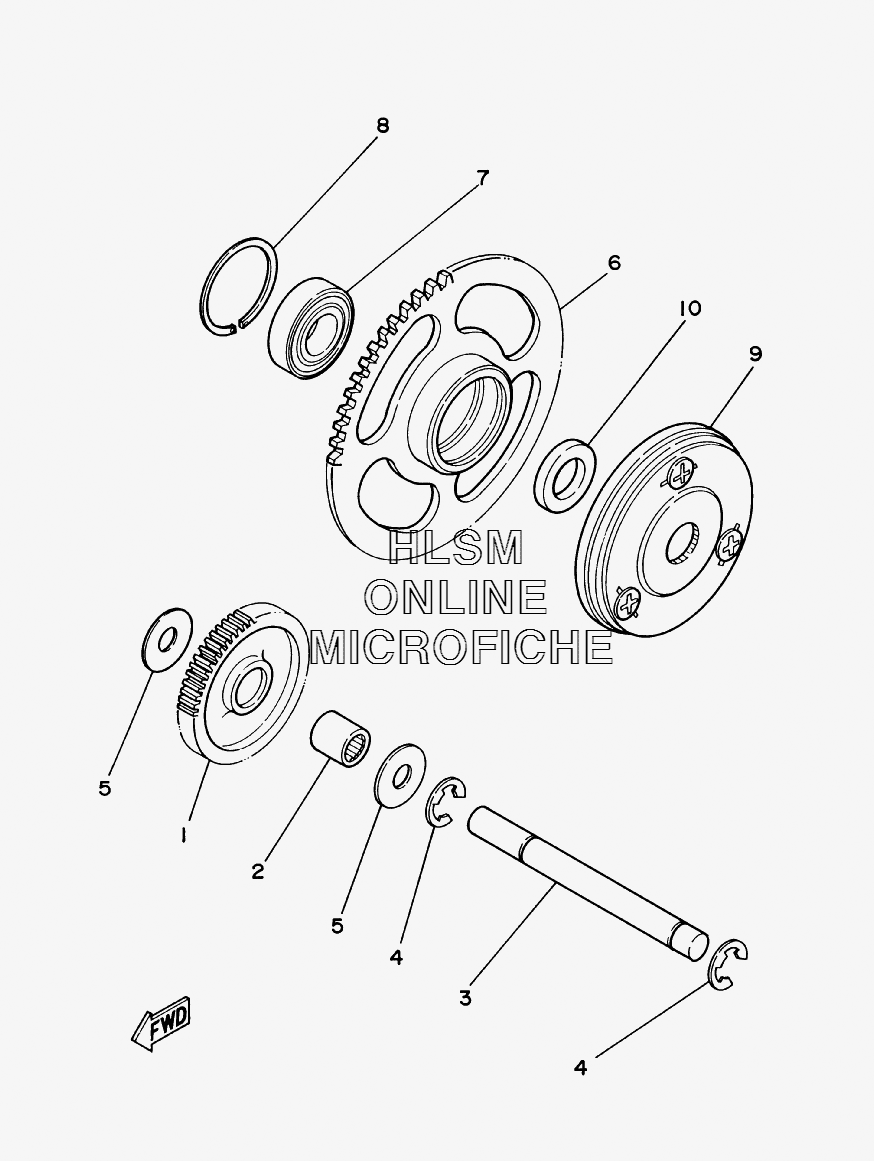

STARTER CLUTCH для Yamaha GRIZZLY 125 - 2007 года выпуска
-
№АртикулНазвание
-
150M-15512-00-00 GEAR, IDLER 1 (55T/14T)GEAR, IDLER 1 (55T/14T)
-
293315-11040-00 BEARINGBEARING
-
33FA-15521-00-00 SHAFT 1SHAFT 1
-
499001-09600-00 CIRCLIPCIRCLIP
-
590201-10135-00 WASHER, PLATEWASHER, PLATE
-
650M-15524-00-00 WHEEL, STARTER (55T)WHEEL, STARTER (55T)
-
793306-00307-00 BEARINGBEARING
-
899009-35700-00 CIRCLIPCIRCLIP
-
950M-15570-02-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
1090201-163F8-00 WASHER, PLATEWASHER, PLATE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- • STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
