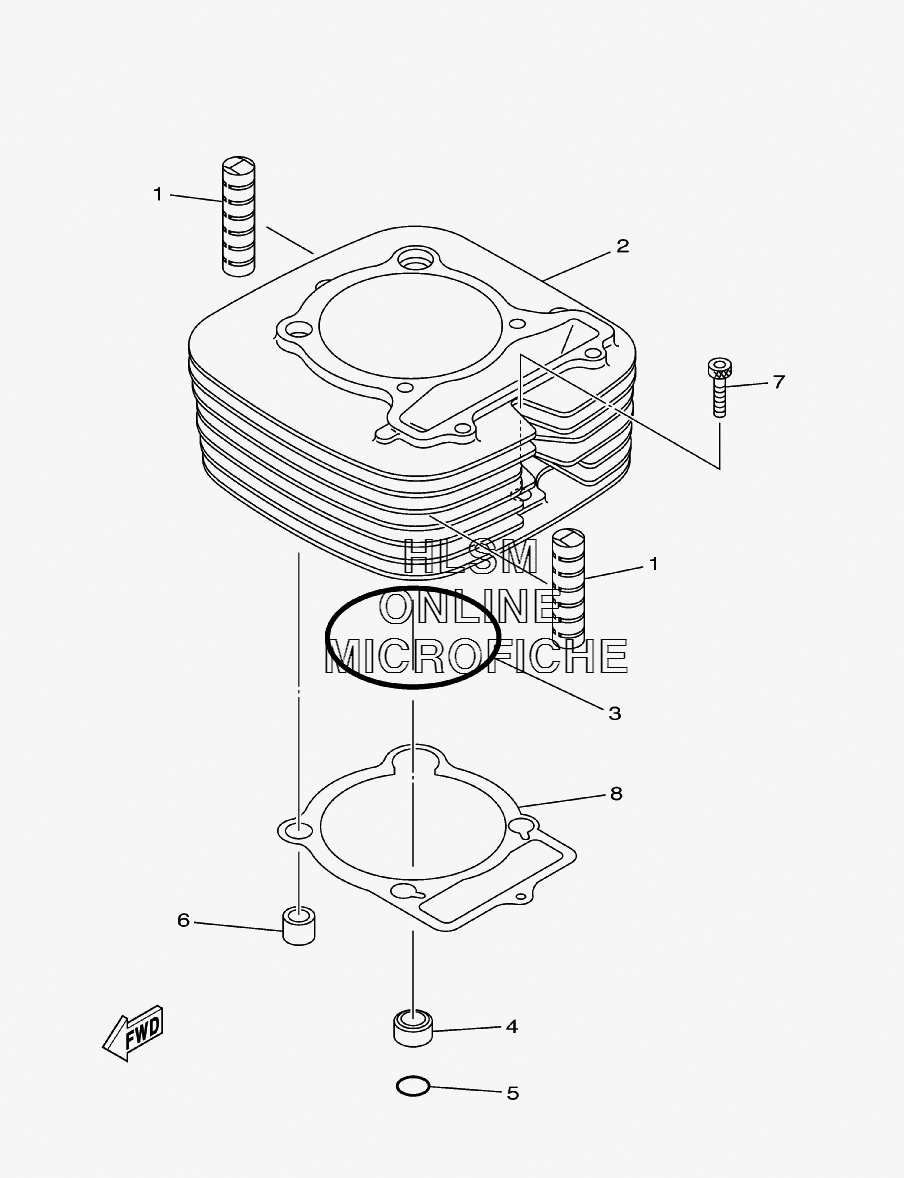

CYLINDER для Yamaha GRIZZLY 350 - 2007 года выпуска
-
№АртикулНазвание
-
14X7-11127-00-00 ABSORBER 3ABSORBER 3
-
25YT-11310-00-00 CYLINDERCYLINDER
-
393210-86509-00 O-RINGO-RING
-
490387-16547-00 COLLARCOLLAR
-
593210-18322-00 O-RINGO-RING
-
699530-14016-00 PIN, DOWELPIN, DOWEL
-
791317-06030-00 BOLTBOLT
-
84KB-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
