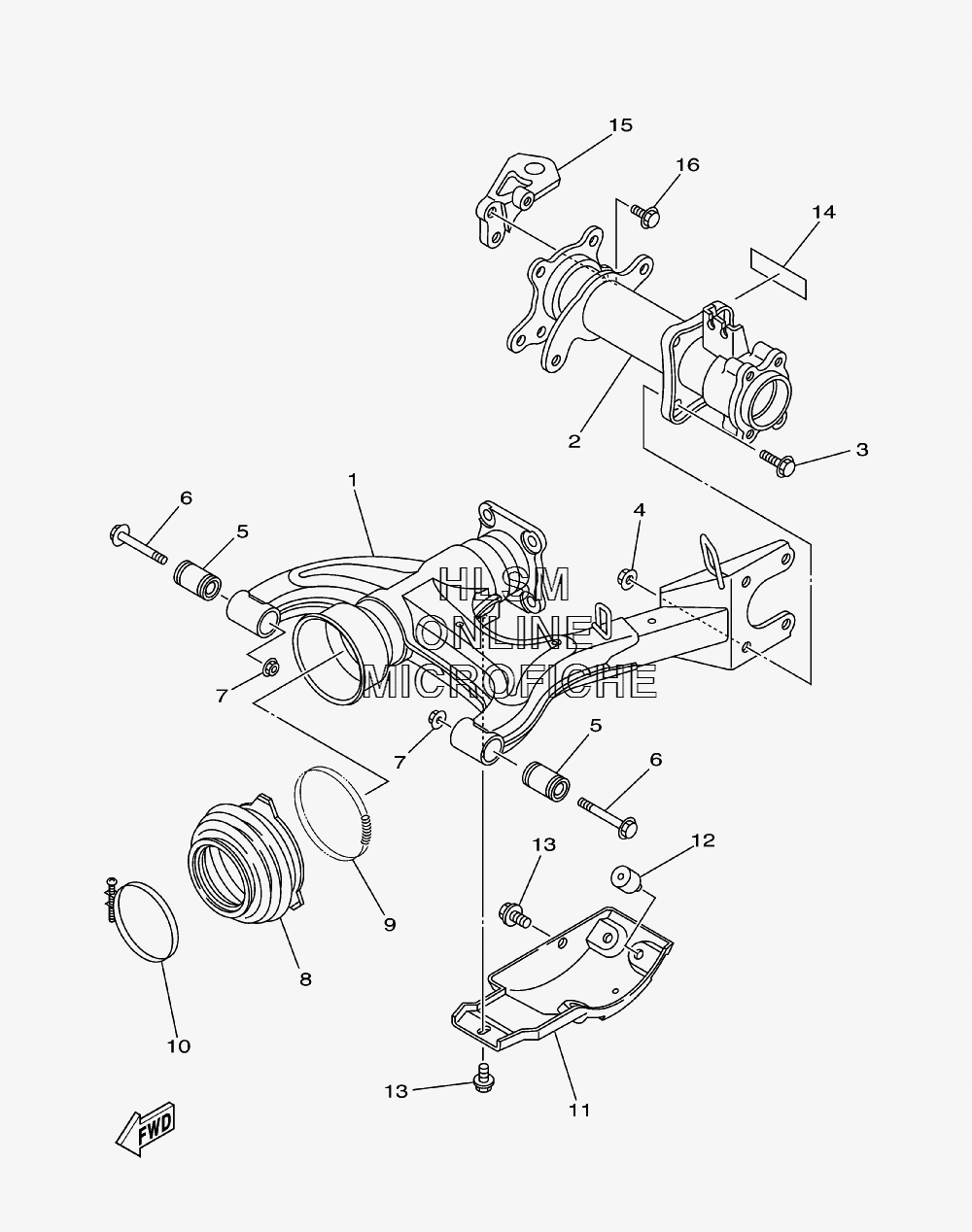

SUSPENSION - REAR ARM для Yamaha GRIZZLY 350 - 2007 года выпуска
-
№АртикулНазвание
-
13C2-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25TE-G6540-12-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
39581P-10020-00 BOLT, FLANGEBOLT, FLANGE
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
55ND-F2123-00-00 BUSH 1BUSH 1
-
690105-12660-00 BOLT, FLANGEBOLT, FLANGE
-
795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85ND-F2189-00-00 BOOT, RUBBERBOOT, RUBBER
-
990506-07135-00 SPRING, TENSIONSPRING, TENSION
-
1090460-85277-00 CLAMP, HOSECLAMP, HOSE
-
114XE-F219X-00-00 COVERCOVER
-
12109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1395807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
145ND-F151K-00-00 LABEL 7 (ENGLISH)LABEL 7 (ENGLISH)
-
155ND-F8488-20-00 HOOKHOOK
-
169581P-10020-00 BOLT, FLANGEBOLT, FLANGE
