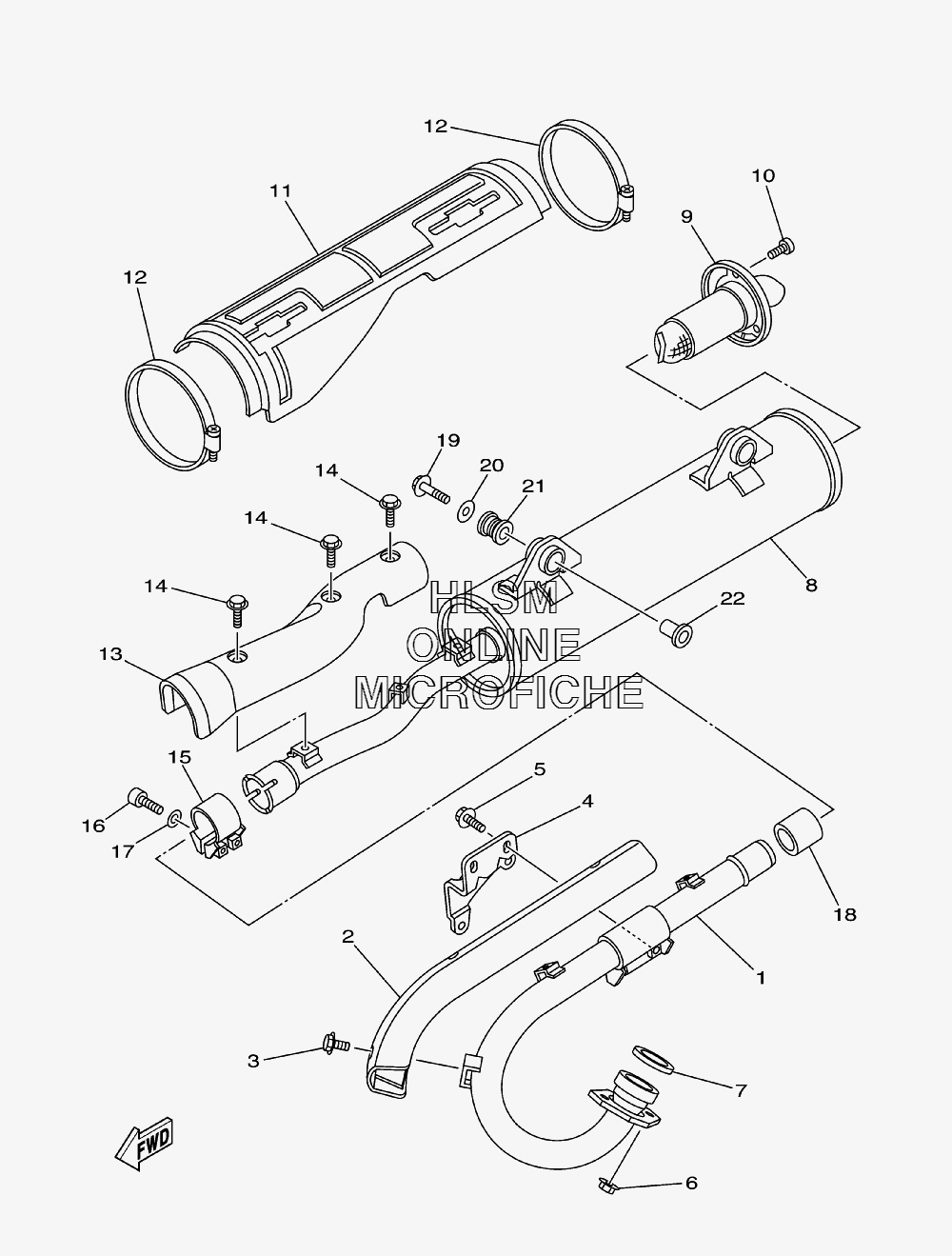

EXHAUST для Yamaha GRIZZLY 400 - 2007 года выпуска
-
№АртикулНазвание
-
15ND-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
25ND-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
39581P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
45ND-E477K-01-00 PLATE 1PLATE 1
-
59581P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
690179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
73GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
85ND-E4711-00-00 MUFFLER 1MUFFLER 1
-
95ND-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
105ND-E4719-00-00 BOLT, MUFFLERBOLT, MUFFLER
-
115ND-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
125ND-E4788-00-00 BAND, SILENCERBAND, SILENCER
-
135ND-E4728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
149581P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
155ND-E4715-00-00 BAND, MUFFLERBAND, MUFFLER
-
165ND-E4777-00-00 BOLTBOLT
-
175ND-E4759-00-00 WASHERWASHER
-
185ND-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1995827-10040-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-106E0-00 WASHER, PLATEWASHER, PLATE
-
215ND-E4737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2290387-10636-00 COLLARCOLLAR
