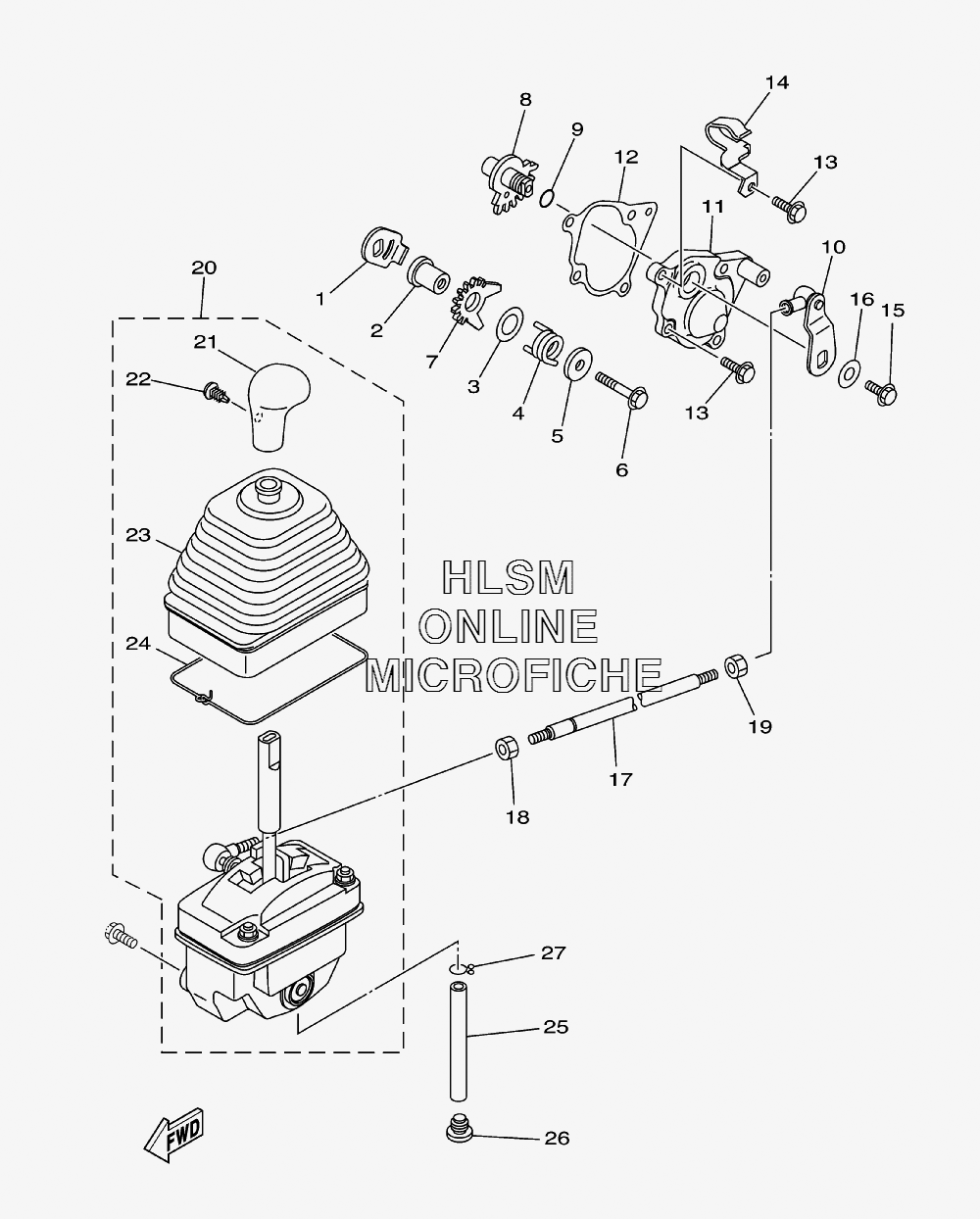

SHIFT SHAFT для Yamaha GRIZZLY 400 - 2007 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06008-00 WASHER, PLATEWASHER, PLATE
-
695817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
105GH-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1397080-06020-00 BOLT, W/WASHERBOLT, W/WASHER
-
1490465-08336-00 CLAMPCLAMP
-
1595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06008-00 WASHER, PLATEWASHER, PLATE
-
175GH-18115-01-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995307-08700-00 NUTNUT
-
201P1-18300-01-00 SHIFTER ASSYSHIFTER ASSY
-
211P1-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
2290269-05055-00 ...RIVET...RIVET
-
235GH-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
245GH-18617-00-00 ...STOPPER, RUBBER...STOPPER, RUBBER
-
2590446-16001-00 HOSE (L90)HOSE (L90)
-
265ND-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
2790467-15012-00 CLIPCLIP
