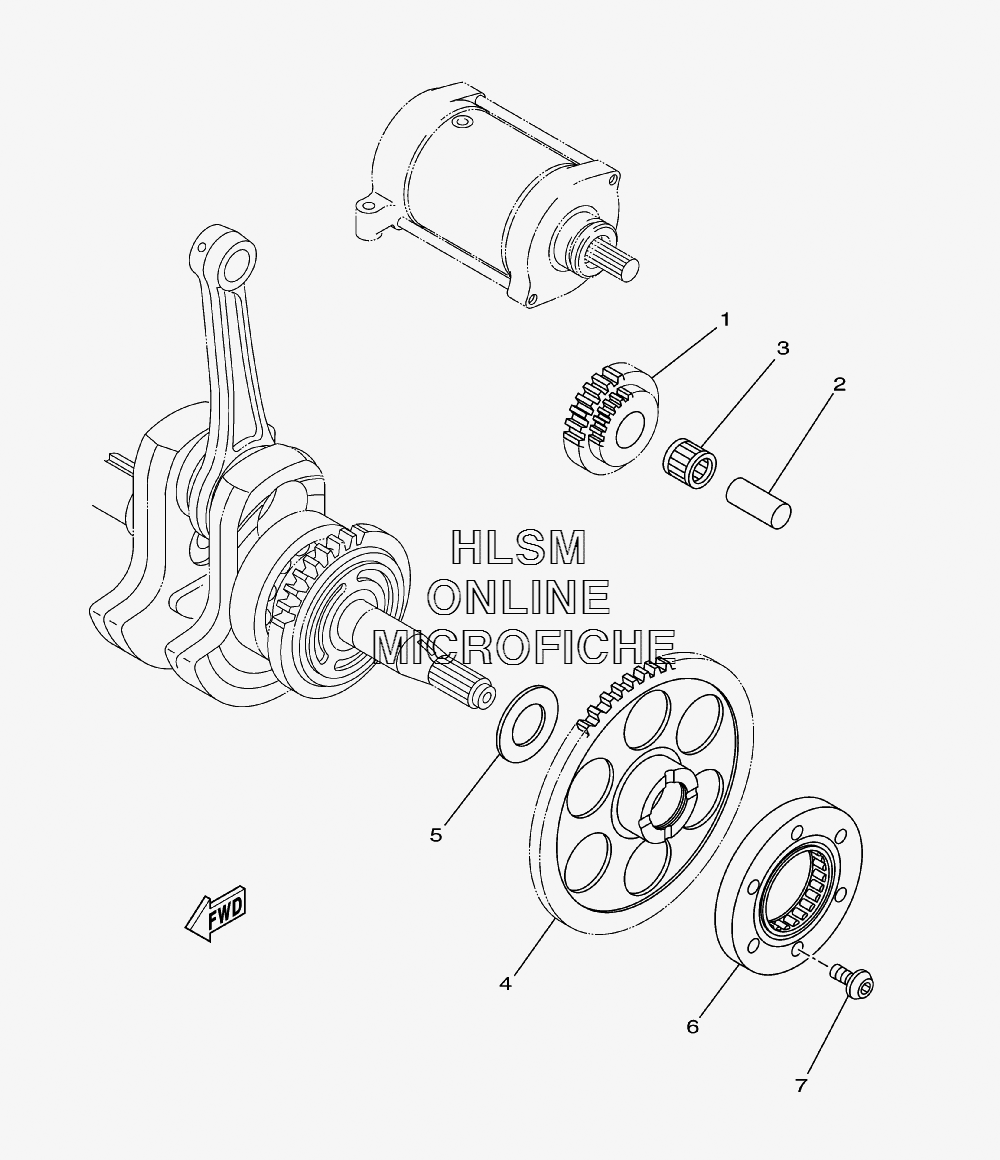

STARTER CLUTCH для Yamaha GRIZZLY 660 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
15GH-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
25KM-15522-00-00 SHAFT 2SHAFT 2
-
393310-212R6-00 BEARING, CYL.#10BEARING, CYL.#10
-
45KM-15517-10-00 GEAR, IDLER 2GEAR, IDLER 2
-
590201-25291-00 WASHER, PLATEWASHER, PLATE
-
65KM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
791317-08016-00 BOLTBOLT
