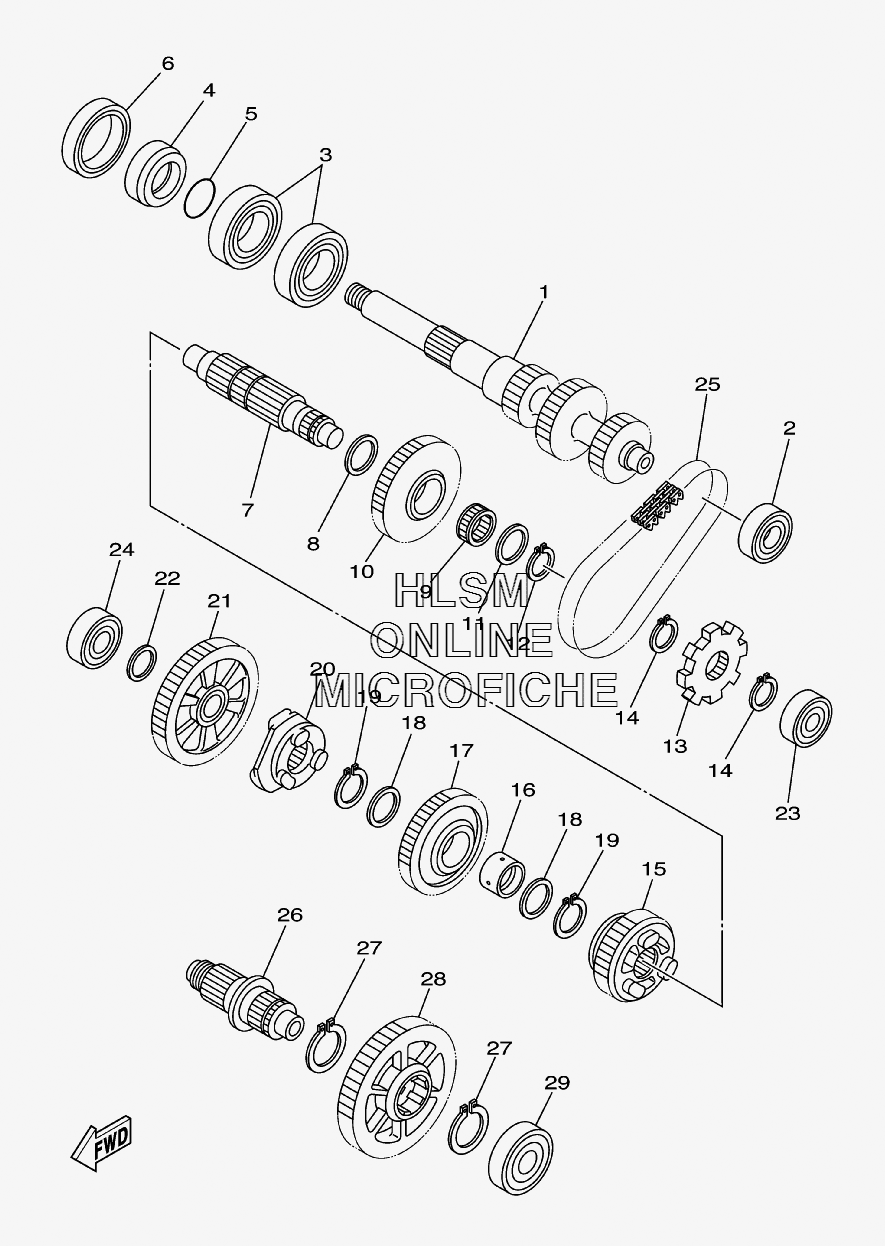

TRANSMISSION для Yamaha GRIZZLY 660 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
15KM-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-20321-00 BEARINGBEARING
-
393306-00612-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75KM-17402-01-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
890201-20278-00 WASHER, PLATEWASHER, PLATE
-
993310-420F2-00 BEARING, CYL.#10BEARING, CYL.#10
-
105KM-17453-00-00 SPROCKET, DRIVEN (25T)SPROCKET, DRIVEN (25T)
-
1190201-20278-00 WASHER, PLATEWASHER, PLATE
-
1293410-20038-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
135KM-17473-00-00 STOPPERSTOPPER
-
1493410-20038-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
152C6-17582-00-00 GEAR, MIDDLE DRIVE (21T)GEAR, MIDDLE DRIVE (21T)
-
1690387-250R3-00 COLLARCOLLAR
-
175KM-17223-10-00 GEAR, HIGH WHEEL (26T)GEAR, HIGH WHEEL (26T)
-
1890209-22082-00 WASHER,SPEC'L SHAPE (T=0.5)WASHER,SPEC'L SHAPE (T=0.5)
-
1993440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
202C6-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
215UG-17233-00-00 GEAR, LOW WHEEL (35T)GEAR, LOW WHEEL (35T)
-
2290201-17255-00 WASHER, PLATEWASHER, PLATE
-
2393306-20221-00 BEARINGBEARING
-
2493306-20332-00 BEARINGBEARING
-
2594591-54034-00 CHAIN (23RH302-34ASM)CHAIN (23RH302-34ASM)
-
265KM-17523-10-00 SHAFTSHAFT
-
2793440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
285UG-17583-00-00 GEAR, MIDDLE DRIVEN (41T)GEAR, MIDDLE DRIVEN (41T)
-
2993306-30318-00 BEARINGBEARING
