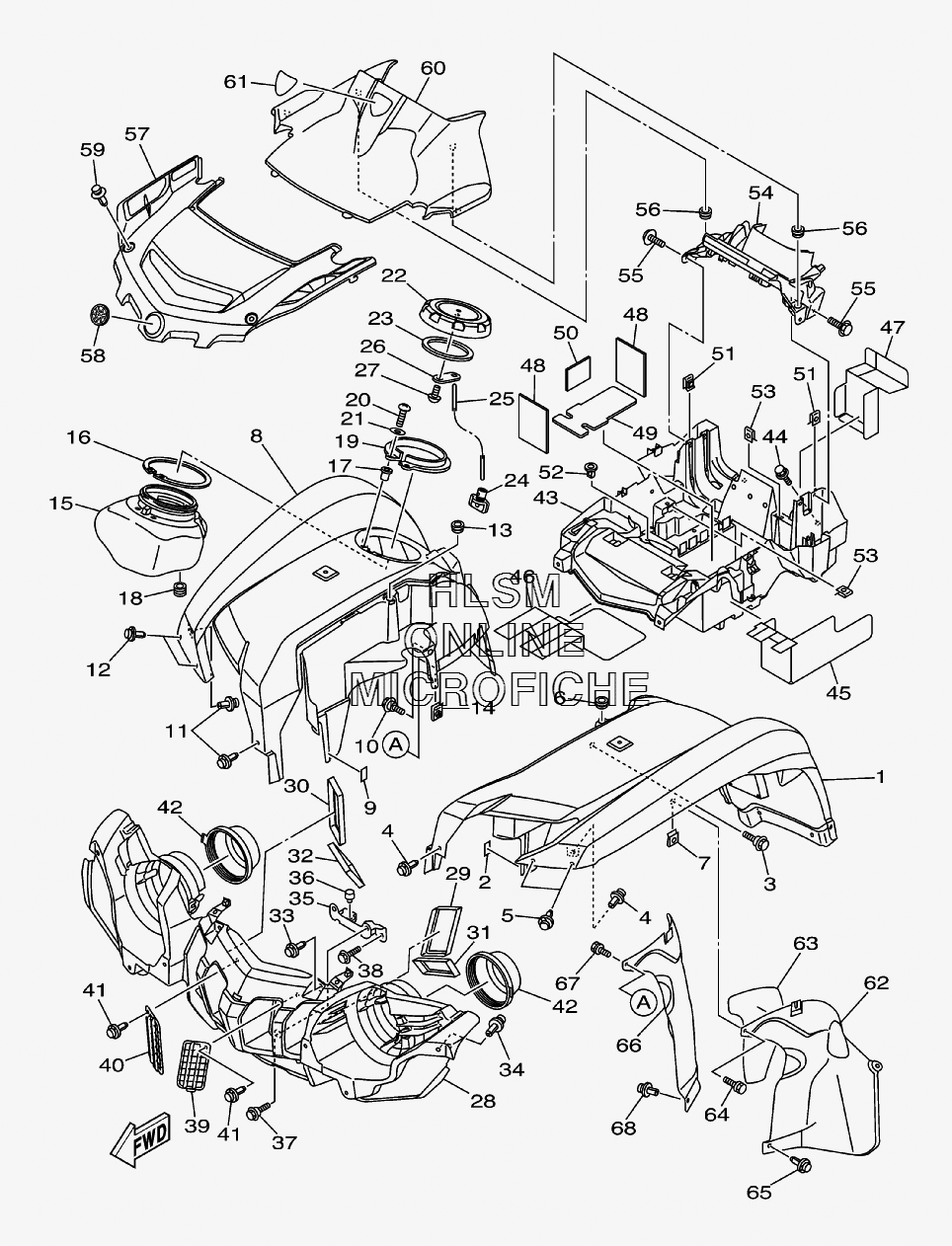

FENDER - FRONT для Yamaha GRIZZLY 700 OUTDOORSMAN EDITION - 2007 года выпуска
-
№АртикулНазвание
-
13B4-W2151-A0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
23B4-21541-00-00 DAMPER 1DAMPER 1
-
390109-063F1-00 BOLTBOLT
-
490269-07010-00 RIVETRIVET
-
590269-07010-00 RIVETRIVET
-
690480-13398-00 GROMMETGROMMET
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
83B4-21556-A0-00 FENDER, FRONT 2FENDER, FRONT 2
-
93B4-21541-00-00 DAMPER 1DAMPER 1
-
1090109-063F1-00 BOLTBOLT
-
1190269-07010-00 RIVETRIVET
-
1290269-07010-00 RIVETRIVET
-
1390480-13398-00 GROMMETGROMMET
-
1490183-06053-00 NUT, SPRINGNUT, SPRING
-
153B4-2838K-00-00 BOX 1BOX 1
-
163B4-2838M-00-00 SEAL, BOX 1SEAL, BOX 1
-
1790179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1890480-13004-00 GROMMETGROMMET
-
193B4-2839N-00-00 HOLDERHOLDER
-
2098502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192902-05600-00 WASHER, PLATEWASHER, PLATE
-
223B4-2151B-00-00 CAPCAP
-
233B4-28307-00-00 SEALSEAL
-
243B4-215A1-00-00 PLUG, DRAINPLUG, DRAIN
-
253B4-2845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
263B4-28487-00-00 PLATE 2PLATE 2
-
2797702-50512-00 SCREW, TAPPINGSCREW, TAPPING
-
283B4-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
293B4-28217-00-00 DAMPER 1DAMPER 1
-
303B4-28227-00-00 DAMPER 2DAMPER 2
-
313B4-28237-00-00 DAMPER 3DAMPER 3
-
323B4-28247-00-00 DAMPER 4DAMPER 4
-
3390269-07010-00 RIVETRIVET
-
3490269-07077-00 RIVETRIVET
-
353B4-28332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
365RU-24768-00-00 STOPPERSTOPPER
-
3790109-063F1-00 BOLTBOLT
-
3895802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
393B4-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
403B4-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
4190269-07077-00 RIVETRIVET
-
423B4-28349-00-00 CAPCAP
-
433B4-21523-00-00 PLATE 1PLATE 1
-
4490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
453B4-8253E-00-00 INSULATOR 1INSULATOR 1
-
463B4-8253F-00-00 INSULATOR 2INSULATOR 2
-
473B4-8254E-00-00 INSULATORINSULATOR
-
483B4-8233W-00-00 INSU.INSU.
-
493B4-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
501S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
5190183-06053-00 NUT, SPRINGNUT, SPRING
-
5290338-08226-00 PLUGPLUG
-
5390183-05008-00 NUT, SPRINGNUT, SPRING
-
543B4-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
5590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5690480-13567-00 GROMMETGROMMET
-
573B4-23391-00-00 PANEL, FRONTPANEL, FRONT
-
585KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
5990269-07010-00 RIVETRIVET
-
603B4-28313-00-00 LIDLID
-
613B4-26232-00-00 EMBLEM 3DEMBLEM 3D
-
623B4-21552-00-00 FENDER, INNERFENDER, INNER
-
633B4-21575-00-00 SEAL 1SEAL 1
-
6490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6590269-07010-00 RIVETRIVET
-
663B4-21553-00-00 FENDER, INNER 2FENDER, INNER 2
-
6790119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6890269-07010-00 RIVETRIVET
