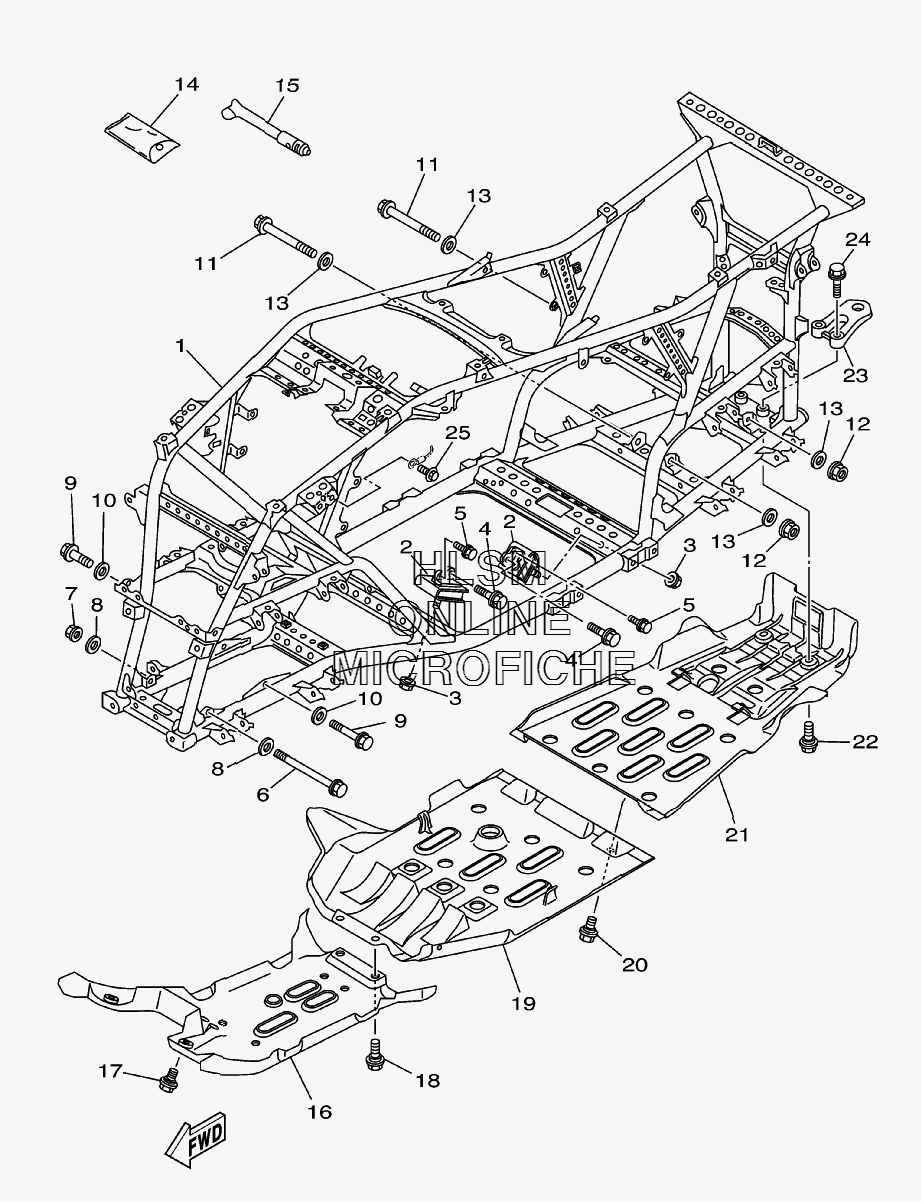

FRAME для Yamaha GRIZZLY 700 OUTDOORSMAN EDITION - 2007 года выпуска
-
№АртикулНазвание
-
13B4-21110-00-00 FRAME COMP.FRAME COMP.
-
23B4-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
495812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
590105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
690105-10110-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-101J1-00 WASHER, PLATEWASHER, PLATE
-
990105-10061-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1190105-10073-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390201-101J1-00 WASHER, PLATEWASHER, PLATE
-
145TG-28100-00-00 TOOL KITTOOL KIT
-
151NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
163B4-2147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
1790109-06086-00 BOLTBOLT
-
1890109-063F5-00 BOLTBOLT
-
193B4-2147E-00-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
2090109-063F5-00 BOLTBOLT
-
213B4-2147F-00-00 GUARD, ENGINE 3GUARD, ENGINE 3
-
2290109-06086-00 BOLTBOLT
-
233B4-28488-00-00 HOOKHOOK
-
2495817-10035-00 BOLT, FLANGEBOLT, FLANGE
-
2595802-06012-00 BOLT, FLANGEBOLT, FLANGE
