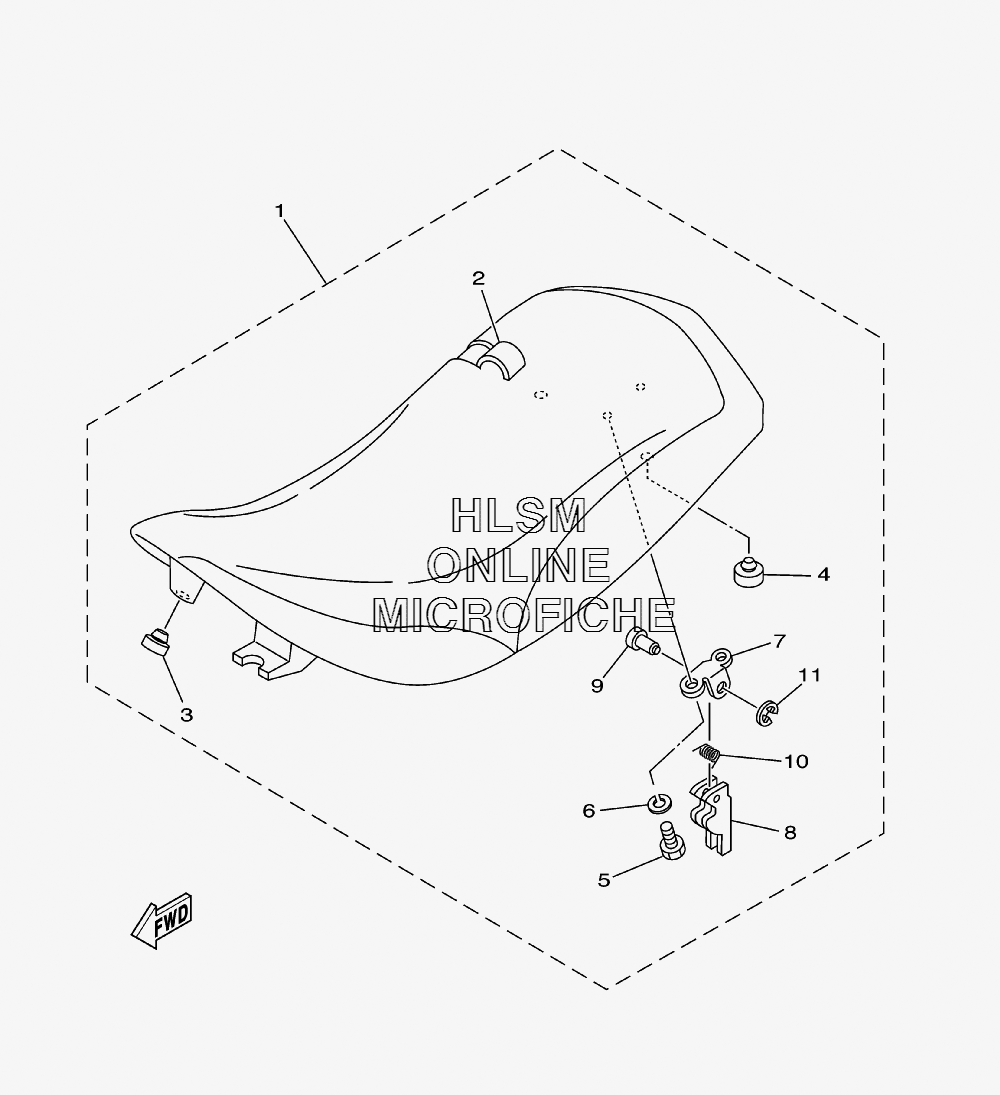

SEAT для Yamaha RAPTOR 50 - 2007 года выпуска
-
№АртикулНазвание
-
15YF-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25YF-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
4371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
829U-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
94K0-24774-A0-00 ...PIN...PIN
-
1090508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
1193430-04002-00 ...CIRCLIP...CIRCLIP
