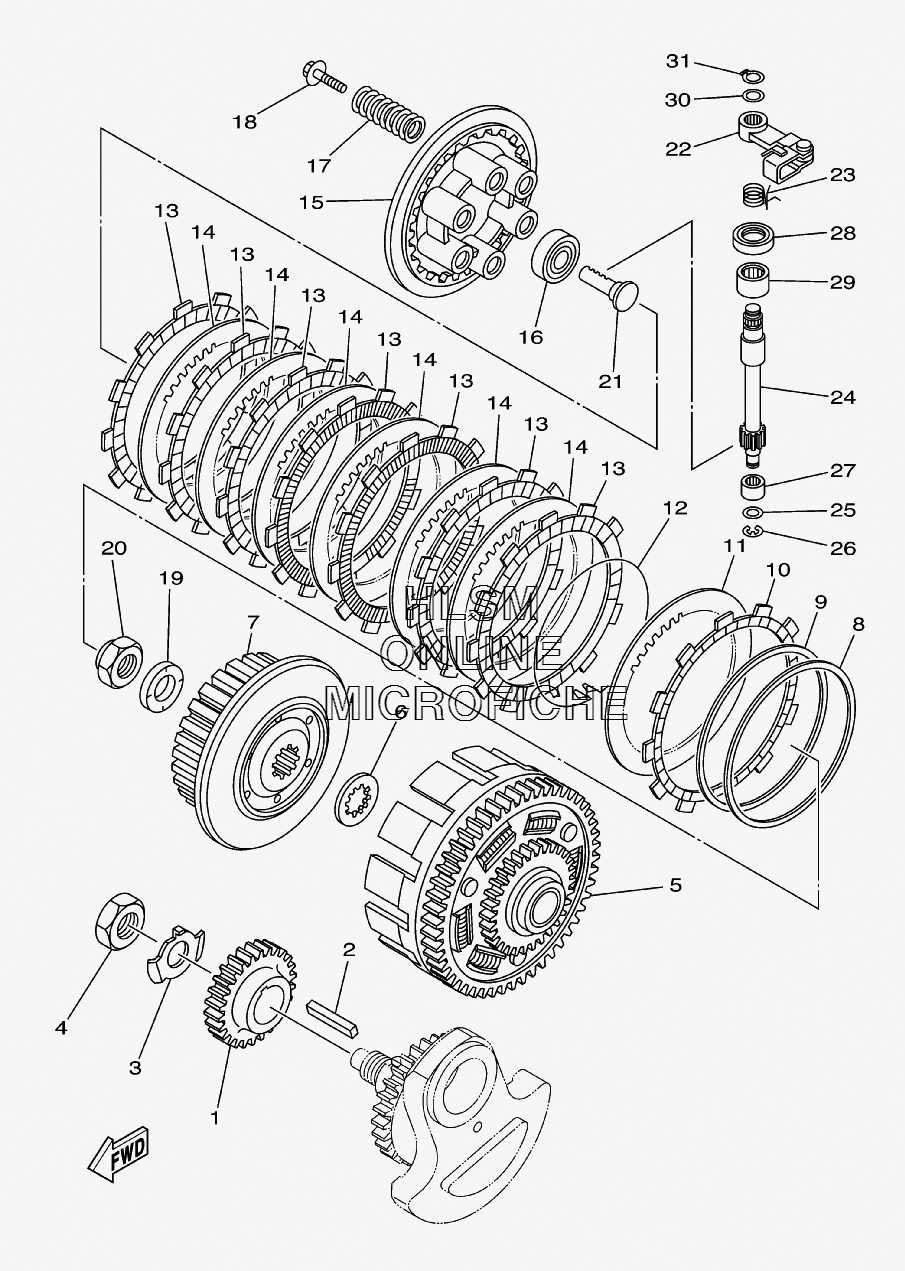

CLUTCH для Yamaha RAPTOR 700R GYTR EDITION - 2007 года выпуска
-
№АртикулНазвание
-
11S3-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290282-07003-00 KEY, STRAIGHTKEY, STRAIGHT
-
390215-20006-00 WASHER, LOCKWASHER, LOCK
-
490170-20274-00 NUTNUT
-
51S3-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
62JN-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
71S3-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
85JG-16384-00-00 PLATE, SEATPLATE, SEAT
-
95JG-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
105TG-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
114X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
124X7-16385-00-00 RING, CLUTCH BOSSRING, CLUTCH BOSS
-
135TA-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
144X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
151S3-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1693306-00304-00 BEARINGBEARING
-
1790501-230E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890159-06029-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1990208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2090179-20007-00 NUTNUT
-
214XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
223LD-16340-01-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2390508-18018-00 SPRING, TORSIONSPRING, TORSION
-
245EB-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2592902-08600-00 WASHER, PLATEWASHER, PLATE
-
2699001-07600-00 CIRCLIPCIRCLIP
-
2793317-11020-00 BEARING, CYL.#17BEARING, CYL.#17
-
2893102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2993315-31502-00 BEARING, CYL.#15BEARING, CYL.#15
-
3090201-10614-00 WASHER, PLATEWASHER, PLATE
-
3199009-10400-00 CIRCLIPCIRCLIP
