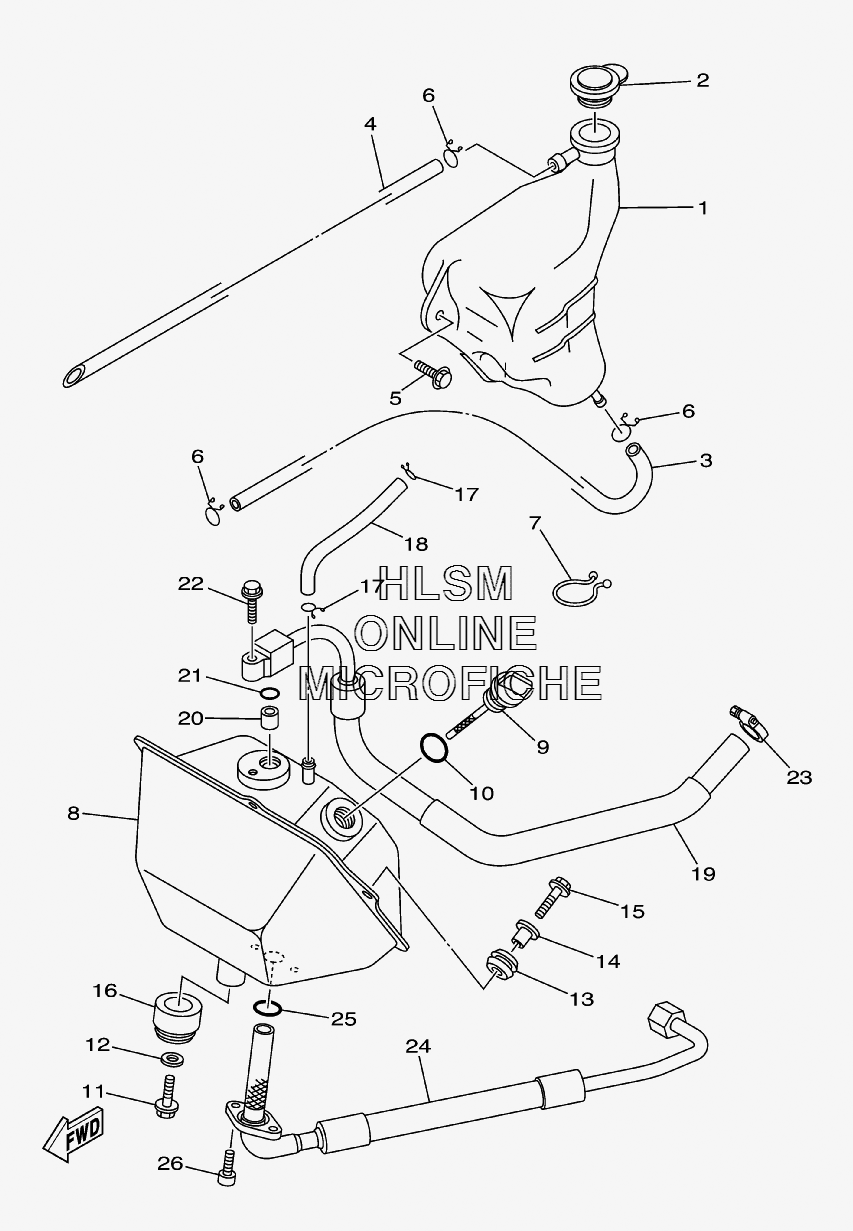

OIL TANK для Yamaha RAPTOR 700R GYTR EDITION - 2007 года выпуска
-
№АртикулНазвание
-
15KM-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-09M30-00 HOSE (L630)HOSE (L630)
-
490445-09777-00 HOSE (L300)HOSE (L300)
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
790464-23041-00 CLAMPCLAMP
-
81S3-21750-00-00 OIL TANK ASSYOIL TANK ASSY
-
95LP-21761-01-00 GAUGE, LEVELGAUGE, LEVEL
-
1093210-21190-00 O-RINGO-RING
-
1195807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-082A6-00 WASHER, PLATEWASHER, PLATE
-
1390480-13459-00 GROMMETGROMMET
-
1490387-061N6-00 COLLARCOLLAR
-
1595827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1690480-24004-00 GROMMETGROMMET
-
1790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
1890445-11034-00 HOSE (L147)HOSE (L147)
-
191S3-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
2099530-10114-00 PIN, DOWELPIN, DOWEL
-
2193210-10197-00 O-RINGO-RING
-
2295027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2390450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
241S3-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
2593210-16629-00 O-RINGO-RING
-
2691317-06016-00 BOLTBOLT
