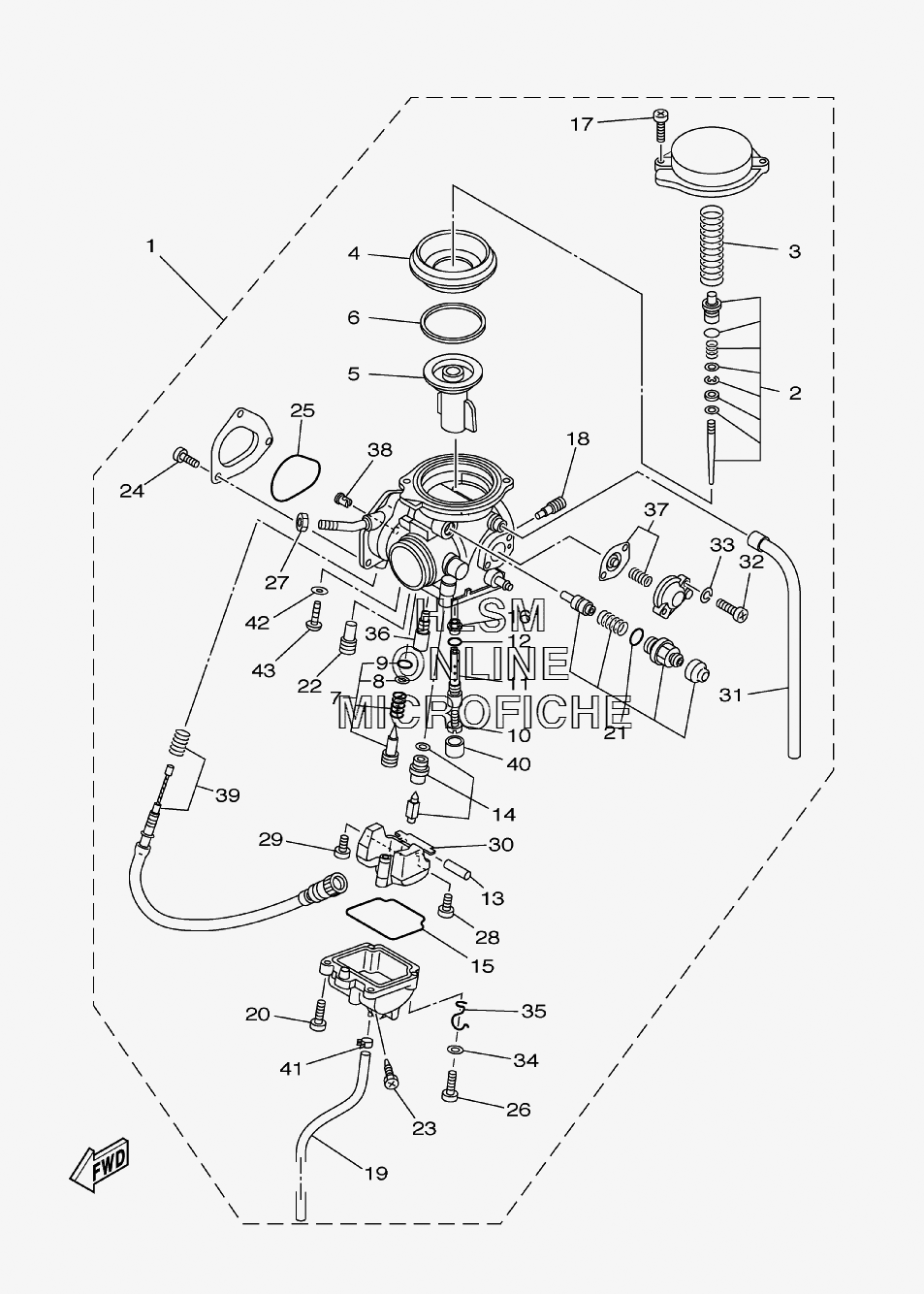

CARBURETOR для Yamaha WOLVERINE 450 SPORT SE - 2007 года выпуска
-
№АртикулНазвание
-
15ND-E4101-11-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25ND-1490J-10-00 ...NEEDLE SET...NEEDLE SET
-
35DM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
45GH-14940-10-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
55DM-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
65GH-14918-10-00 ...RING...RING
-
75ND-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
83H1-14962-00-00 ...WASHER...WASHER
-
93H1-14147-00-00 ...O-RING...O-RING
-
103G2-1423E-52-00 ...JET, MAIN (#131.3)...JET, MAIN (#131.3)
-
115GH-14261-00-00 ...HOLDER...HOLDER
-
12583-14561-00-00 ...O-RING...O-RING
-
13127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
145UH-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
155DM-14561-00-00 ...O-RING...O-RING
-
165DM-14141-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
174KM-14216-00-00 ...SCREW...SCREW
-
181HX-14231-16-00 ...JET, MAIN (#80)...JET, MAIN (#80)
-
194KB-14193-20-00 ...PIPE...PIPE
-
2098580-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215ND-1410A-00-00 ...STARTER SET...STARTER SET
-
223G2-14231-14-00 ...JET, PILOT AIR (#70)...JET, PILOT AIR (#70)
-
233FV-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
249850L-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
255FU-E4147-00-00 ...O-RING...O-RING
-
2698507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
27522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
2898507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
291FN-14565-00-00 ...SCREW...SCREW
-
305DM-14985-00-00 ...FLOAT...FLOAT
-
315GH-14197-00-00 ...PIPE...PIPE
-
3298501-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
3492907-04600-00 ...WASHER...WASHER
-
355GH-14937-00-00 ...CLIP...CLIP
-
364KM-14142-17-00 ...JET, PILOT (#17.5)...JET, PILOT (#17.5)
-
375ND-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
385FU-E4155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
395GH-14103-01-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
405GH-14918-00-00 ...RING...RING
-
414XE-14937-00-00 ...CLIP...CLIP
-
42256-14956-01-00 ...WASHER...WASHER
-
433DM-14216-00-00 ...SCREW...SCREW
