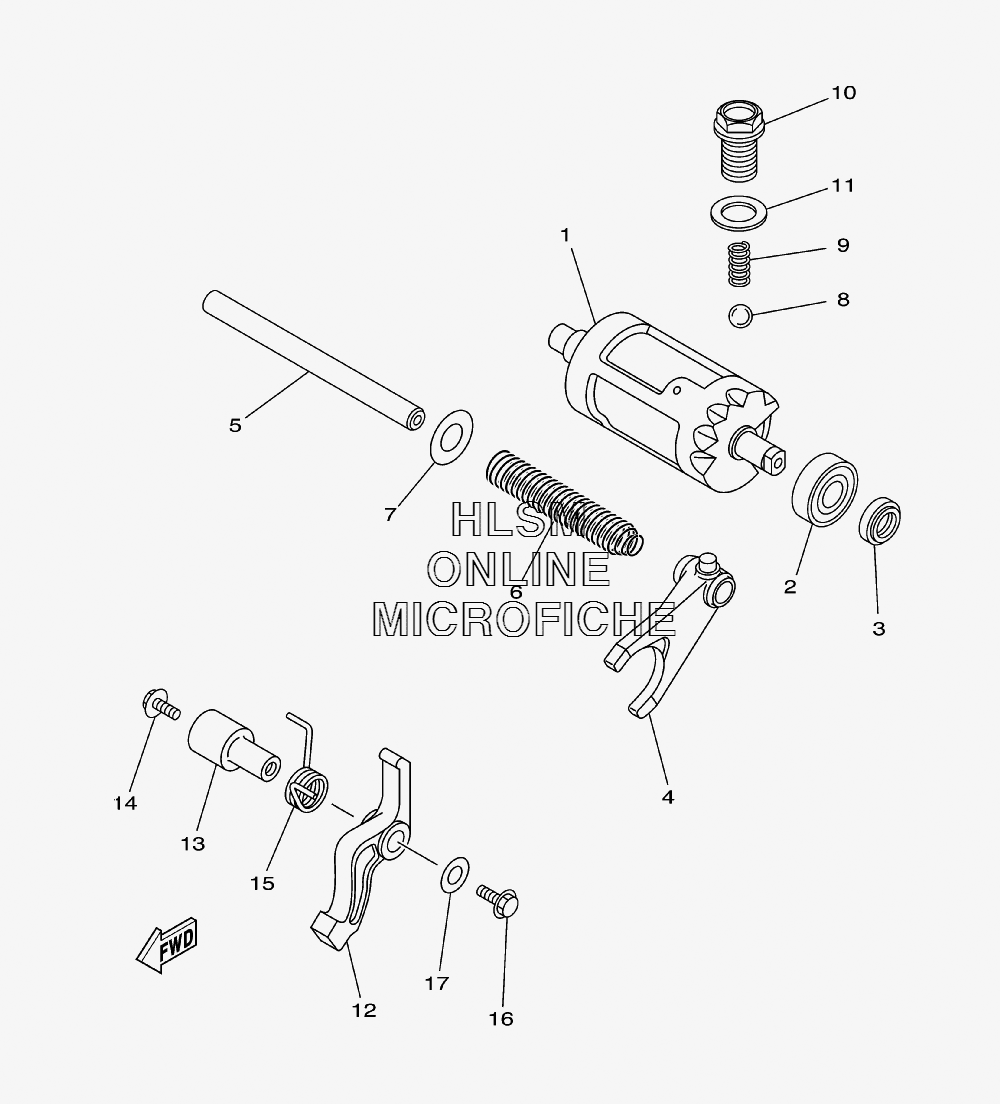

SHIFT CAM W/ FORK для Yamaha WOLVERINE 450 SPORT SE - 2007 года выпуска
-
№АртикулНазвание
-
11P1-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-00208-00 BEARINGBEARING
-
393102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
41D9-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
54KB-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
690501-160A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
790201-15564-00 WASHER, PLATE (1.5T)WASHER, PLATE (1.5T)
-
893503-08007-00 BALL 3/8BALL 3/8
-
990501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1190430-14194-00 GASKETGASKET
-
125GH-18148-00-00 LEVER, STOPPERLEVER, STOPPER
-
135GH-1812E-00-00 SHAFT, STOPPERSHAFT, STOPPER
-
1495027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590508-235B7-00 SPRING, TORSIONSPRING, TORSION
-
1695027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-06060-00 WASHER, PLATEWASHER, PLATE
