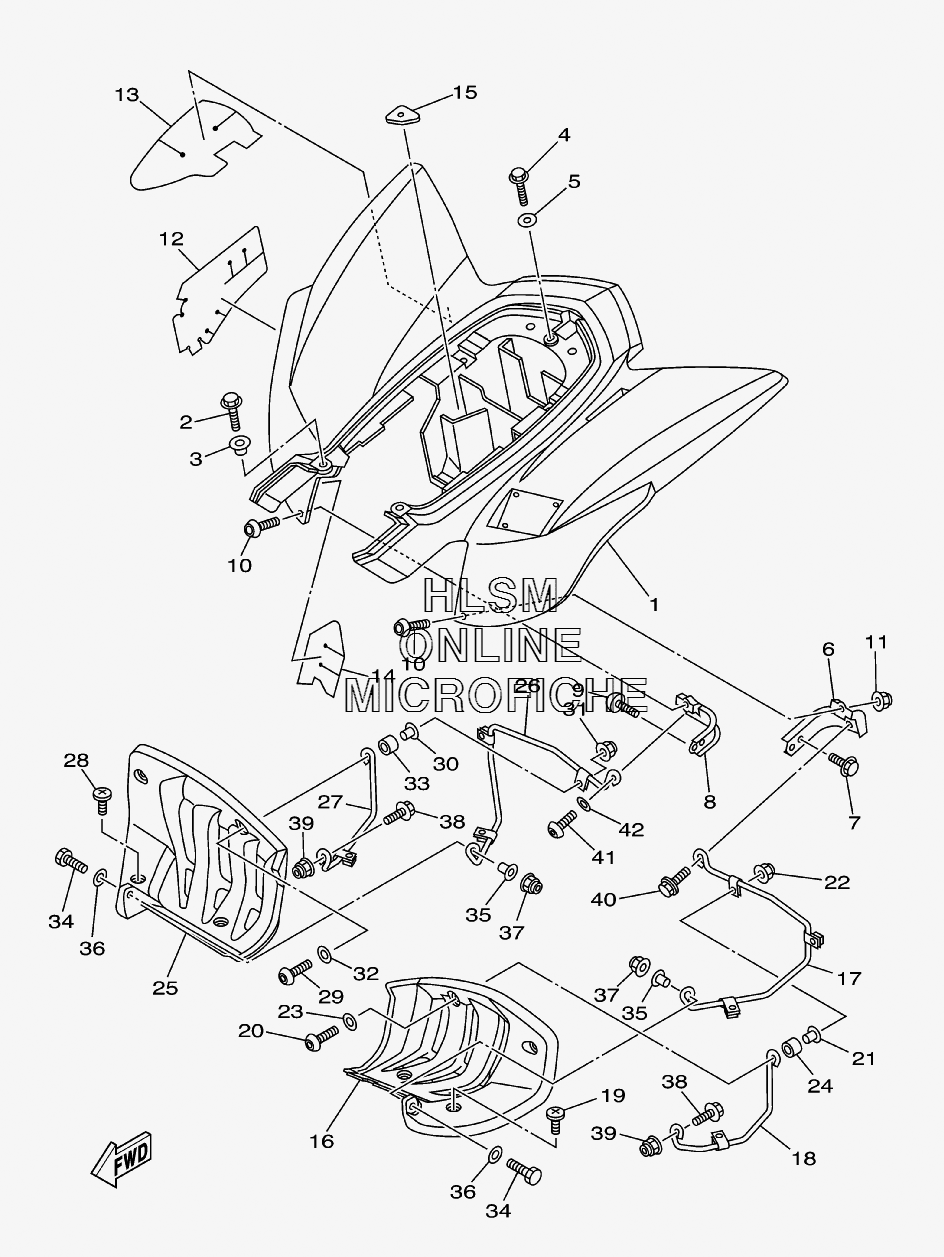

FENDER - REAR для Yamaha YFZ450 - 2007 года выпуска
-
№АртикулНазвание
-
15TG-W2161-02-00 REAR FENDER COMP. FOR DPBSEREAR FENDER COMP. FOR DPBSE
-
15TG-W2161-52-00 REAR FENDER COMP. FOR PGDREAR FENDER COMP. FOR PGD
-
290105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
390387-06146-00 COLLARCOLLAR
-
490105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06087-00 WASHER, PLATEWASHER, PLATE
-
65TG-21643-10-00 STAY, REARSTAY, REAR
-
795822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
85TG-21644-20-00 STAY, REARSTAY, REAR
-
992012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125TG-2163A-01-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
135TG-2163E-10-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
145TG-2163F-10-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
155TG-21639-00-00 DAMPER 2DAMPER 2
-
165TG-21621-00-00 FLAPFLAP
-
175D3-2164F-00-00 STAY 1STAY 1
-
185D3-2164H-00-00 STAY 3STAY 3
-
1990154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2092017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190560-06201-00 SPACERSPACER
-
2295607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
2390201-06778-00 WASHER, PLATEWASHER, PLATE
-
2490387-06081-00 COLLARCOLLAR
-
255TG-21691-00-00 FLAPFLAP
-
265D3-2164G-00-00 STAY 2STAY 2
-
275D3-2164J-00-00 STAY 4STAY 4
-
2890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2992017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090560-06201-00 SPACERSPACER
-
3195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3290201-06778-00 WASHER, PLATEWASHER, PLATE
-
3390387-06081-00 COLLARCOLLAR
-
3497017-06025-00 BOLTBOLT
-
3590387-06074-00 COLLARCOLLAR
-
3690201-06093-00 WASHER, PLATEWASHER, PLATE
-
3795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3895827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4095827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4192017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4290201-086P8-00 WASHER, PLATEWASHER, PLATE
