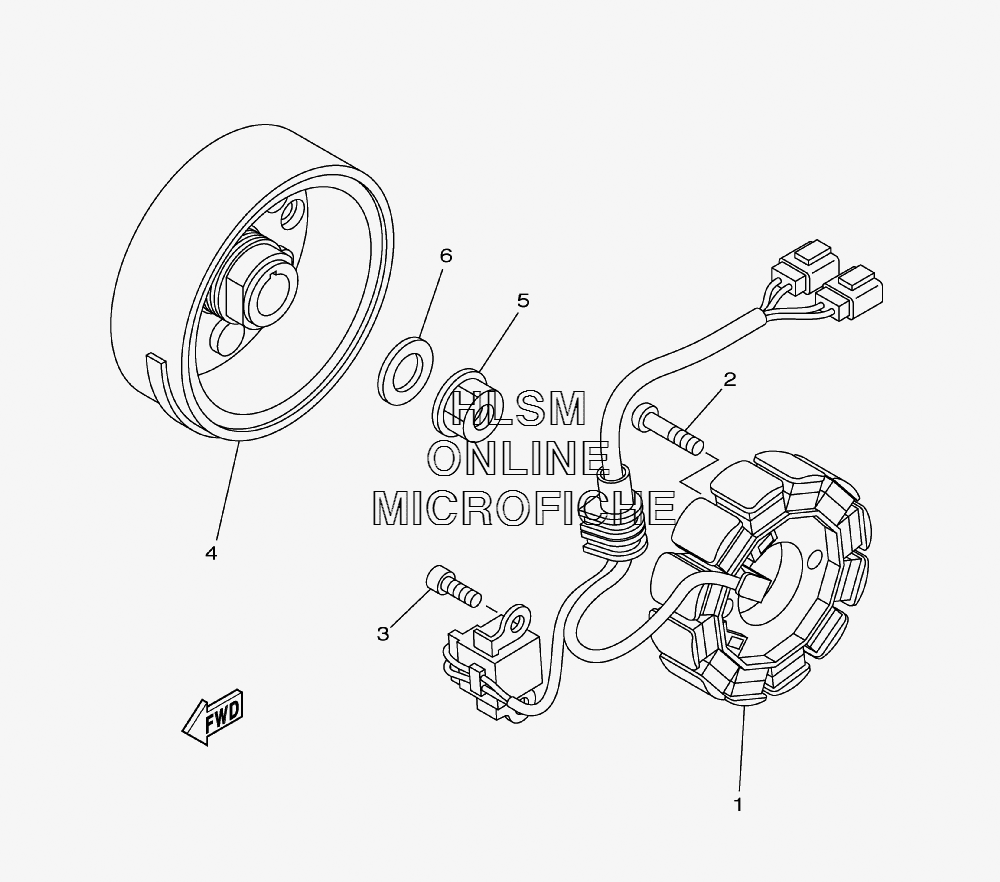

GENERATOR для Yamaha YFZ450 - 2007 года выпуска
-
№АртикулНазвание
-
15TG-81410-02-00 STATOR ASSYSTATOR ASSY
-
290149-05024-00 SCREWSCREW
-
391312-06014-00 BOLTBOLT
-
45TG-81450-01-00 ROTOR ASSYROTOR ASSY
-
590179-12657-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
690201-12020-00 WASHER, PLATEWASHER, PLATE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- • GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
