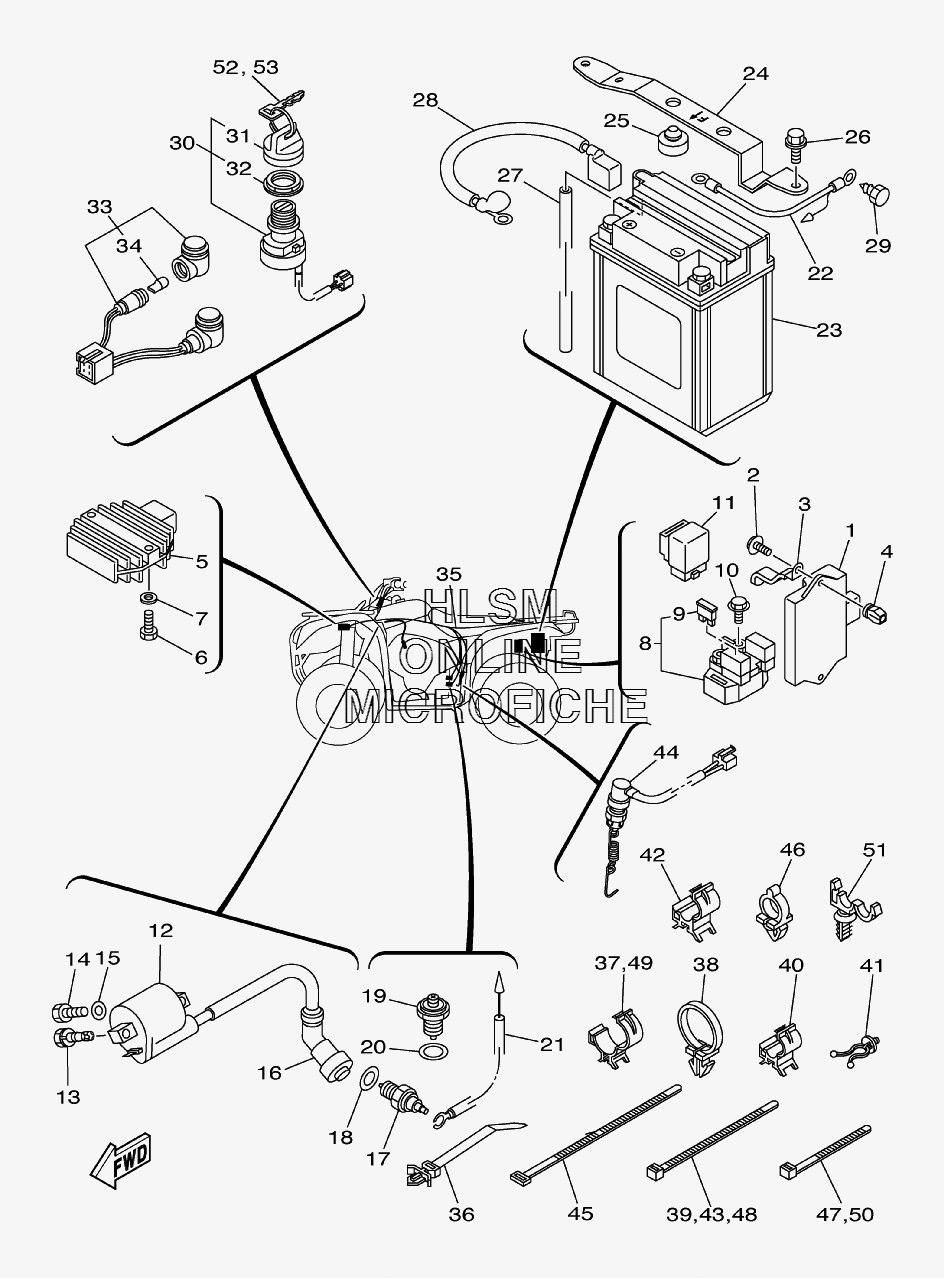

ELECTRICAL для Yamaha BIG BEAR 250 - 2008 года выпуска
-
№АртикулНазвание
-
11P0-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297702-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
55GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
697002-06020-00 BOLTBOLT
-
792902-06600-00 WASHER, PLATEWASHER, PLATE
-
84XE-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
92GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
111RL-81950-92-00 RELAY ASSYRELAY ASSY
-
124KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1390109-06873-00 BOLTBOLT
-
1497002-06020-00 BOLTBOLT
-
1592902-06600-00 WASHER, PLATEWASHER, PLATE
-
161UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
173GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1890430-10148-00 GASKETGASKET
-
194KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
2090201-12790-00 WASHER, PLATEWASHER, PLATE
-
215XG-H2507-00-00 WIRE, LEADWIRE, LEAD
-
221P0-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
23BTY-CB14A-A2-00 BATTERY ASSY (GS CB14A-A2)BATTERY ASSY (GS CB14A-A2)
-
241P0-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
255TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
2695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
271P0-H2112-00-00 PIPE, BREATHERPIPE, BREATHER
-
281P0-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
2997702-60416-00 SCREW, TAPPINGSCREW, TAPPING
-
304XE-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
313HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
323HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
335TE-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
345GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
351P0-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
3690464-25800-00 CLAMPCLAMP
-
3790464-20835-00 CLAMPCLAMP
-
3890464-19815-00 CLAMPCLAMP
-
3990464-40825-00 CLAMPCLAMP
-
4090464-08834-00 CLAMPCLAMP
-
4190464-12836-00 CLAMPCLAMP
-
4290464-10842-00 CLAMPCLAMP
-
4390464-40825-00 CLAMPCLAMP
-
444XE-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
4590464-48800-00 CLAMPCLAMP
-
4690464-10833-00 CLAMPCLAMP
-
4790464-31827-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
4990464-20835-00 CLAMPCLAMP
-
5090464-31827-00 CLAMPCLAMP
-
5190464-12830-00 CLAMPCLAMP
-
5290890-560001-00 KEY BLANK (A-TYPE) (OPT)KEY BLANK (A-TYPE) (OPT)
-
5390890-560002-00 KEY BLANK (B-TYPE) (OPT)KEY BLANK (B-TYPE) (OPT)
