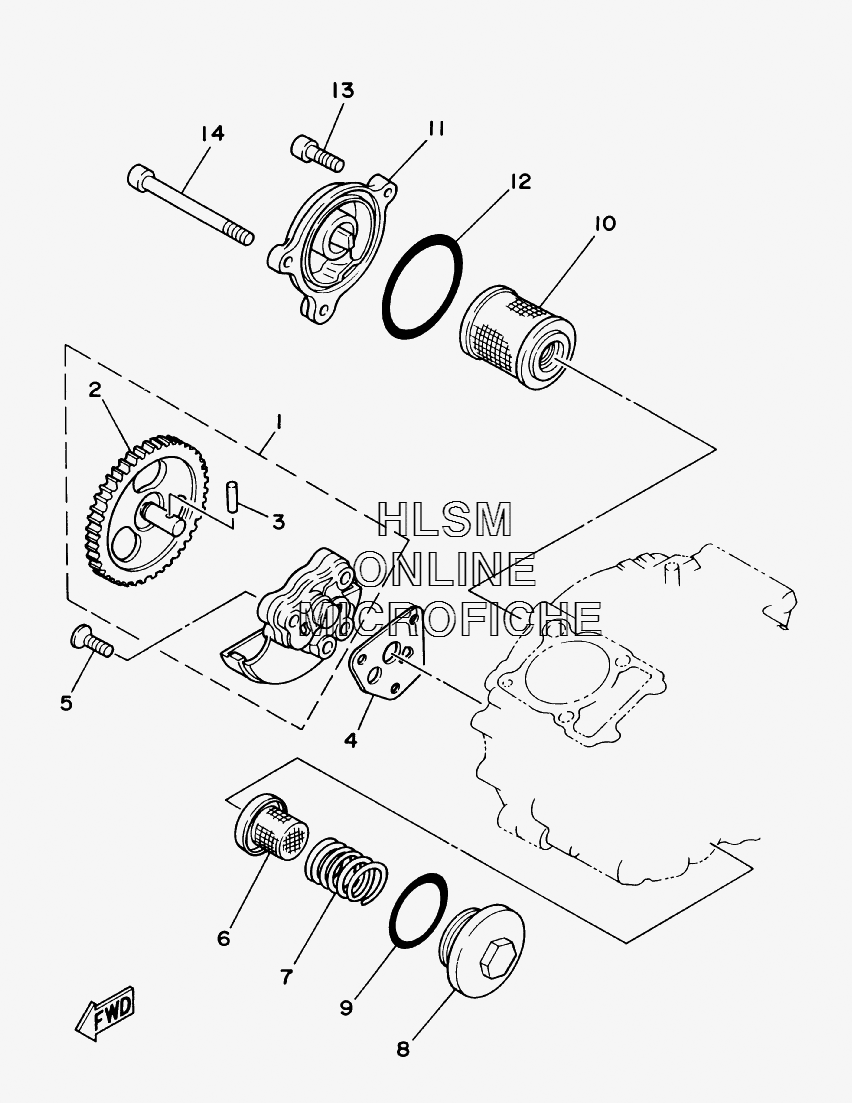

OIL PUMP для Yamaha BIG BEAR 250 - 2008 года выпуска
-
№АртикулНазвание
-
15XG-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25XG-E3326-00-00 ...GEAR, PUMP DRIVEN 2...GEAR, PUMP DRIVEN 2
-
393603-12801-00 ...PIN, DOWEL...PIN, DOWEL
-
44BE-13329-01-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
598702-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
651Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
790501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
85XG-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
993210-34800-00 O-RINGO-RING
-
103UH-E3440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
115XG-E3447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1293210-548A1-00 O-RINGO-RING
-
1391317-06020-00 BOLTBOLT
-
1491317-06115-00 BOLTBOLT
