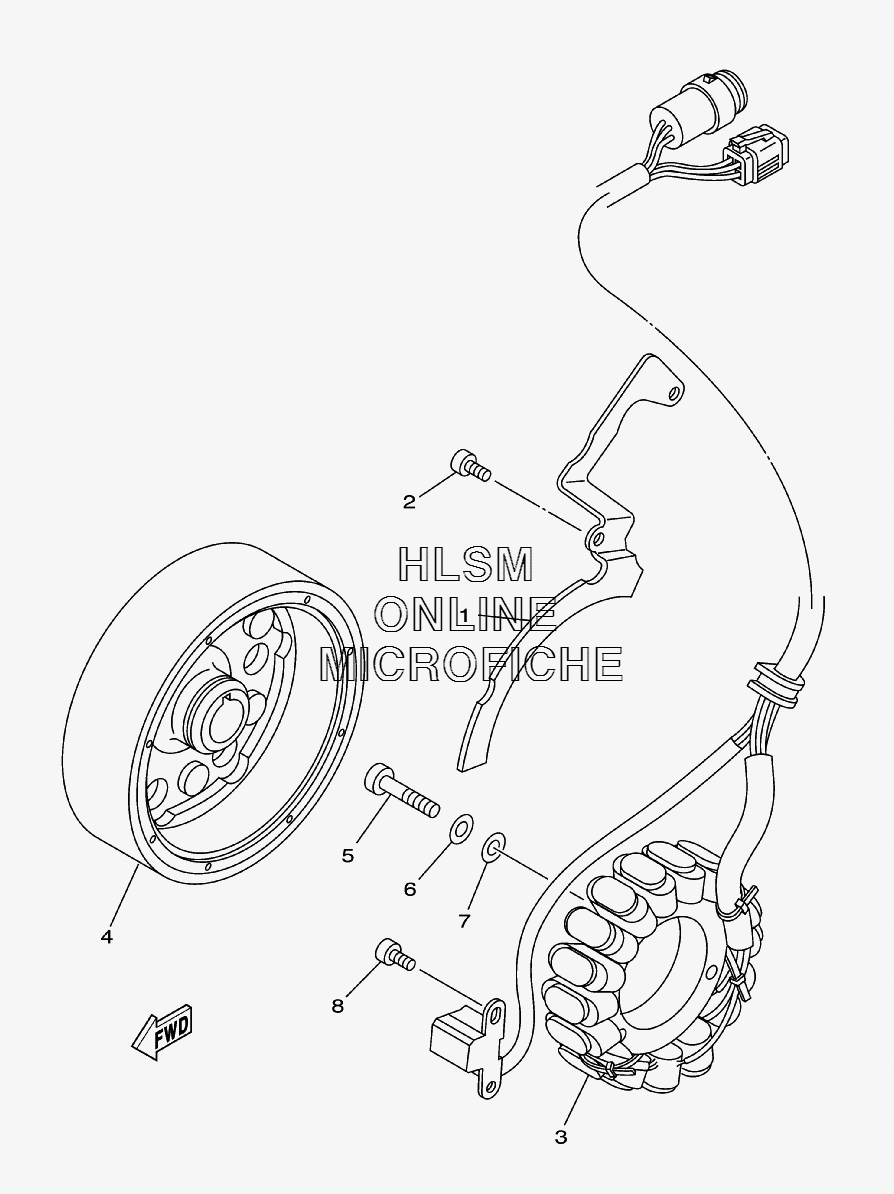

GENERATOR для Yamaha BIG BEAR 400 4WD HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
14KB-15113-10-00 PLATEPLATE
-
291312-05012-00 BOLTBOLT
-
35FU-81410-00-00 STATOR ASSYSTATOR ASSY
-
44KB-85550-11-00 ROTOR ASSYROTOR ASSY
-
592502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692902-06100-00 WASHER, SPRINGWASHER, SPRING
-
792902-06600-00 WASHER, PLATEWASHER, PLATE
-
891312-05012-00 BOLTBOLT
