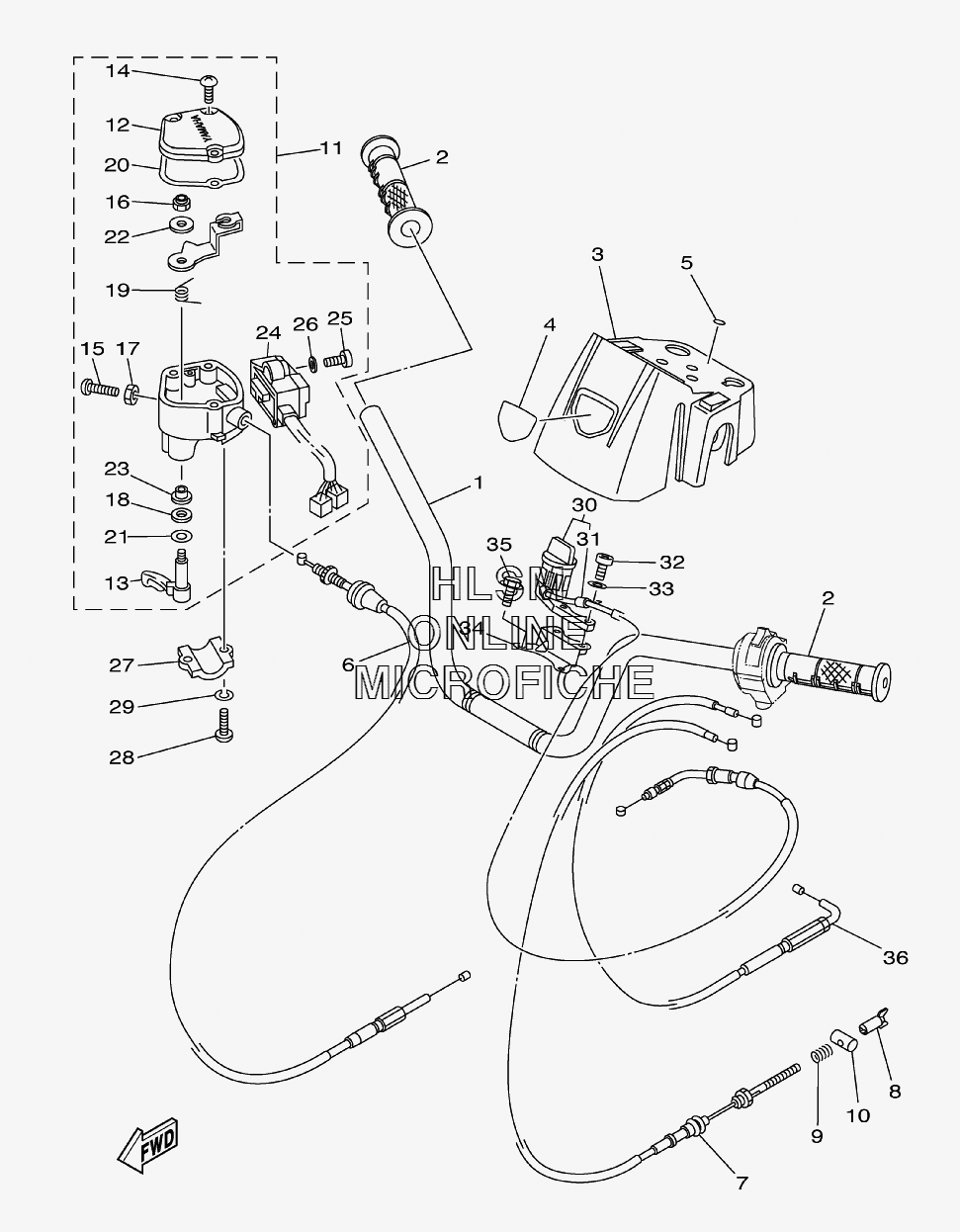

HANDLEBAR W/ CABLES для Yamaha BIG BEAR 400 4WD HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
34S1-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
43B4-26232-01-00 EMBLEM 3DEMBLEM 3D
-
55FU-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
65FU-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
74S1-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
84S1-F6343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
990501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
115KM-26250-20-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
124KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
131NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1490149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1695607-05100-00 ...NUT, U...NUT, U
-
1795307-05700-00 ...NUT...NUT
-
1893104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
191NV-26304-00-00 ...SPRING...SPRING
-
204KB-2628G-00-00 ...GASKET...GASKET
-
211NV-26129-00-00 ...WASHER...WASHER
-
221NV-26398-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
231NV-2625K-00-00 ...COLLAR...COLLAR
-
245KM-83976-20-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
2598507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2692907-04600-00 ...WASHER...WASHER
-
274V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2898502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2992902-05600-00 WASHER, PLATEWASHER, PLATE
-
304KB-26150-10-00 REV. LEVER ASSY.REV. LEVER ASSY.
-
314KB-2637E-10-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
3298502-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392902-05600-00 WASHER, PLATEWASHER, PLATE
-
345FU-F612E-00-00 BRACKETBRACKET
-
3595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365FU-26331-30-00 CABLE, STARTER 1CABLE, STARTER 1
