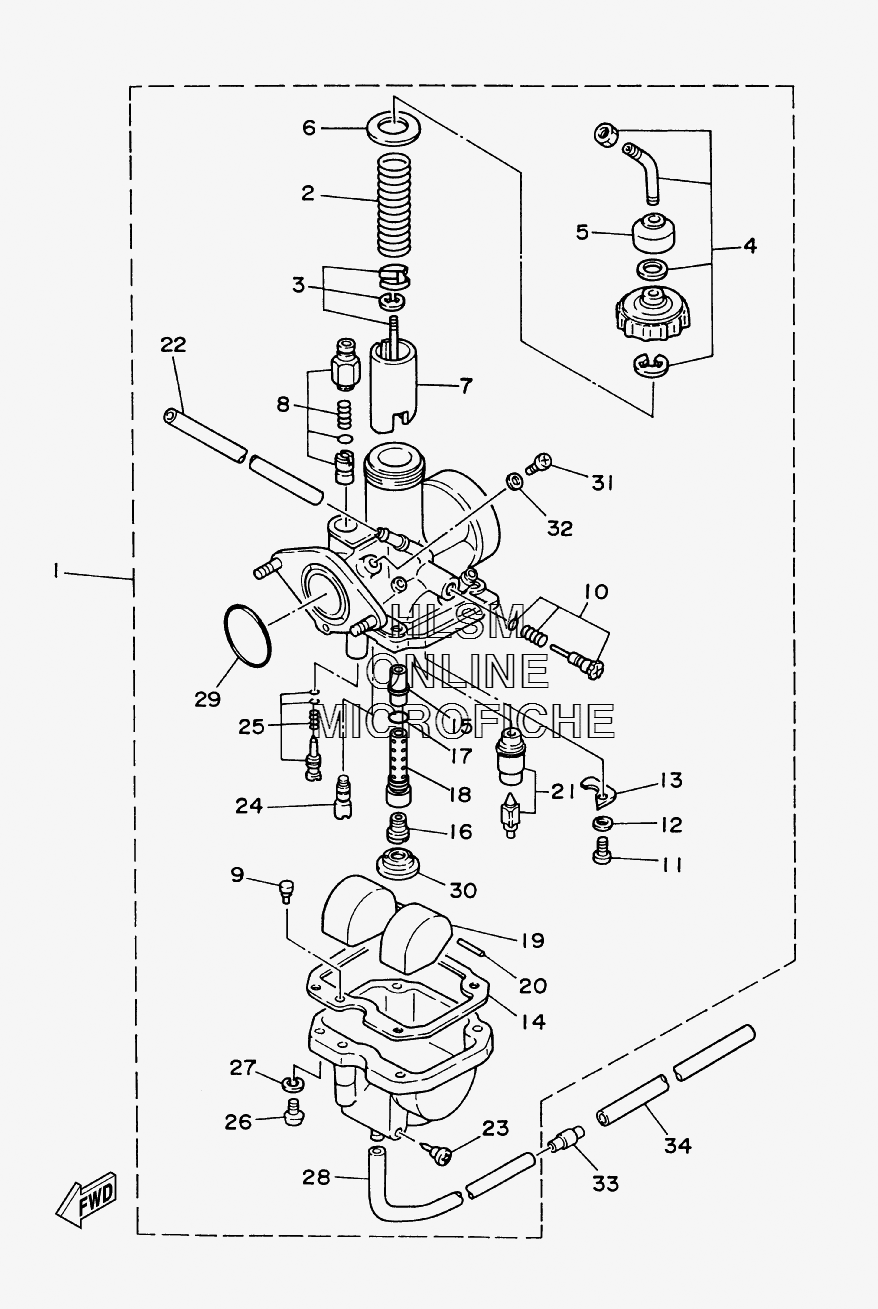

CARBURETOR для Yamaha GRIZZLY 125 - 2008 года выпуска
-
№АртикулНазвание
-
15VJ-14101-20-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
221V-14131-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
33FA-1490J-10-00 ...NEEDLE SET...NEEDLE SET
-
410X-14106-00-00 ...CABLE ADJUST SCREW SET...CABLE ADJUST SCREW SET
-
53X3-14169-00-00 ...CAP...CAP
-
64U5-14126-00-00 ...GASKET...GASKET
-
73FA-14112-25-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
85VJ-1410A-00-00 ...STARTER SET...STARTER SET
-
918M-14144-09-00 ...JET, STARTER...JET, STARTER
-
1018G-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
1197802-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1292902-03100-00 ...WASHER...WASHER
-
1321V-14146-00-00 ...PLATE...PLATE
-
1424W-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
1521V-1414M-31-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
16620-1423A-66-00 ...JET, MAIN (#77.5)...JET, MAIN (#77.5)
-
17583-14561-00-00 ...O-RING...O-RING
-
183FA-14148-00-00 ...PIPE...PIPE
-
1921V-14185-00-00 ...FLOAT...FLOAT
-
20127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
2121V-14190-18-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
223FA-14197-00-00 ...PIPE...PIPE
-
2312R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
241NT-14142-12-00 ...JET, PILOT (#12.5)...JET, PILOT (#12.5)
-
253KW-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
2698502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2792902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
2829U-14197-00-00 ...PIPE...PIPE
-
2924W-14147-00-00 ...O-RING...O-RING
-
305V7-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
3192502-06008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3259V-14962-00-00 ...WASHER...WASHER
-
3324W-14193-00-00 PIPEPIPE
-
3491A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
