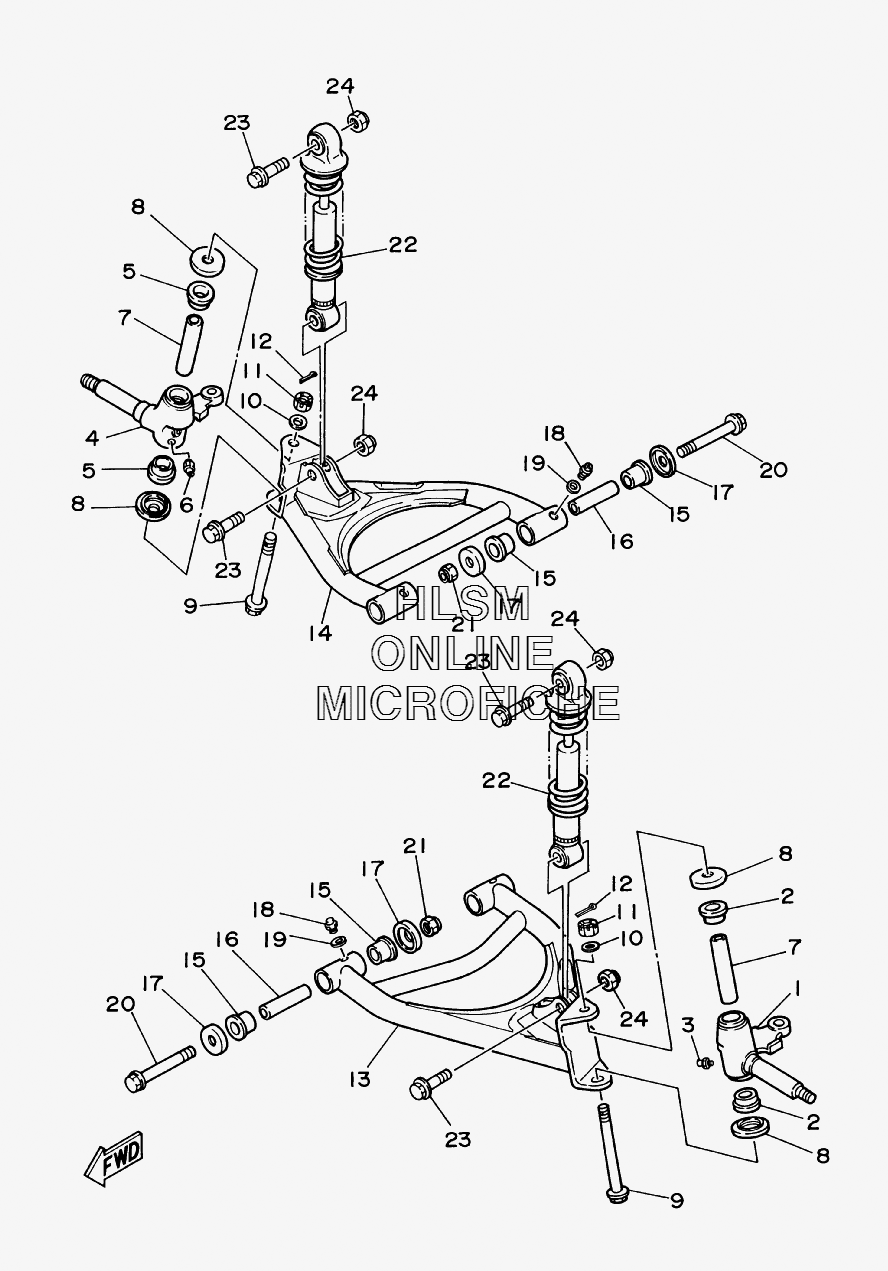

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 125 - 2008 года выпуска
-
№АртикулНазвание
-
13FA-23511-01-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
290381-17067-00 BUSH, SOLIDBUSH, SOLID
-
393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
43FA-23521-01-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
590381-17067-00 BUSH, SOLIDBUSH, SOLID
-
693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
73GB-23448-00-00 SPACERSPACER
-
82NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
990105-10274-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10057-00 WASHER, PLATEWASHER, PLATE
-
1190171-10003-00 NUT, CASTLENUT, CASTLE
-
1291401-20020-00 PIN, COTTERPIN, COTTER
-
133FA-23570-00-33 FRONT LOWER ARM COMP. (LEFT) (BLACK)FRONT LOWER ARM COMP. (LEFT) (BLACK)
-
143FA-23580-00-33 FRONT LOWER ARM COMP. (RIGHT) (BLACK)FRONT LOWER ARM COMP. (RIGHT) (BLACK)
-
1590381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1690387-101R3-00 COLLARCOLLAR
-
175YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1992902-06200-00 WASHERWASHER
-
2090105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
2190185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
223FA-23350-00-33 SHOCK ABSORBER ASSY (BLACK)SHOCK ABSORBER ASSY (BLACK)
-
2390105-10262-00 BOLT, FLANGEBOLT, FLANGE
-
2490185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
