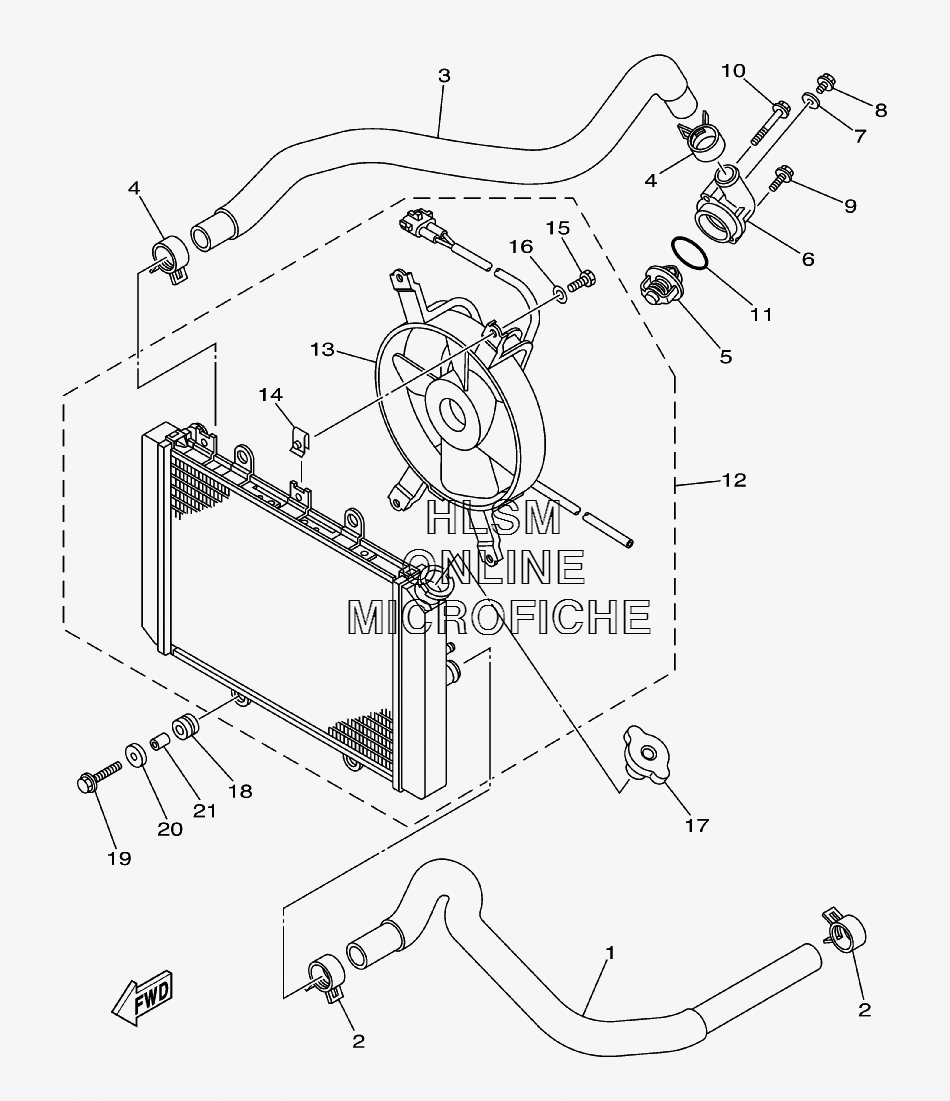

RADIATOR ASSY для Yamaha GRIZZLY 700 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
13B4-12576-00-00 HOSE 1HOSE 1
-
290467-26189-00 CLIPCLIP
-
33B4-12578-00-00 HOSE 3HOSE 3
-
490467-26189-00 CLIPCLIP
-
53B4-12411-00-00 THERMOSTATTHERMOSTAT
-
61S3-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
790430-06014-00 GASKETGASKET
-
895022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1095022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1193210-41042-00 O-RINGO-RING
-
123B4-1240A-10-00 RADIATOR ASSYRADIATOR ASSY
-
133B4-12405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
141AA-12535-00-00 ...PLATE...PLATE
-
1597017-06010-00 ...BOLT...BOLT
-
1692907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1722W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
1890480-15235-00 GROMMETGROMMET
-
1995802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2090209-06012-00 WASHERWASHER
-
2190387-06113-00 COLLARCOLLAR
