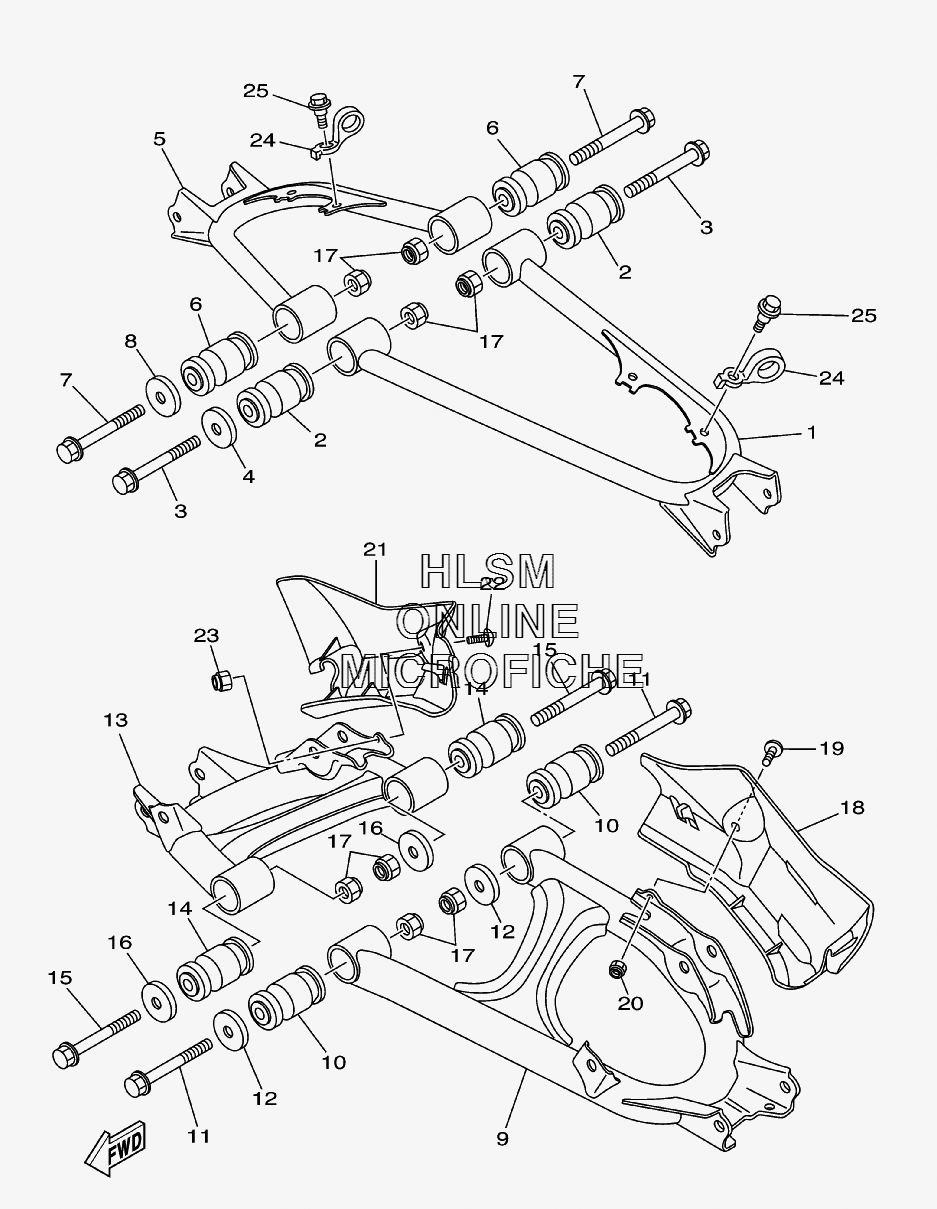

SUSPENSION - REAR ARM для Yamaha GRIZZLY 700 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
13B4-22171-00-00 ARM, REAR 1ARM, REAR 1
-
25KM-23526-10-00 BUSHBUSH
-
390105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-10-00 WASHERWASHER
-
53B4-22172-00-00 ARM, REAR 2ARM, REAR 2
-
65KM-23526-10-00 BUSHBUSH
-
790105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-10-00 WASHERWASHER
-
93B4-2217M-00-00 ARM 1ARM 1
-
105KM-23526-10-00 BUSHBUSH
-
1190105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
125KM-22149-10-00 WASHERWASHER
-
133B4-2217N-00-00 ARM 2ARM 2
-
145KM-23526-10-00 BUSHBUSH
-
1590105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
165KM-22149-10-00 WASHERWASHER
-
1790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
183B4-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2095702-06300-00 NUT, NYLONNUT, NYLON
-
213B4-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2395702-06300-00 NUT, NYLONNUT, NYLON
-
243B4-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2590109-06172-00 BOLTBOLT
