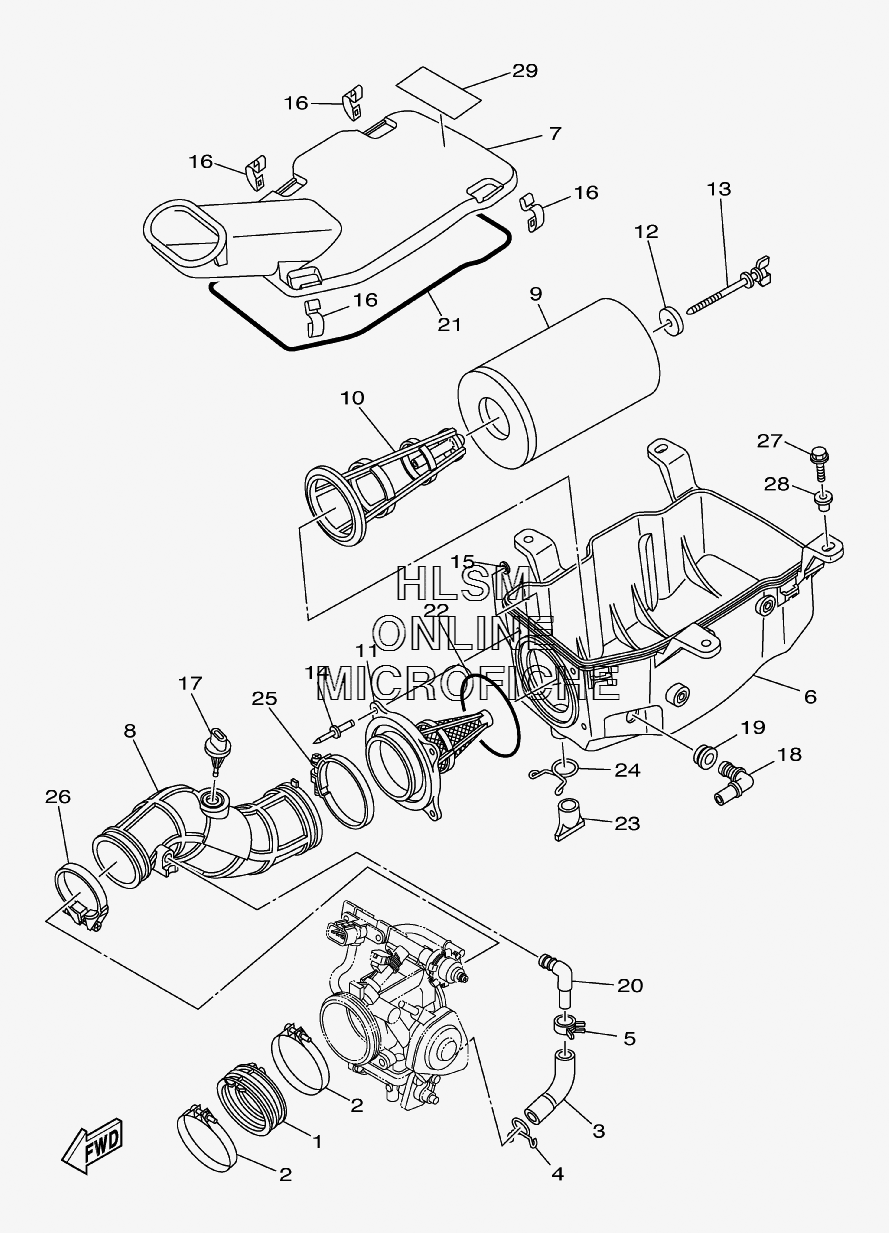

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 700 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
15VK-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-72003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
31S3-13545-00-00 HOSE 1HOSE 1
-
490467-160A4-00 CLIPCLIP
-
590467-15012-00 CLIP, SCISSORCLIP, SCISSOR
-
61S3-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
71S3-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
81S3-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
91S3-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
101S3-14458-00-00 GUIDEGUIDE
-
111S3-14459-01-00 HOLDER, GUIDEHOLDER, GUIDE
-
1290209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
1390122-06010-00 BOLT, WINGBOLT, WING
-
1490267-48138-00 RIVET, BLINDRIVET, BLIND
-
1590201-04028-00 WASHER, PLATEWASHER, PLATE
-
165GH-14436-00-00 HOOKHOOK
-
175VU-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
185KM-14419-00-00 PIPEPIPE
-
1931A-14435-00-00 GROMMETGROMMET
-
2031A-14419-00-00 PIPEPIPE
-
2110M-14457-00-00 SEALSEAL
-
221S3-14457-00-00 SEALSEAL
-
2359V-14457-00-00 SEALSEAL
-
2490467-220A1-00 CLIPCLIP
-
2590460-75020-00 CLAMP, HOSECLAMP, HOSE
-
2690450-59006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2790105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2890387-08073-00 COLLARCOLLAR
-
291S3-2177C-20-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
