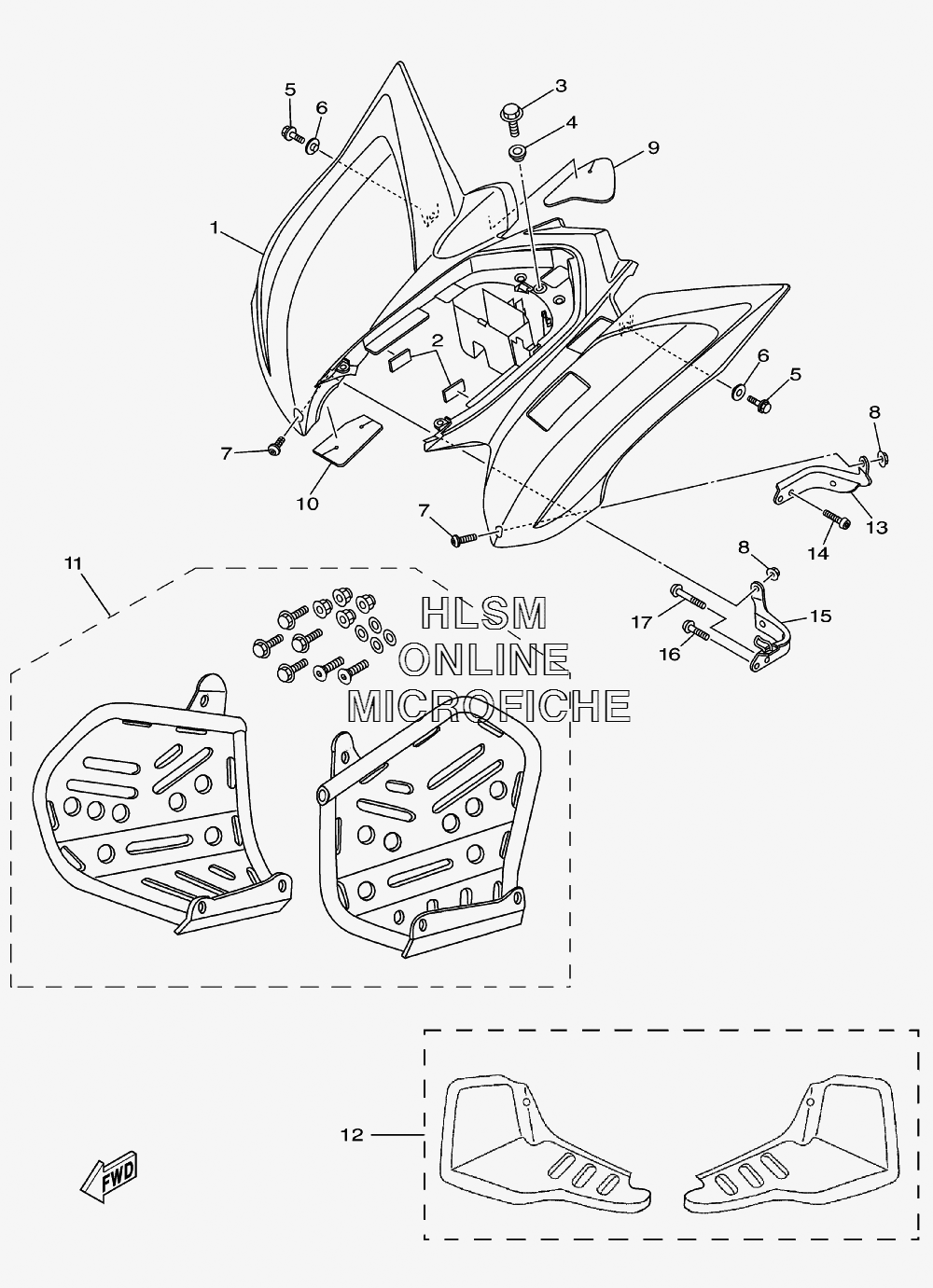

REAR FENDER ASSEMBLY для Yamaha RAPTOR 700 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
11S3-W2161-40-00 REAR FENDER COMP.REAR FENDER COMP.
-
21S3-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
390105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
490387-06153-00 COLLARCOLLAR
-
595812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
690387-06153-00 COLLARCOLLAR
-
790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
91S3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
101S3-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
11GYT-1S357-00-AL FOOTWELL KIT (PLUS HARDWEAR)FOOTWELL KIT (PLUS HARDWEAR)
-
12GYT-5TG57-50-BK FOOTWELL EXTENSION (PLUS HARDWEAR)FOOTWELL EXTENSION (PLUS HARDWEAR)
-
131S3-21643-10-00 STAY, REARSTAY, REAR
-
1492012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151S3-21644-10-00 STAY, REARSTAY, REAR
-
1692012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1792012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
