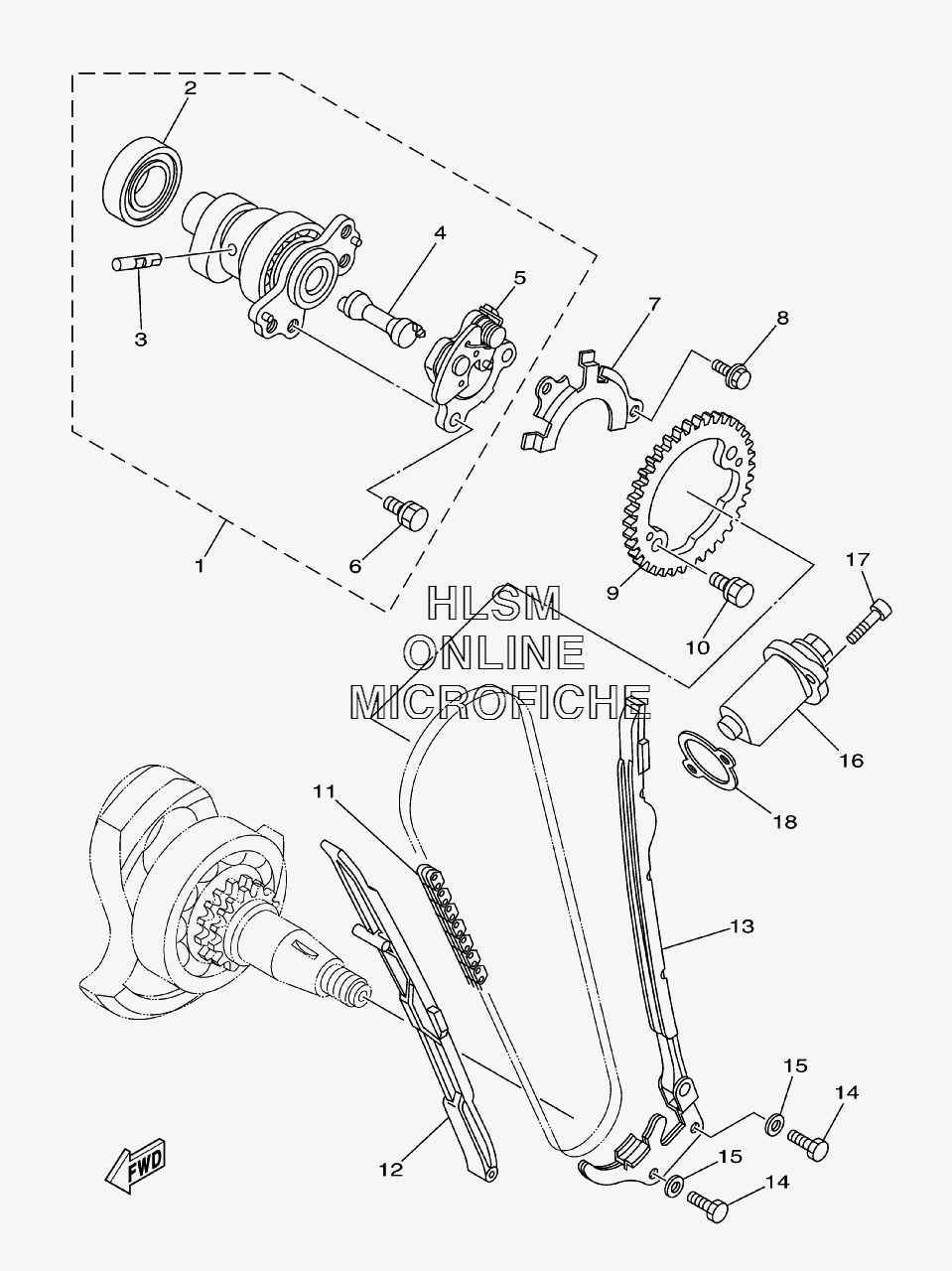

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 700 - 2008 года выпуска
-
№АртикулНазвание
-
11S3-12170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
293306-07209-00 ...BEARING...BEARING
-
35VK-12284-00-00 ...PIN, DECOMPRESSION LEVER...PIN, DECOMPRESSION LEVER
-
41S3-12290-00-00 ...LEVER, DECOMPRESSION SPRING...LEVER, DECOMPRESSION SPRING
-
51S3-12280-01-00 ...DECOMPRESSION ASSY...DECOMPRESSION ASSY
-
690105-07004-00 ...BOLT, FLANGE...BOLT, FLANGE
-
75VK-1111F-00-00 PLATEPLATE
-
890105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
91S3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1090105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
1194591-57126-00 CHAIN (98XRH2010-126M)CHAIN (98XRH2010-126M)
-
125VK-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
131S3-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1497022-06016-00 BOLTBOLT
-
1592902-06600-00 WASHER, PLATEWASHER, PLATE
-
163TB-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1791312-06025-00 BOLTBOLT
-
184DW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
