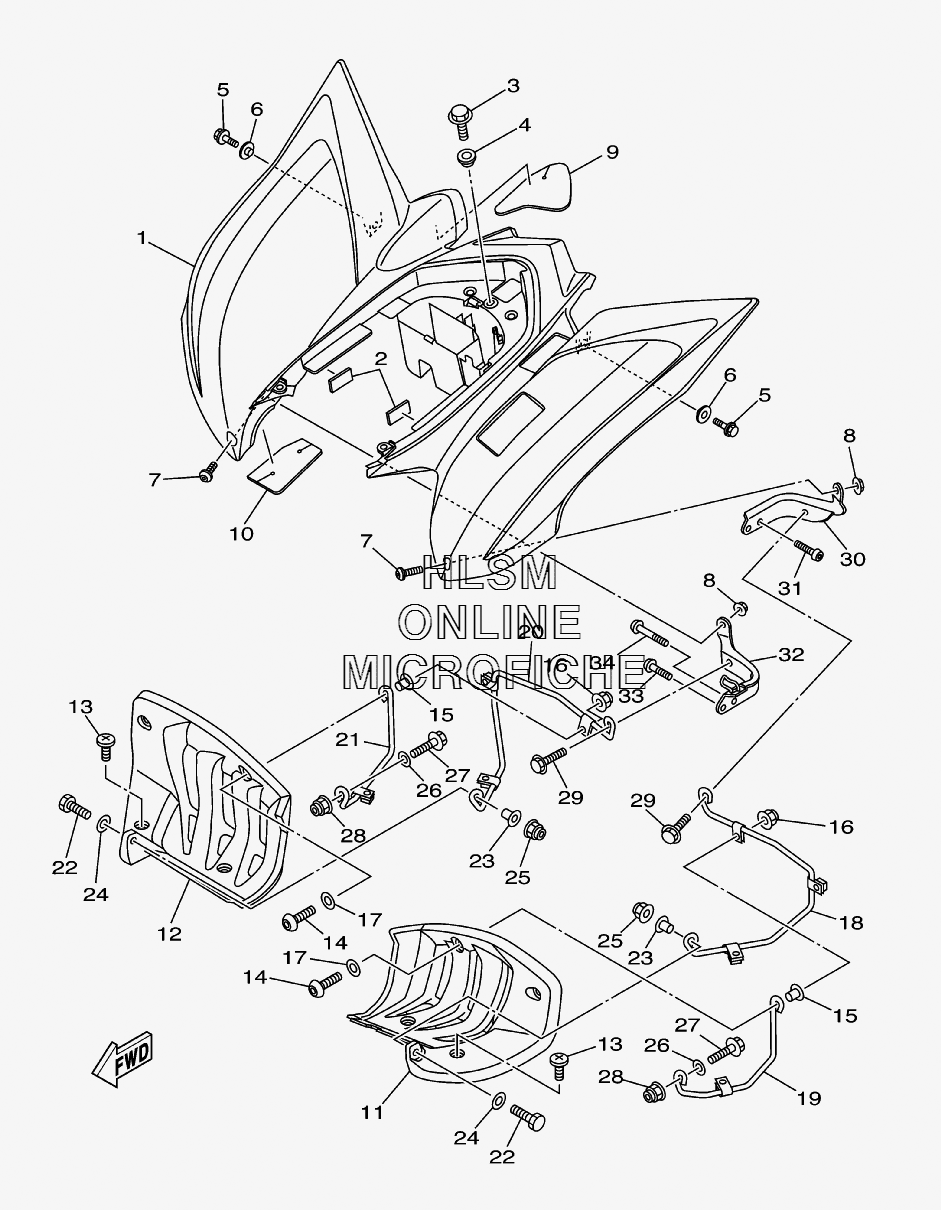

FENDER - REAR для Yamaha RAPTOR 700 - 2008 года выпуска
-
№АртикулНазвание
-
11S3-W2161-00-00 REAR FENDER COMP. FOR DPBSEREAR FENDER COMP. FOR DPBSE
-
11S3-W2161-30-00 REAR FENDER COMP. FOR PGDREAR FENDER COMP. FOR PGD
-
21S3-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
390105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
490387-06153-00 COLLARCOLLAR
-
595812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
690387-06153-00 COLLARCOLLAR
-
790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
91S3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
101S3-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
115TG-21621-00-00 FLAPFLAP
-
125TG-21691-00-00 FLAPFLAP
-
1390154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1492012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590560-06201-00 SPACERSPACER
-
1695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790201-06076-00 WASHER, PLATEWASHER, PLATE
-
181S3-2164F-10-00 STAY 1STAY 1
-
191S3-2164H-10-00 STAY 3STAY 3
-
205TG-2164G-20-00 STAY 2STAY 2
-
211S3-2164J-10-00 STAY 4STAY 4
-
2297022-06025-00 BOLTBOLT
-
2390387-06204-00 COLLARCOLLAR
-
2490201-06093-00 WASHER, PLATEWASHER, PLATE
-
2595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690201-08053-00 WASHER, PLATEWASHER, PLATE
-
2795822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
301S3-21643-10-00 STAY, REARSTAY, REAR
-
3192012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
321S3-21644-10-00 STAY, REARSTAY, REAR
-
3392012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3492012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
