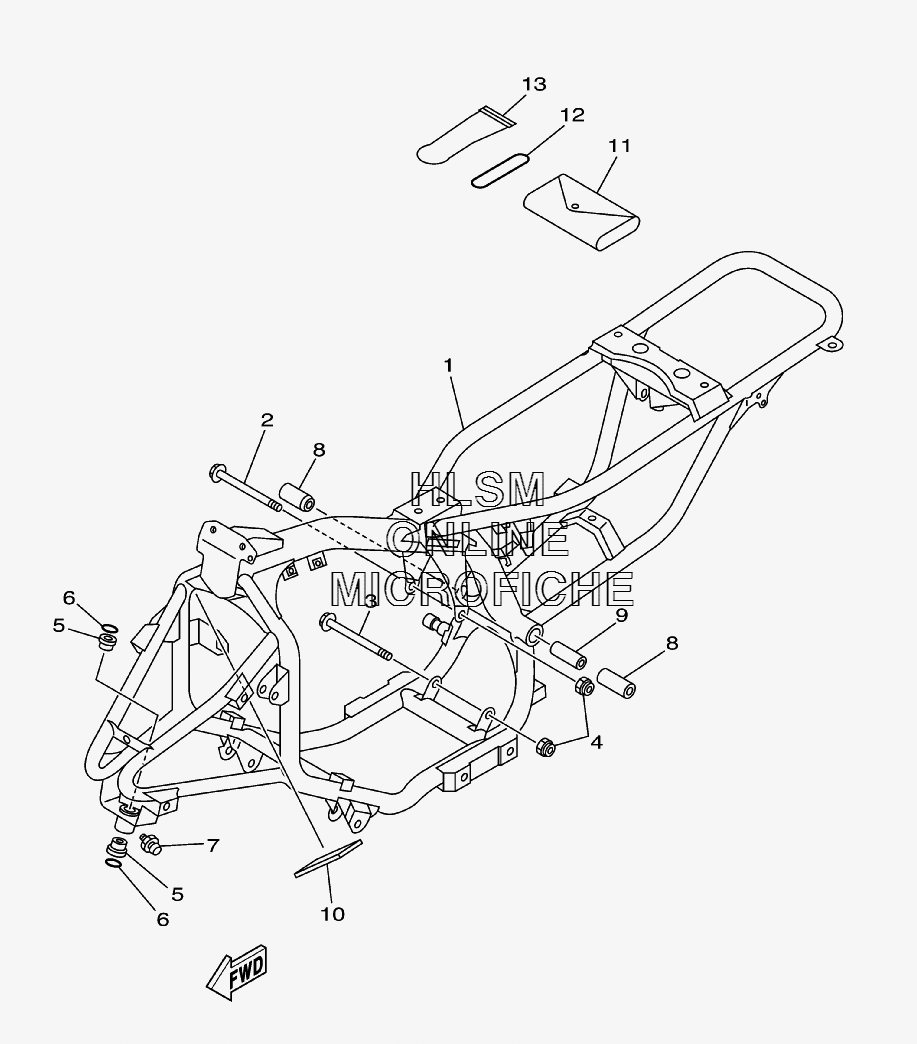

FRAME для Yamaha RAPTOR 80 - 2008 года выпуска
-
№АртикулНазвание
-
15TH-21110-20-00 FRAME COMP.FRAME COMP.
-
295812-08120-00 BOLT, FLANGEBOLT, FLANGE
-
395812-08120-00 BOLT, FLANGEBOLT, FLANGE
-
495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590381-15040-00 BUSH, SOLIDBUSH, SOLID
-
693210-15414-00 O-RINGO-RING
-
793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
83GB-22123-00-00 BUSH 1BUSH 1
-
93GB-22155-00-00 PIPEPIPE
-
105TH-21268-01-00 SEALSEAL
-
113GB-28100-00-00 TOOL KITTOOL KIT
-
1293210-40407-00 O-RINGO-RING
-
131NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- • FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
