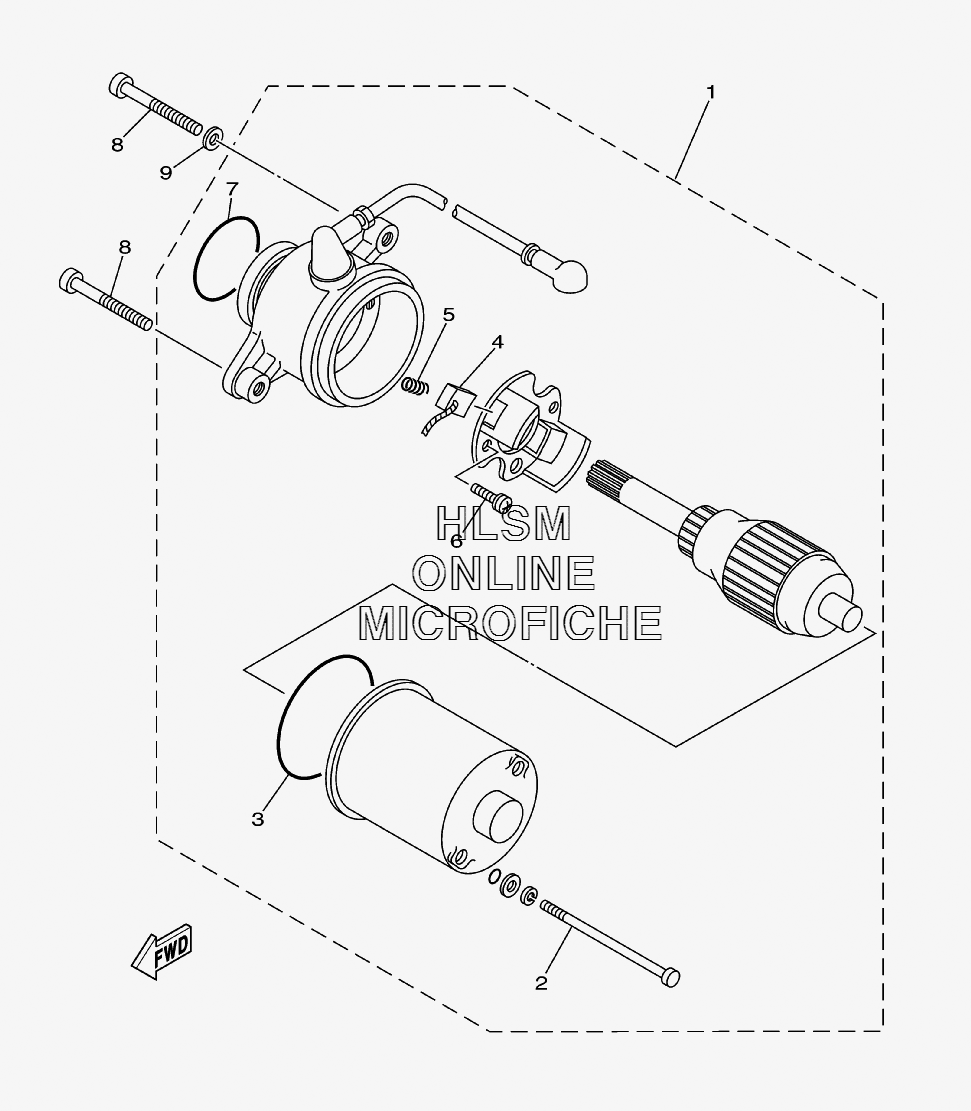

STARTING MOTOR для Yamaha RAPTOR 80 - 2008 года выпуска
-
№АртикулНазвание
-
155X-81800-51-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
255X-81826-50-00 ...BOLT...BOLT
-
35J3-81847-50-00 ...O-RING...O-RING
-
422J-81801-50-00 ...BRUSH SET...BRUSH SET
-
555X-81855-50-00 ...SPRING, BRUSH...SPRING, BRUSH
-
65J3-81846-50-00 ...SCREW...SCREW
-
722J-81847-50-00 ...O-RING...O-RING
-
891312-06035-00 BOLTBOLT
-
992902-06200-00 WASHERWASHER
