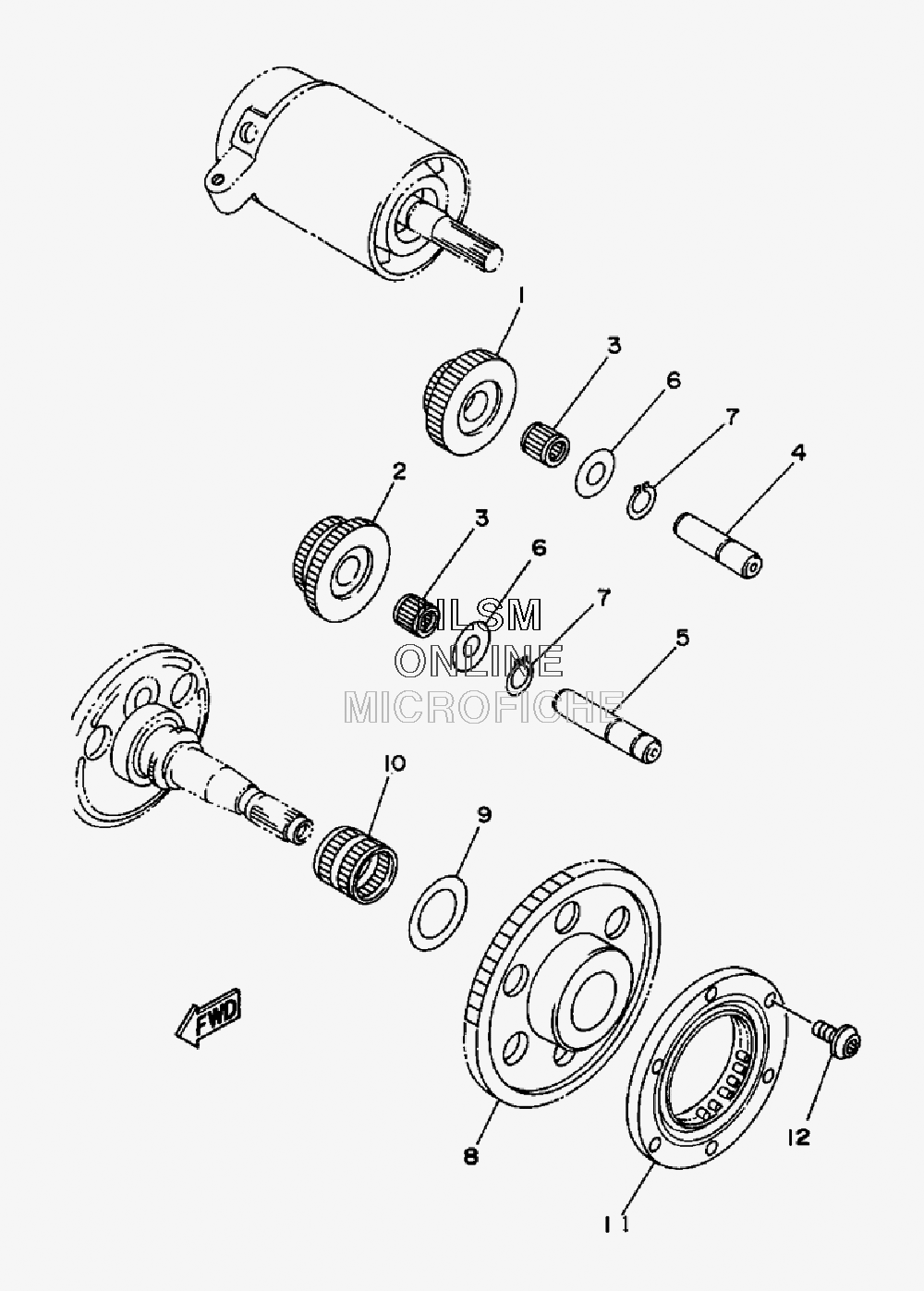

STARTER CLUTCH для Yamaha BIG BEAR 400 4X4 HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
14KB-15512-00-00 GEAR, IDLER 1 (14T/35T)GEAR, IDLER 1 (14T/35T)
-
24KB-15517-00-00 GEAR, IDLER 2 (18T/24T)GEAR, IDLER 2 (18T/24T)
-
393310-212R6-00 BEARINGBEARING
-
44KB-15521-01-00 SHAFT 1SHAFT 1
-
54KB-15522-01-00 SHAFT 2 (67 MM LENGTH)SHAFT 2 (67 MM LENGTH)
-
690201-123K4-00 WASHER, PLATEWASHER, PLATE
-
799009-12400-00 CIRCLIPCIRCLIP
-
81UY-15517-01-00 GEAR, IDLER 2 (65T)GEAR, IDLER 2 (65T)
-
990201-25291-00 WASHER, PLATEWASHER, PLATE
-
1093310-225N0-00 BEARING, CYL.#10BEARING, CYL.#10
-
111UY-15590-01-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
1291312-08016-00 BOLTBOLT
