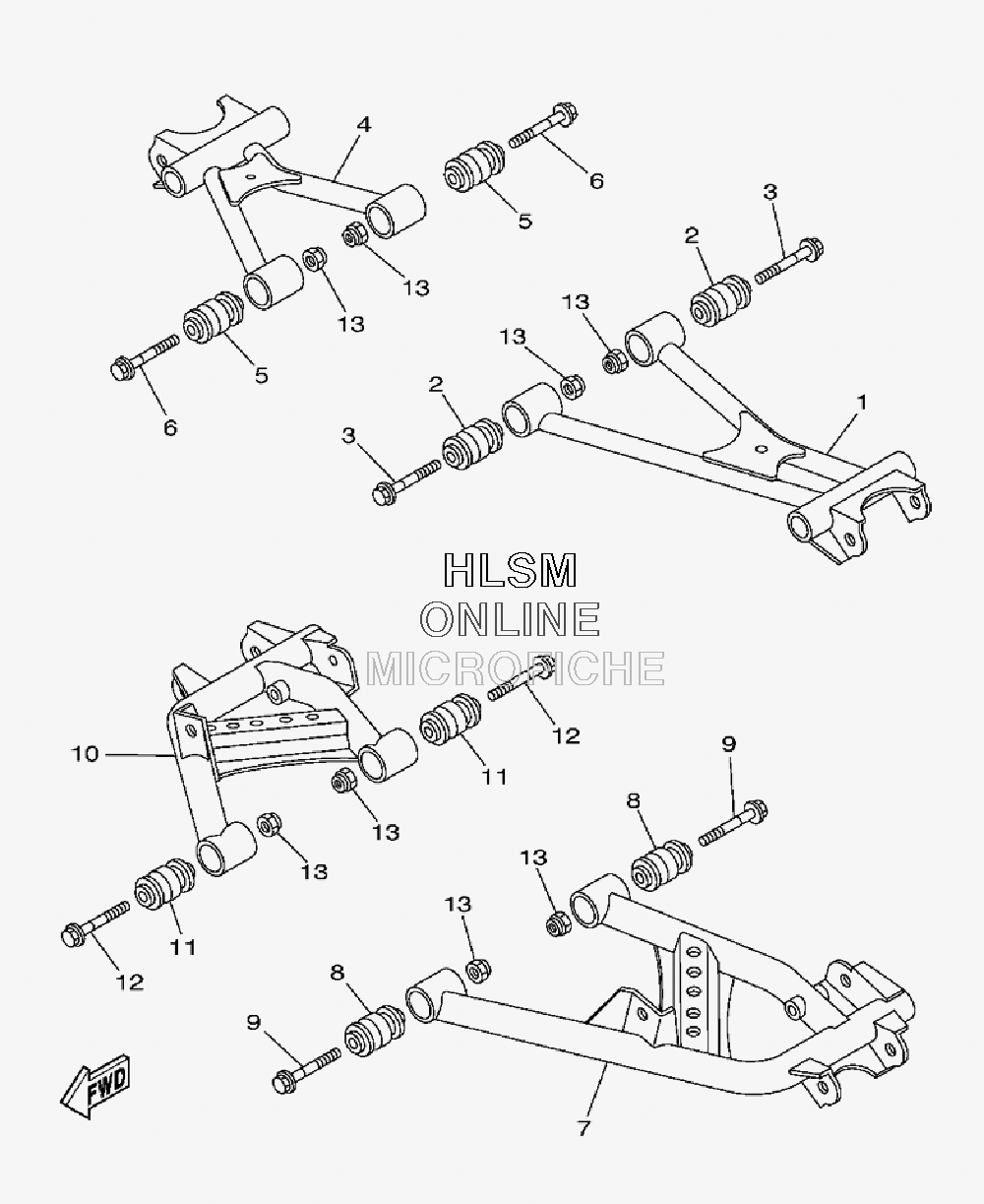

SUSPENSION - REAR ARM для Yamaha BIG BEAR 400 4X4 HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
11D9-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
25KM-23526-00-00 BUSHBUSH
-
390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
41D9-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
55KM-23526-00-00 BUSHBUSH
-
690105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
71D9-F217M-00-00 ARM 1ARM 1
-
85KM-23526-00-00 BUSHBUSH
-
990105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
101D9-F217N-00-00 ARM 2ARM 2
-
115KM-23526-00-00 BUSHBUSH
-
1290105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
