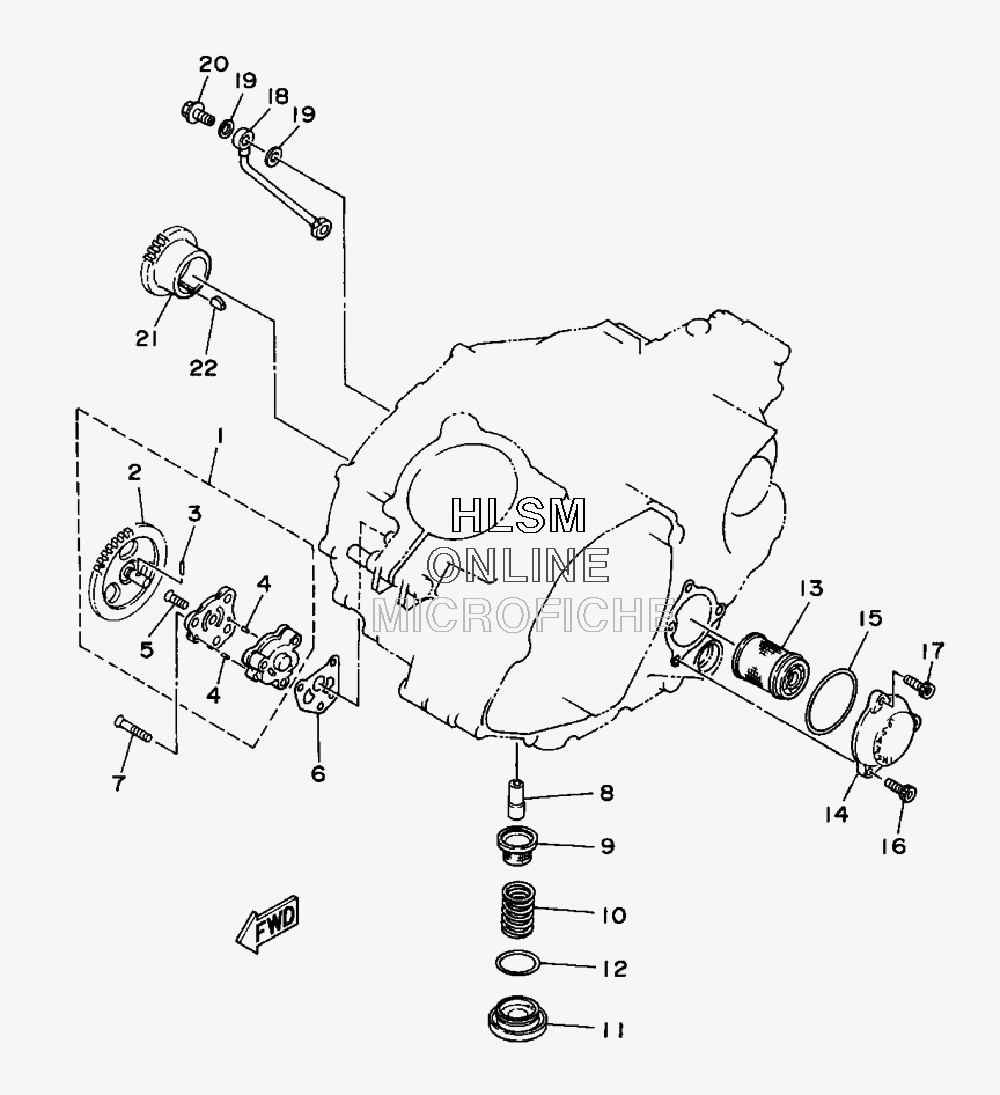

OIL PUMP для Yamaha RAPTOR 350 - 2009 года выпуска
-
№АртикулНазвание
-
11UY-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21UY-13326-00-00 GEAR, PUMP DRIVEN 2GEAR, PUMP DRIVEN 2
-
393603-12030-00 PIN, DOWELPIN, DOWEL
-
493603-07073-00 PIN, DOWELPIN, DOWEL
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
63GD-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
798702-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
82XK-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
951Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1090501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1130X-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1293210-35520-00 O-RINGO-RING
-
131UY-13440-02-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
143GD-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1593210-54175-00 O-RINGO-RING
-
1691312-06020-00 BOLTBOLT
-
1790110-06189-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
181UY-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1990430-08119-00 GASKETGASKET
-
2090401-08004-00 BOLT, UNIONBOLT, UNION
-
211UY-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
2290280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
