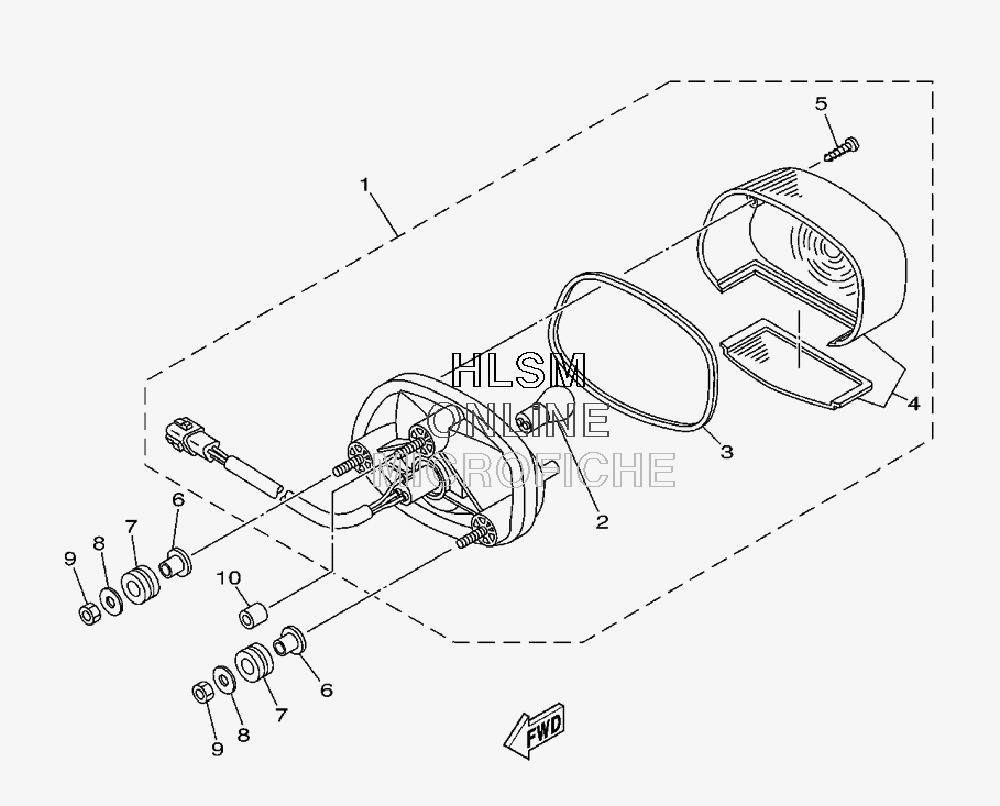

TAILLIGHT для Yamaha RAPTOR 350 - 2009 года выпуска
-
№АртикулНазвание
-
15LP-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
34TR-84723-00-00 GASKET, TAIL LENSGASKET, TAIL LENS
-
44TR-84733-00-00 LENS, TAILLIGHTLENS, TAILLIGHT
-
597706-40620-00 SCREW, TAPPINGSCREW, TAPPING
-
690387-06158-00 COLLARCOLLAR
-
790480-14555-00 GROMMETGROMMET
-
890201-06078-00 WASHER, PLATEWASHER, PLATE
-
995302-06600-00 NUTNUT
-
1090445-09M32-00 HOSE (L9)HOSE (L9)
