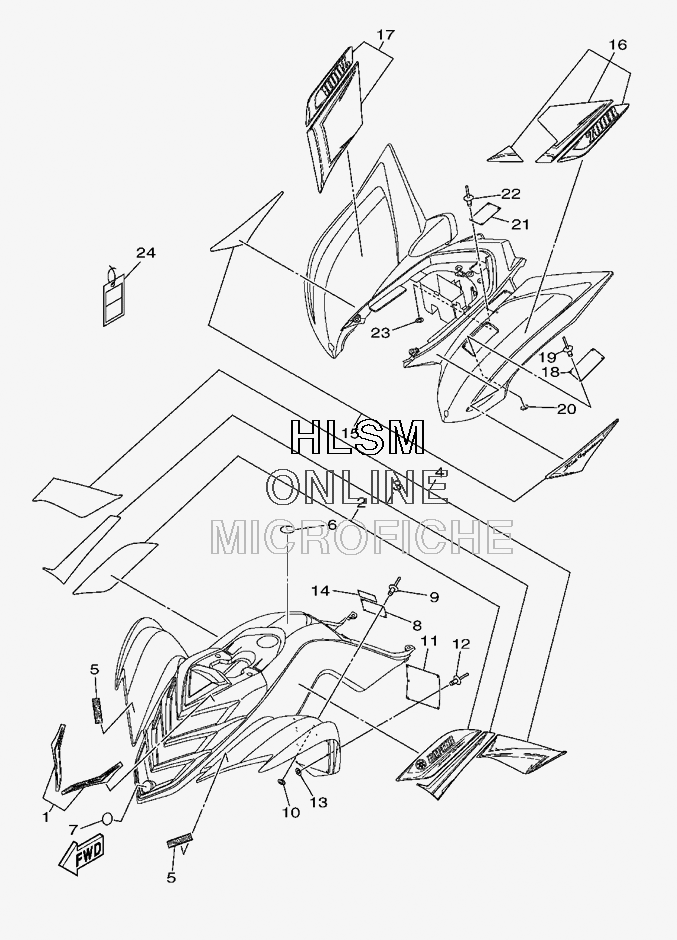

DECALS для Yamaha RAPTOR 700R SE - 2009 года выпуска
-
№АртикулНазвание
-
11S3-2159D-00-00 GRAPHIC SET 4GRAPHIC SET 4
-
21S3-2159A-50-00 GRAPHIC SET 1GRAPHIC SET 1
-
31S3-2159B-40-00 GRAPHIC SET 2GRAPHIC SET 2
-
41S3-2159C-00-00 GRAPHIC SET 3GRAPHIC SET 3
-
53GD-2153E-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
65D3-2164B-00-00 EMBLEM, 3DEMBLEM, 3D
-
75KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
84D3-2816L-00-00 LABEL, WARNING AGELABEL, WARNING AGE
-
990267-32004-00 RIVET, BLINDRIVET, BLIND
-
1090201-03008-00 WASHER, PLATEWASHER, PLATE
-
115FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
1290267-32004-00 RIVET, BLINDRIVET, BLIND
-
1390201-03008-00 WASHER, PLATEWASHER, PLATE
-
144D3-2817J-00-00 PLATE, ANSI SVIAPLATE, ANSI SVIA
-
151S3-2167A-00-00 GRAPHIC SETGRAPHIC SET
-
161S3-21661-00-00 GRAPHIC, RIGHT HAND FENDER COVER (LEFT HANDH)GRAPHIC, RIGHT HAND FENDER COVER (LEFT HANDH)
-
171S3-21662-00-00 GRAPHIC, RIGHT HAND FENDER COVER (RIGHT HANDH)GRAPHIC, RIGHT HAND FENDER COVER (RIGHT HANDH)
-
184D3-2816M-U0-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
1990267-32004-00 RIVET, BLINDRIVET, BLIND
-
2090201-03008-00 WASHER, PLATEWASHER, PLATE
-
215FE-2151H-01-00 LABEL 5LABEL 5
-
2290267-32004-00 RIVET, BLINDRIVET, BLIND
-
2390201-03008-00 WASHER, PLATEWASHER, PLATE
-
245LP-2819R-10-00 TAG, WARNINGTAG, WARNING
