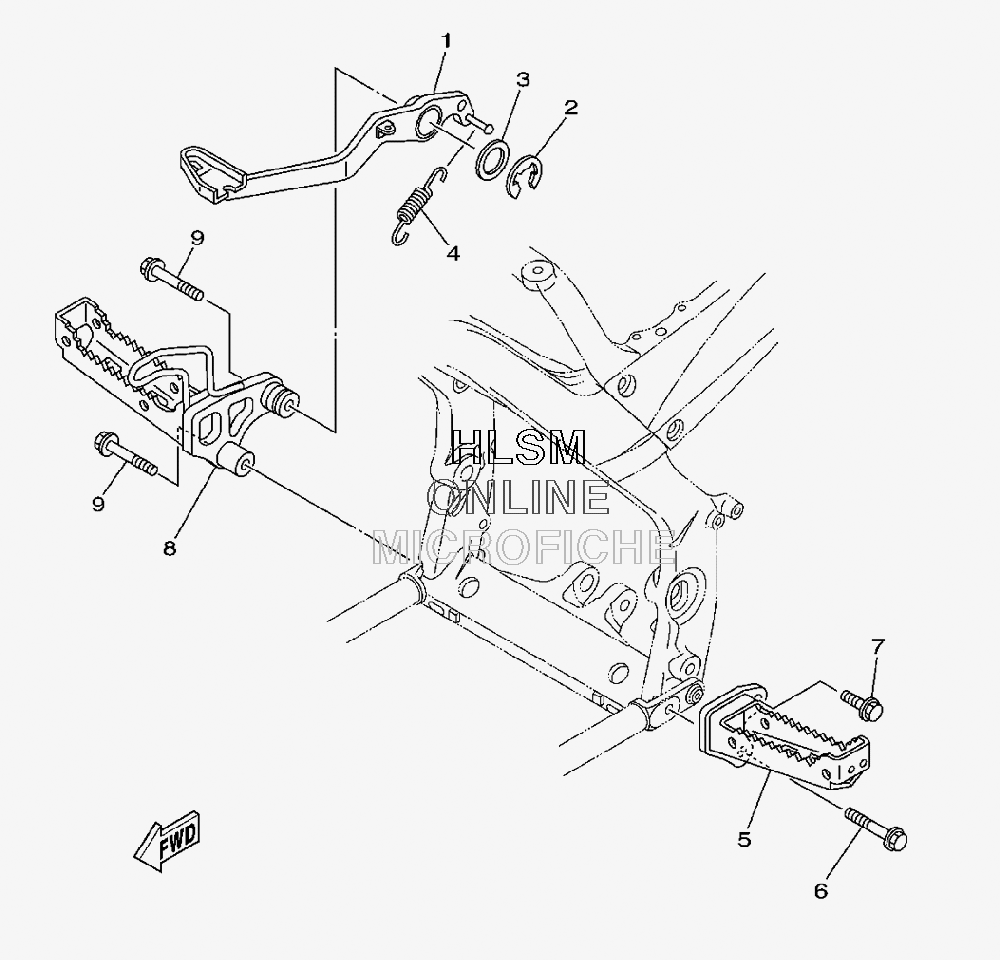

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 700R - 2009 года выпуска
-
№АртикулНазвание
-
11S3-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
293430-23054-00 CIRCLIPCIRCLIP
-
390201-266F6-00 WASHER, PLATEWASHER, PLATE
-
490506-20380-00 SPRING, TENSIONSPRING, TENSION
-
51S3-27411-10-00 FOOTREST 1FOOTREST 1
-
690105-10294-00 BOLT, FLANGEBOLT, FLANGE
-
795812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
81S3-27421-10-00 FOOTREST 2FOOTREST 2
-
990105-10294-00 BOLT, FLANGEBOLT, FLANGE
