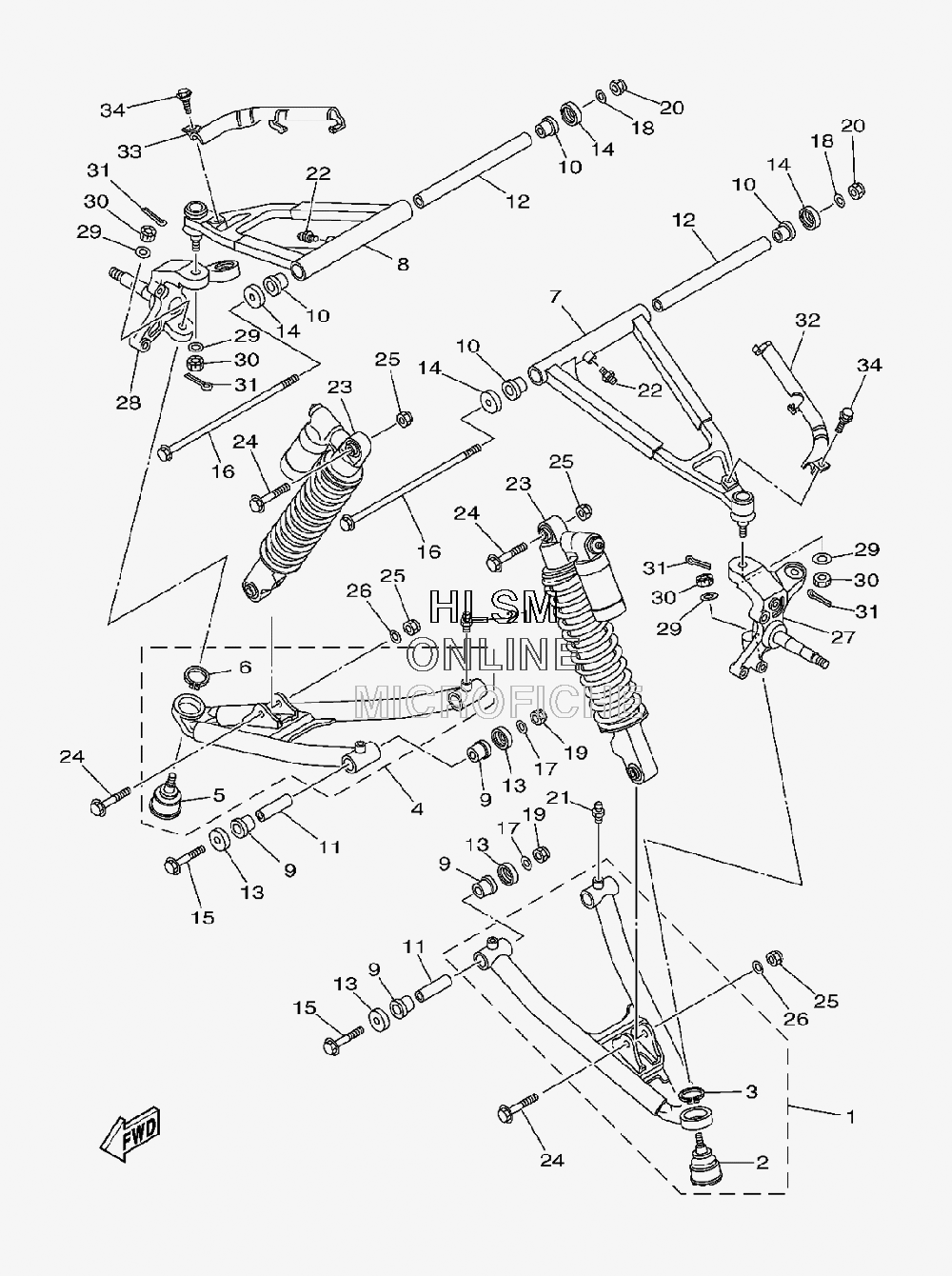

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 700R - 2009 года выпуска
-
№АртикулНазвание
-
15TG-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
399009-30400-00 CIRCLIPCIRCLIP
-
45TG-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
55LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
699009-30400-00 CIRCLIPCIRCLIP
-
75TG-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
85TG-23550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
990381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1190387-101R3-00 COLLARCOLLAR
-
1290387-100Y6-00 COLLARCOLLAR
-
135YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
145YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1590105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-10132-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10037-00 WASHER, PLATEWASHER, PLATE
-
1890201-10037-00 WASHER, PLATEWASHER, PLATE
-
1990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
231S3-23350-D0-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2490105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
2590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690201-10035-00 WASHER, PLATEWASHER, PLATE
-
271S3-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
281S3-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2990209-10229-00 WASHERWASHER
-
3090171-10001-00 NUT, CASTLENUT, CASTLE
-
3191402-20020-00 PIN, COTTERPIN, COTTER
-
325TG-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
335TG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3490109-067F4-00 BOLTBOLT
