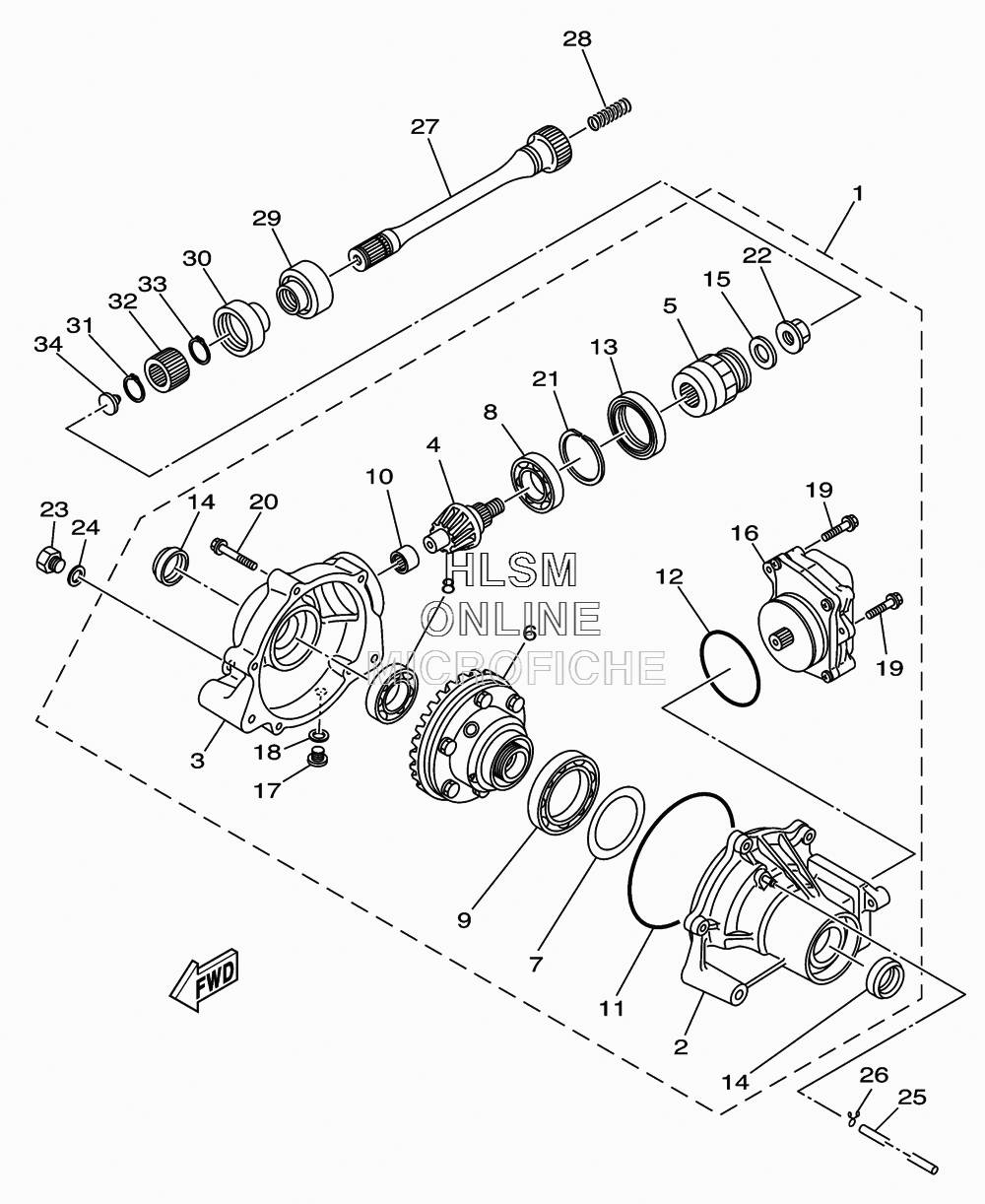

DIFFERENTIAL - FRONT для Yamaha 700 FI EPS 4WD SPECIAL EDITION - 2010 года выпуска
-
№АртикулНазвание
-
13B4-46160-10-00 FRONT AXLE GEAR CASEFRONT AXLE GEAR CASE
-
23B4-46162-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
33B4-46161-00-00 HOUSING, SHAFT DRIVE 2HOUSING, SHAFT DRIVE 2
-
43B4-46141-00-00 PINION, DRIVE 2PINION, DRIVE 2
-
53B4-67839-10-00 CUPLINGCUPLING
-
63B4-46470-01-00 LIMITED SLIP DIFF. ASSYLIMITED SLIP DIFF. ASSY
-
73B4-46117-00-00 SHIM, RING GEAR (0.1T)SHIM, RING GEAR (0.1T)
-
73B4-46117-20-00 SHIM, RING GEAR (0.3T)SHIM, RING GEAR (0.3T)
-
73B4-46117-30-00 SHIM, RING GEAR (0.4T)SHIM, RING GEAR (0.4T)
-
73B4-46117-10-00 SHIM, RING GEAR (0.2T)SHIM, RING GEAR (0.2T)
-
893306-00613-00 BEARINGBEARING
-
93B4-46164-00-00 BEARING 1BEARING 1
-
103B4-46166-00-00 BEARING 3BEARING 3
-
113B4-46134-00-00 O-RING 1O-RING 1
-
123B4-46135-00-00 O-RING 2O-RING 2
-
1393105-46001-00 OIL SEALOIL SEAL
-
143B4-46163-00-00 SEAL, OIL 1SEAL, OIL 1
-
153B4-47359-00-00 WASHERWASHER
-
163B4-4616A-00-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
1790340-10001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1890430-10003-00 GASKETGASKET
-
1995812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2095812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
213B4-46142-00-00 RING,HOLE SNAP 1RING,HOLE SNAP 1
-
224WV-46145-10-00 NUT 1NUT 1
-
2390340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
24214-11198-01-00 GASKETGASKET
-
2590445-070F1-00 HOSE (L950)HOSE (L950)
-
2690467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
273B4-46173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
2890501-18002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
295KM-46137-00-00 SEAL 2SEAL 2
-
305KM-46136-00-00 SEAL 1SEAL 1
-
3199009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
325KM-46126-00-00 COUPLINGCOUPLING
-
3393410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
345KM-46559-00-00 DAMPERDAMPER
