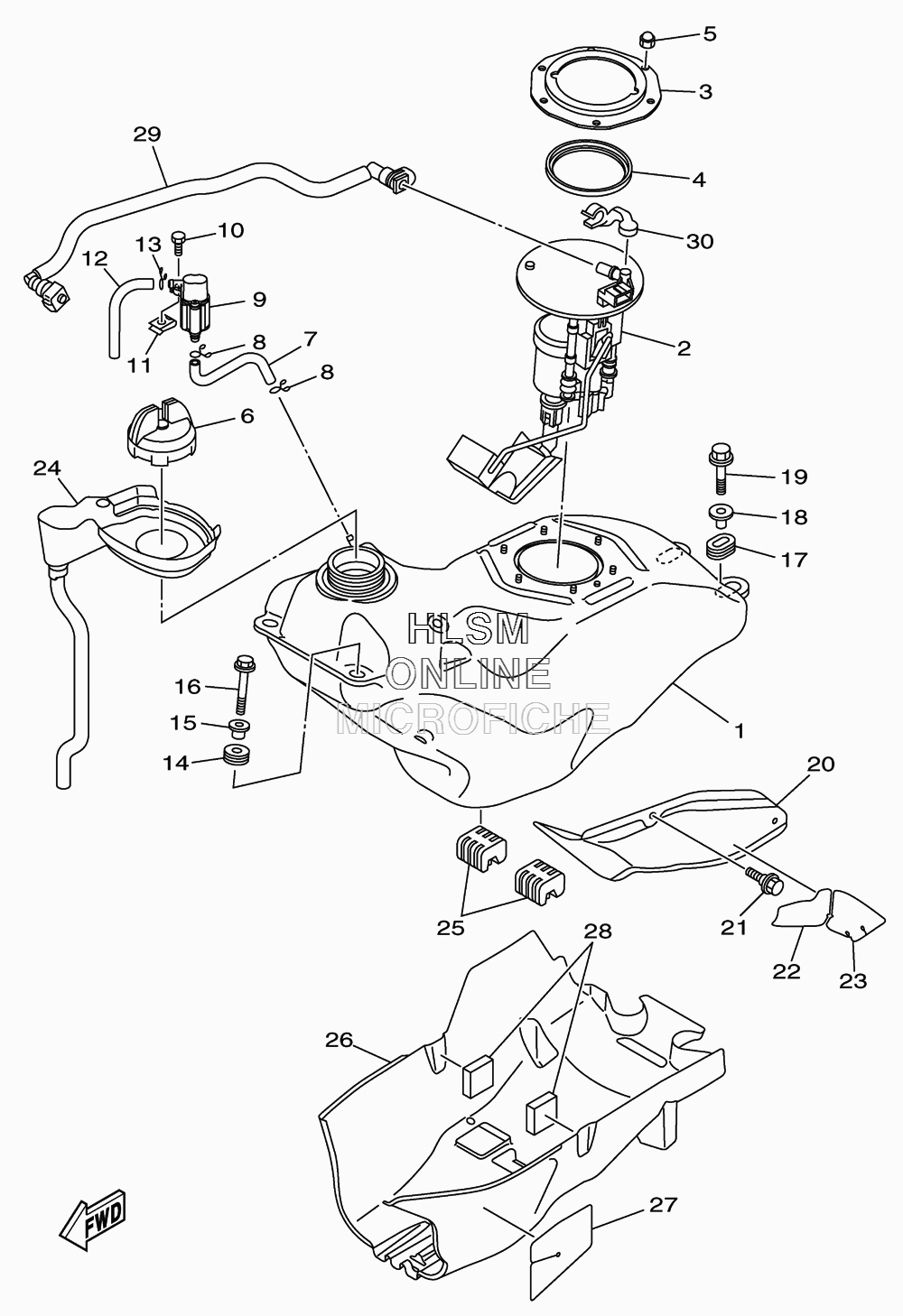

FUEL TANK для Yamaha 700 FI EPS 4WD SPECIAL EDITION - 2010 года выпуска
-
№АртикулНазвание
-
13B4-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
23B4-13907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
33B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
41S3-24486-00-00 O-RINGO-RING
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
63B4-24610-00-00 CAP ASSYCAP ASSY
-
73B4-24312-00-00 PIPE 2PIPE 2
-
890467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
928P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
1097002-06016-00 BOLTBOLT
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290445-09068-00 HOSE (L110)HOSE (L110)
-
1390467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1490480-18290-00 GROMMETGROMMET
-
1590387-066J1-00 COLLARCOLLAR
-
1695802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1790480-01400-00 GROMMETGROMMET
-
1890387-07021-00 COLLARCOLLAR
-
1995802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
2190109-06172-00 BOLTBOLT
-
223B4-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
233B4-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
243B4-2414F-00-00 COVER, FILLER COMP.COVER, FILLER COMP.
-
253B4-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
263B4-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
273B4-2416G-00-00 INSULATOR, FUEL TANK 2INSULATOR, FUEL TANK 2
-
283B4-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
293B4-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090464-14004-00 CLAMPCLAMP
