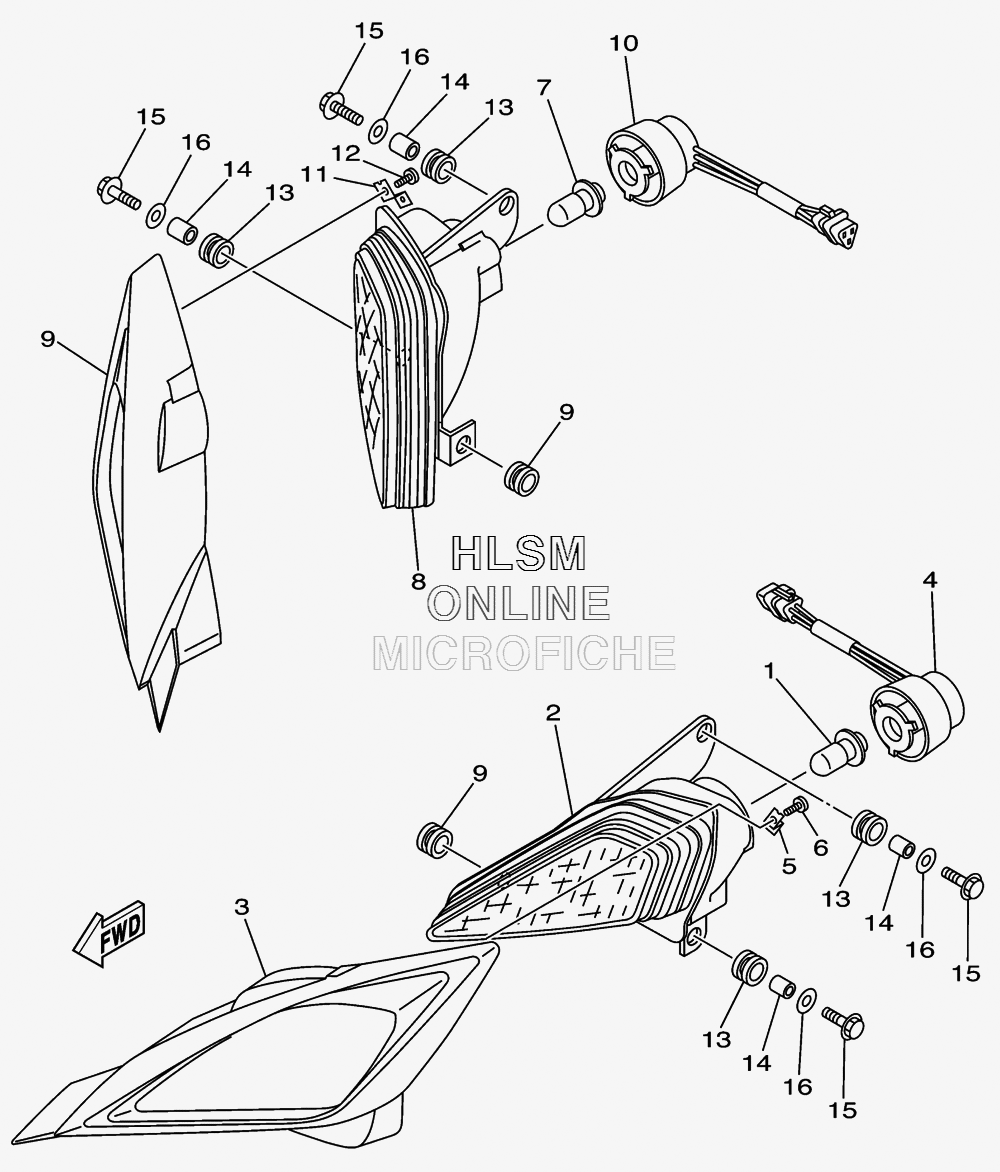

HEADLIGHT для Yamaha RAPTOR 700 SPECIAL EDITION - 2010 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25TG-84110-03-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
31S3-84165-00-00 RIM, HEADLIGHT COVER 1RIM, HEADLIGHT COVER 1
-
45TG-84140-01-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
51S3-8413J-00-00 PLATE, FITTINGPLATE, FITTING
-
697707-30510-00 SCREW, TAPPINGSCREW, TAPPING
-
74KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
85TG-84310-03-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
91S3-84166-00-00 RIM, HEADLIGHT COVER 2RIM, HEADLIGHT COVER 2
-
105TG-84340-01-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
111S3-8413J-00-00 PLATE, FITTINGPLATE, FITTING
-
1297707-30510-00 SCREW, TAPPINGSCREW, TAPPING
-
1390480-14102-00 GROMMETGROMMET
-
1490387-07598-00 COLLARCOLLAR
-
1595812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06078-00 WASHER, PLATEWASHER, PLATE
