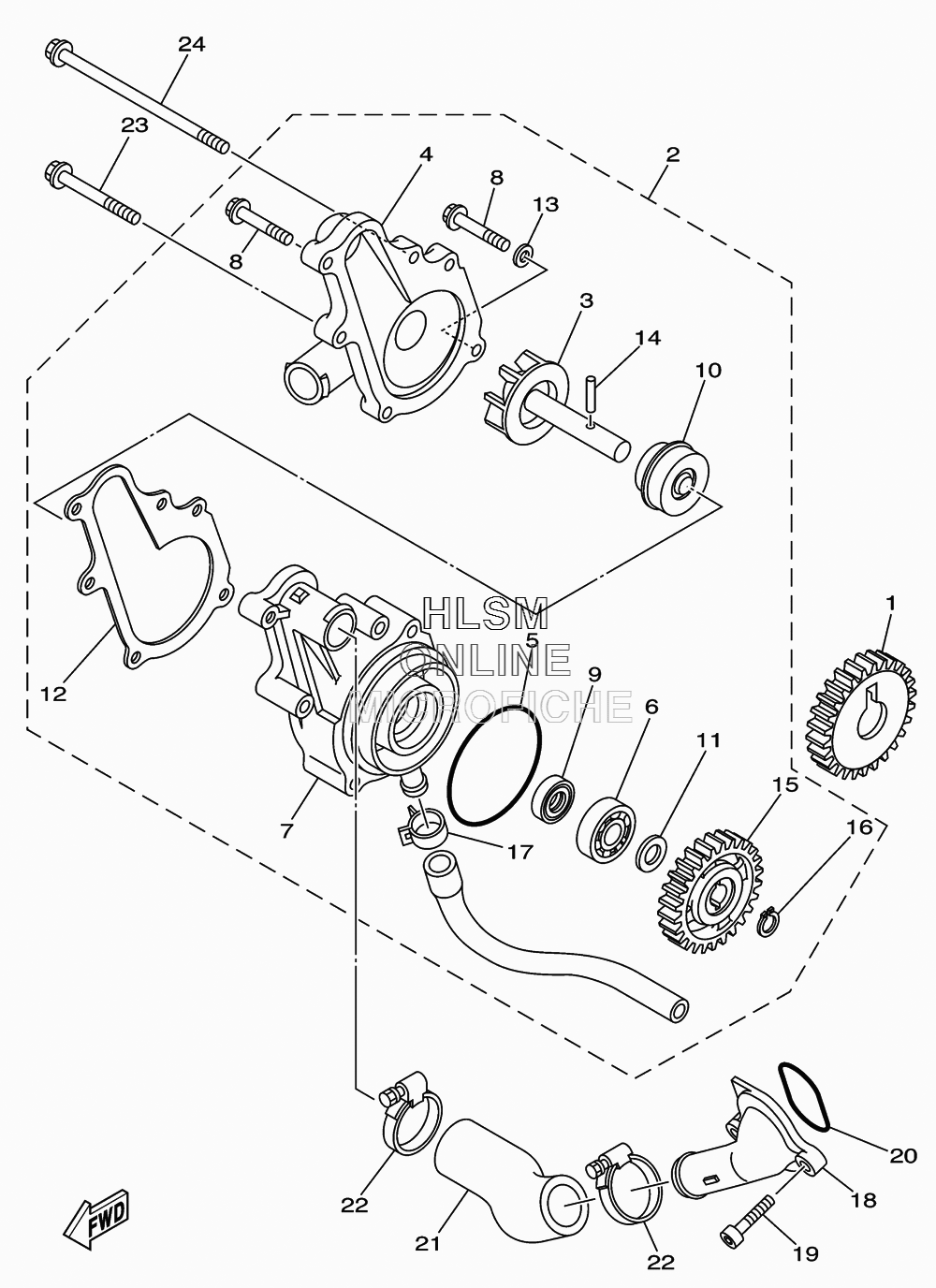

WATER PUMP ASSY для Yamaha RAPTOR 700 SPECIAL EDITION - 2010 года выпуска
-
№АртикулНазвание
-
11S3-12436-00-00 GEAR, DRIVEGEAR, DRIVE
-
21S3-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
31S3-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
41S3-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
593210-61750-00 O-RINGO-RING
-
693306-00106-00 BEARINGBEARING
-
71S3-12421-00-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
993101-12173-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
104C8-12438-00-00 SEAL, MECHANICALSEAL, MECHANICAL
-
1190201-12541-00 WASHER, PLATEWASHER, PLATE
-
121S3-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
1390430-06014-00 GASKETGASKET
-
1493603-16219-00 PIN, DOWELPIN, DOWEL
-
155VK-12459-00-00 GEAR, IMPELLER SHAFTGEAR, IMPELLER SHAFT
-
1699009-12400-00 CIRCLIPCIRCLIP
-
1790467-13062-00 CLIPCLIP
-
181S3-12469-00-00 JOINT 1JOINT 1
-
1991312-06020-00 BOLTBOLT
-
2093210-33786-00 O-RINGO-RING
-
211S3-12577-00-00 HOSE 2HOSE 2
-
2290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2395022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
2495022-06110-00 BOLT, FLANGEBOLT, FLANGE
