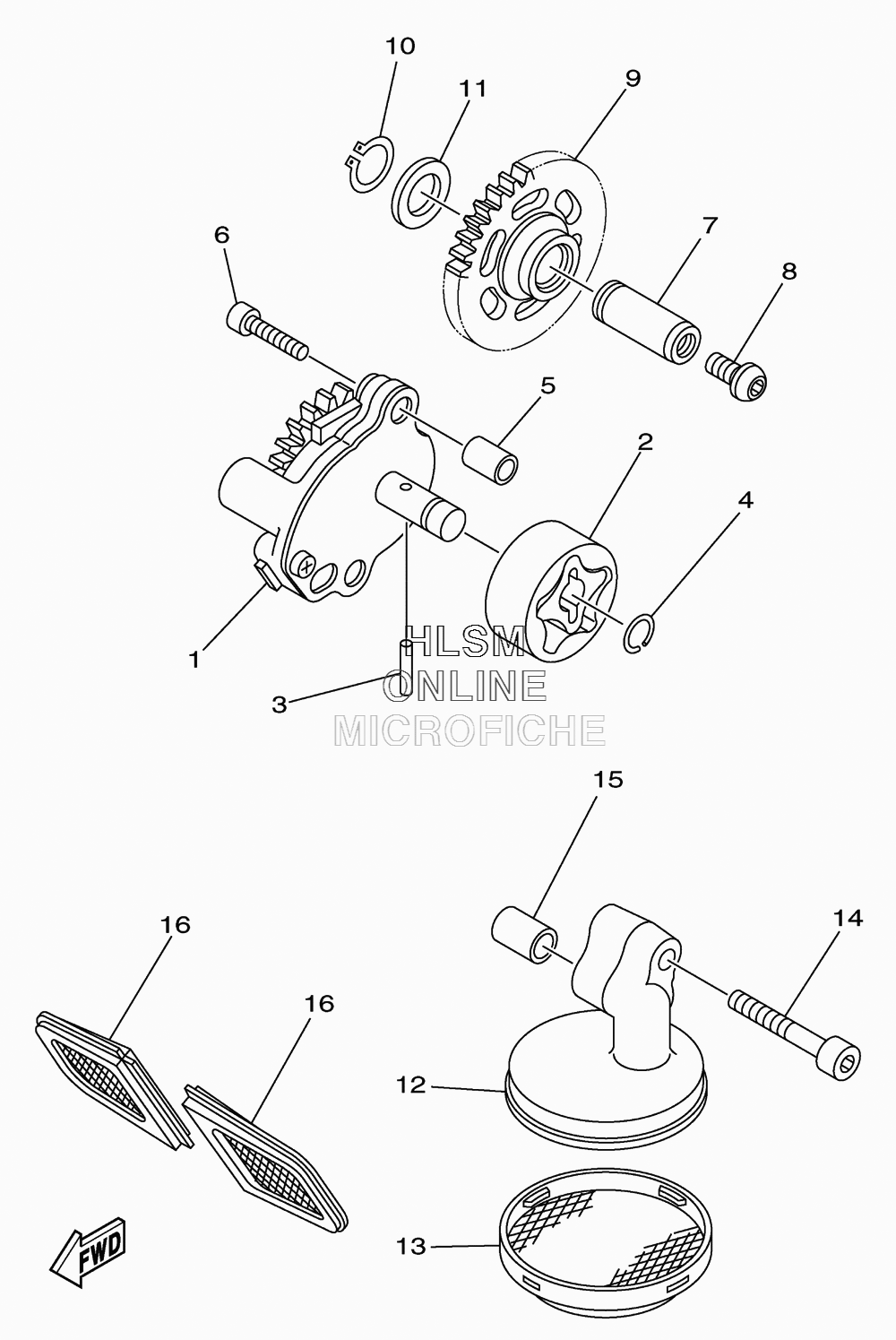

OIL PUMP для Yamaha YFZ450X - 2010 года выпуска
-
№АртикулНазвание
-
118P-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25TA-13320-00-00 ROTOR ASSY 2ROTOR ASSY 2
-
393603-16219-00 PIN, DOWELPIN, DOWEL
-
493440-10153-00 CIRCLIPCIRCLIP
-
599530-08012-00 PIN, DOWELPIN, DOWEL
-
691312-06030-00 BOLTBOLT
-
72S2-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
890149-06069-00 SCREWSCREW
-
918P-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
1099009-12400-00 CIRCLIPCIRCLIP
-
1190201-12166-00 WASHER, PLATEWASHER, PLATE
-
1218P-13412-01-00 HOUSING, STRAINERHOUSING, STRAINER
-
1318P-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1490110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1599530-10114-00 PIN, DOWELPIN, DOWEL
-
1618P-13421-00-00 STRAINER 2STRAINER 2
